Von Duprin

Von Duprin 35A-EO Narrow Stile Rim Exit Device

$1,381.38
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty ANSI/BHMA Certified Grade-1
  • Typically used with aluminum doors
  • Fits door stiles as narrow as 1-3/4"

Available Options:

Clear

Product Overview

Von Duprin 35AEO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging

The 33/35 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33/35 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • EO = Exit Only, ANSI Function 01 (33A/35A Series Outside Trim Sold Separately)
  • For use with single doors or double doors with mullions
  • Deadlocking latchbolt standard
  • Stock Sizes: 3' and 4' - can be cut to size in the field

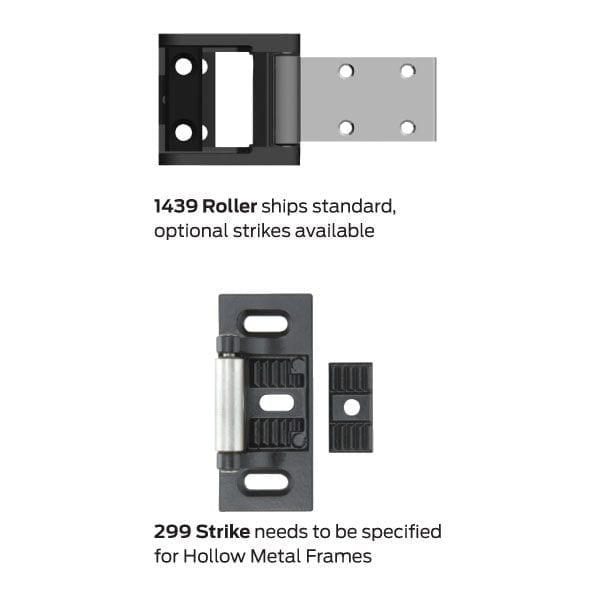

  • 1439 Strike Standard
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US19 (315) Flat Black, 313 Duranodic Dark Bronze

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Usage

Heavy Duty

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Fire-Rating

Non-Fire-Rated

Hand

Non-handed

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Half turn hex dogging standard

Stile Type

Narrow

Stile

1-3/4" Minimum

Strikes

1439 Standard

Buy American Act Compliance

Meets Buy American Act - Made in USA
