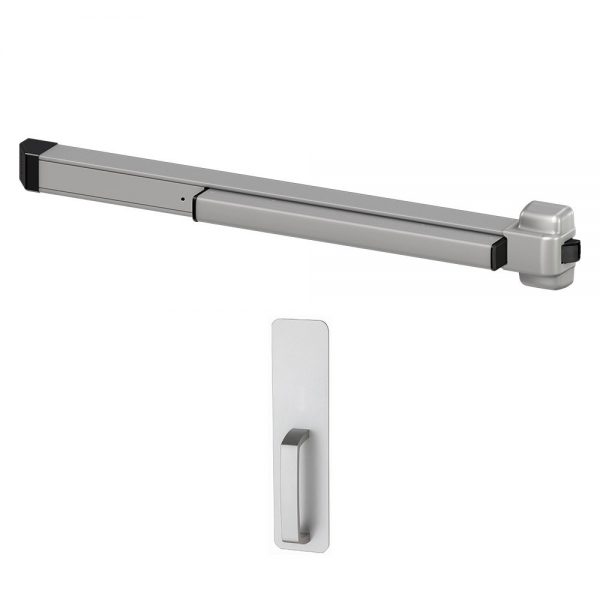

Von Duprin 22DT Rim Panic Bar Exit Device with Dummy Pull

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified – Made in USA
  • ANSI Function 02 (Pull when Dogged)
  • Includes 230DT Dummy Pull

Available Options:

Von Duprin 22DT Grade-1 Rim Exit Device with Trim, Dummy Pull

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware.

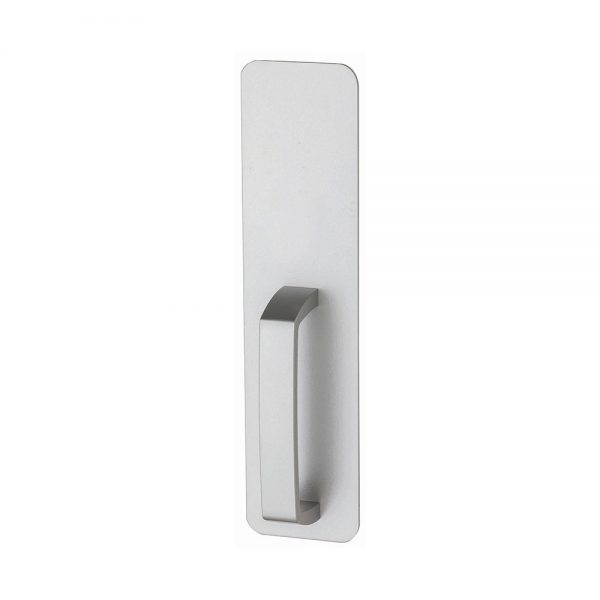

230DT Dummy Pull Trim

  • ANSI Function: 02
  • Escutcheon plate size: 3″ x 12-1/16″ x 3/32″
  • Projection: 2″
  • Pull center to center: 5″

Brand

Finishes

622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

230DT Dummy Pull

Hand

Non-handed

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Half turn hex dogging standard

Strike

299 roller strike standard

Stile Type

Wide (Standard)

Fire Rating

Non-Fire-Rated

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von_Duprin_22_Rim_Device_Installation_Instructions Von_Duprin_230DT_EO__NL_Trim_Installation_Instructions
