Von Duprin

Von Duprin 2227EO LBR Surface Vertical Rod Panic Exit Device, Less Bottom Rod

$570.77
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • LBR, Less bottom rod
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

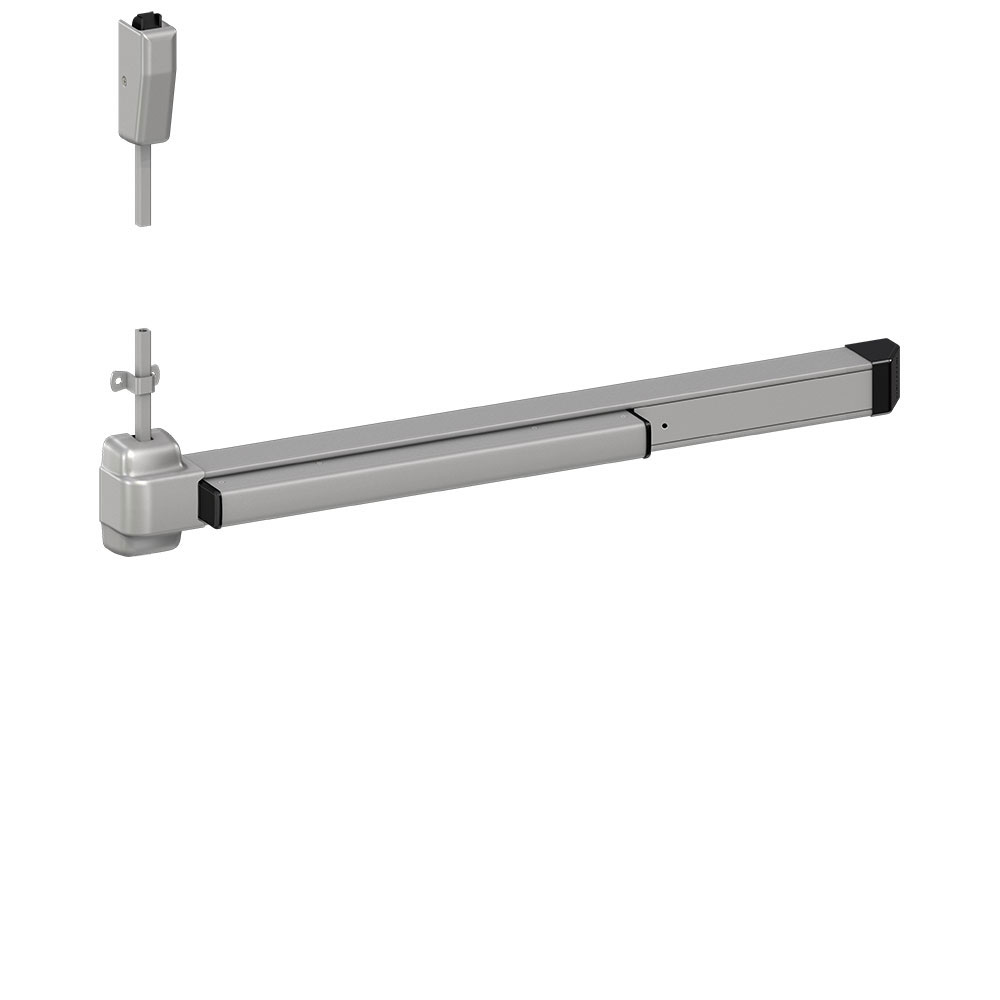

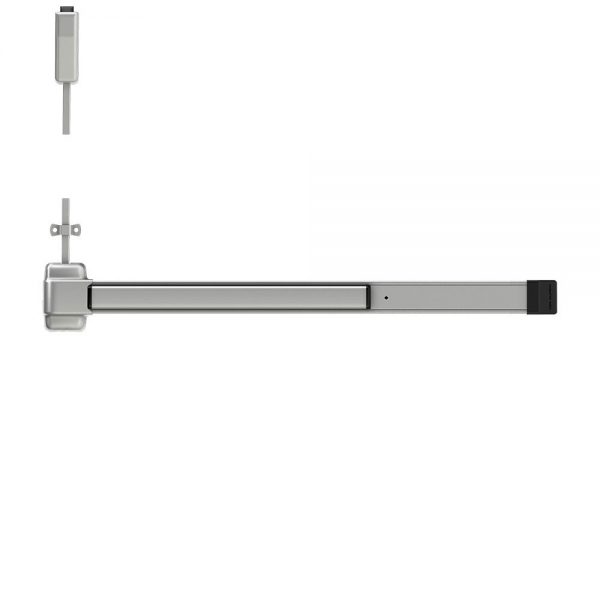

Von Duprin 2227EO LBR Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less Bottom Rod, Panic Rated, Hex Key Dogging, Field Reversible, 84" Door Height

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

  • Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
  • LBR = Less Bottom Rod
  • ANSI A156.3, Grade-1 certified
  • UL listed for Panic Hardware
  • Standard Sizes: 3' x 7', 4' x 7' (top extension rods available for doors up to 10')
  • Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)

Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Device Type

LBR (Less Bottom Rod) Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Fire-Rating

None

Door Height

7'0" (Standard)

Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0")

Handing

Completely Reversible

Dogging Feature

Half turn hex dogging standard

Latchbolt

Deadlatching, 3/4" throw

Stile Type

Wide (Standard)

Projections

3-3/4" Maximum, 3" Dogged

Strikes

299 top strike

Buy American Act Compliance

Meets Buy American Act - Made in USA
