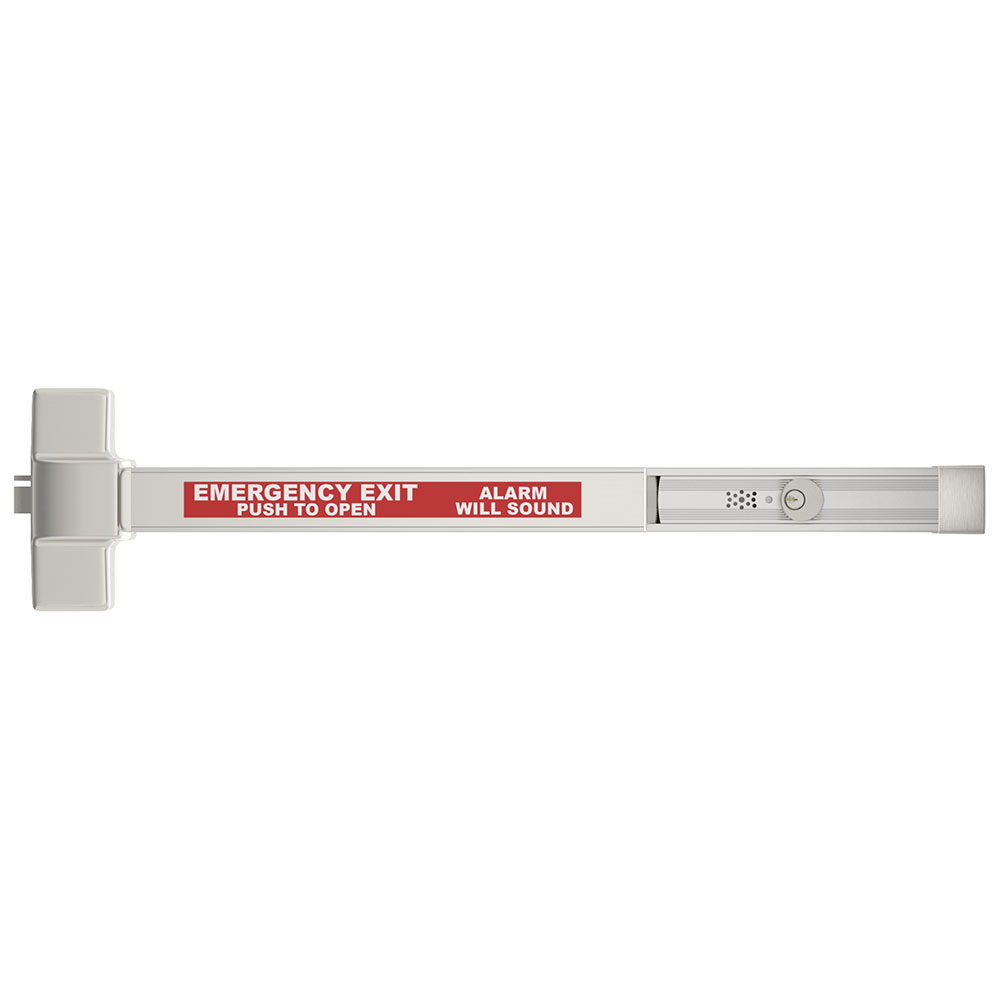

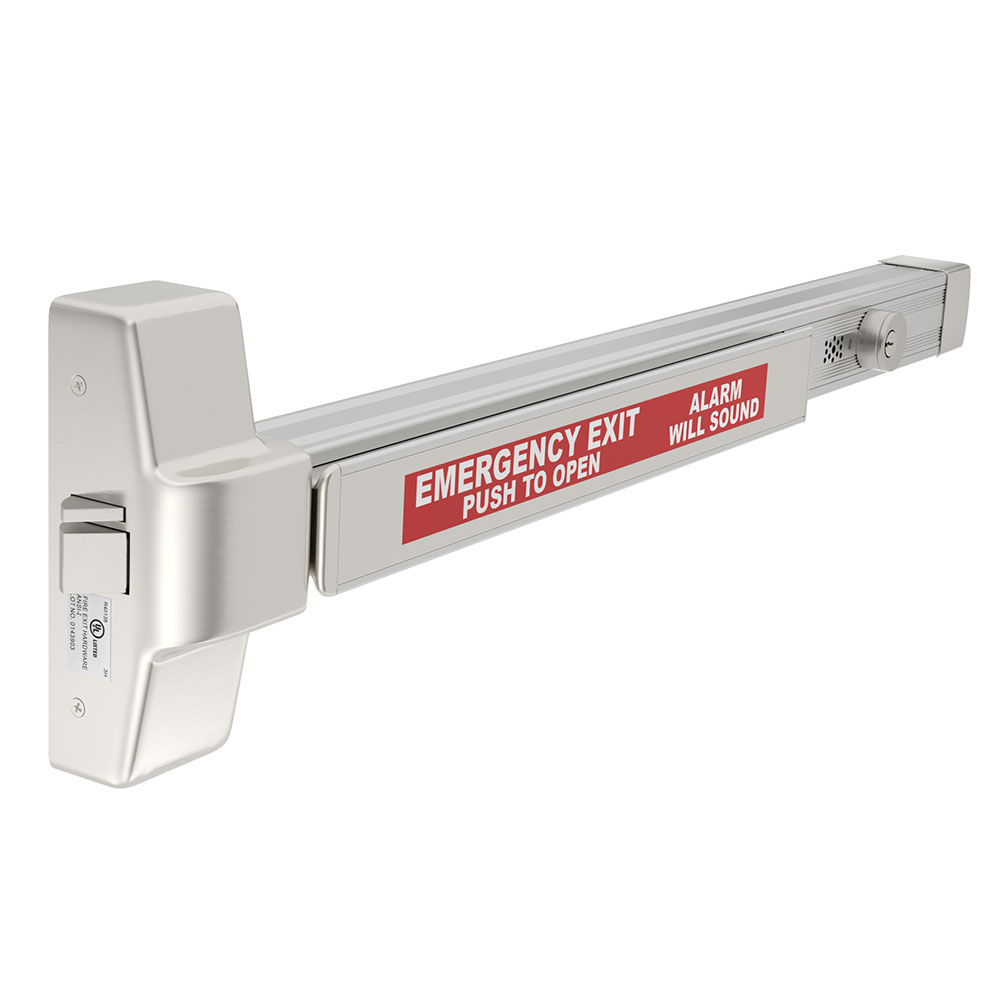

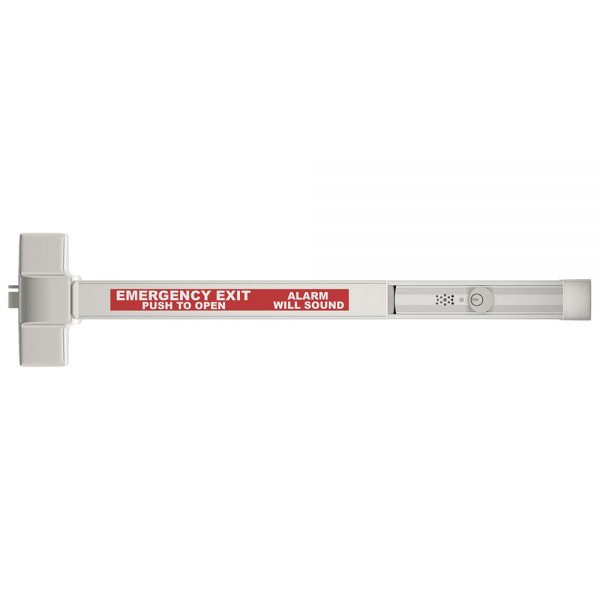

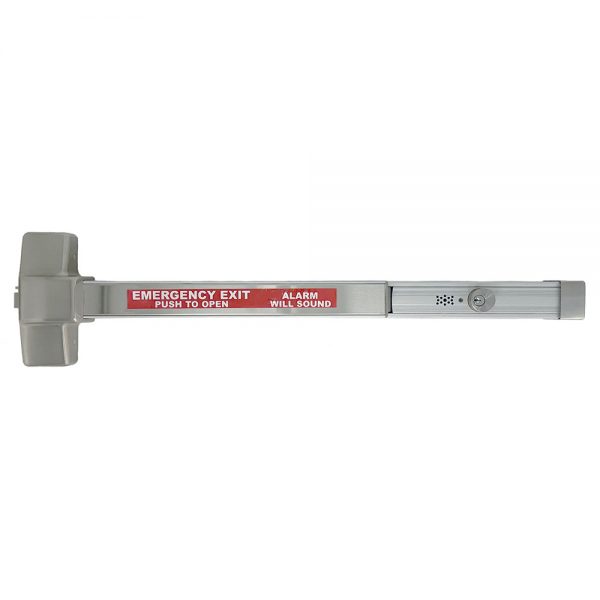

Trudoor TDE-ALK-1000R Heavy-Duty Alarmed Rim Exit Device

Usually Ships: 1-2 Business Days
  • Helps prevent unauthorized use of an emergency exit door
  • 90db alarm – powered by standard 9-volt battery (included)
  • Alarm is activated when push bar is depressed

Available Options:

Trudoor TDE-ALK-1000R Heavy-Duty Grade-1 Rim Exit Device, Battery Powered Alarm Kit Installed, Panic Rated, Exit Only

The TDE-ALK-1000R is designed for primary and secondary exits that require an alarmed panic device. A 90-decibel alarm will sound when someone attempts to exit, alerting management to the unauthorized exit.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

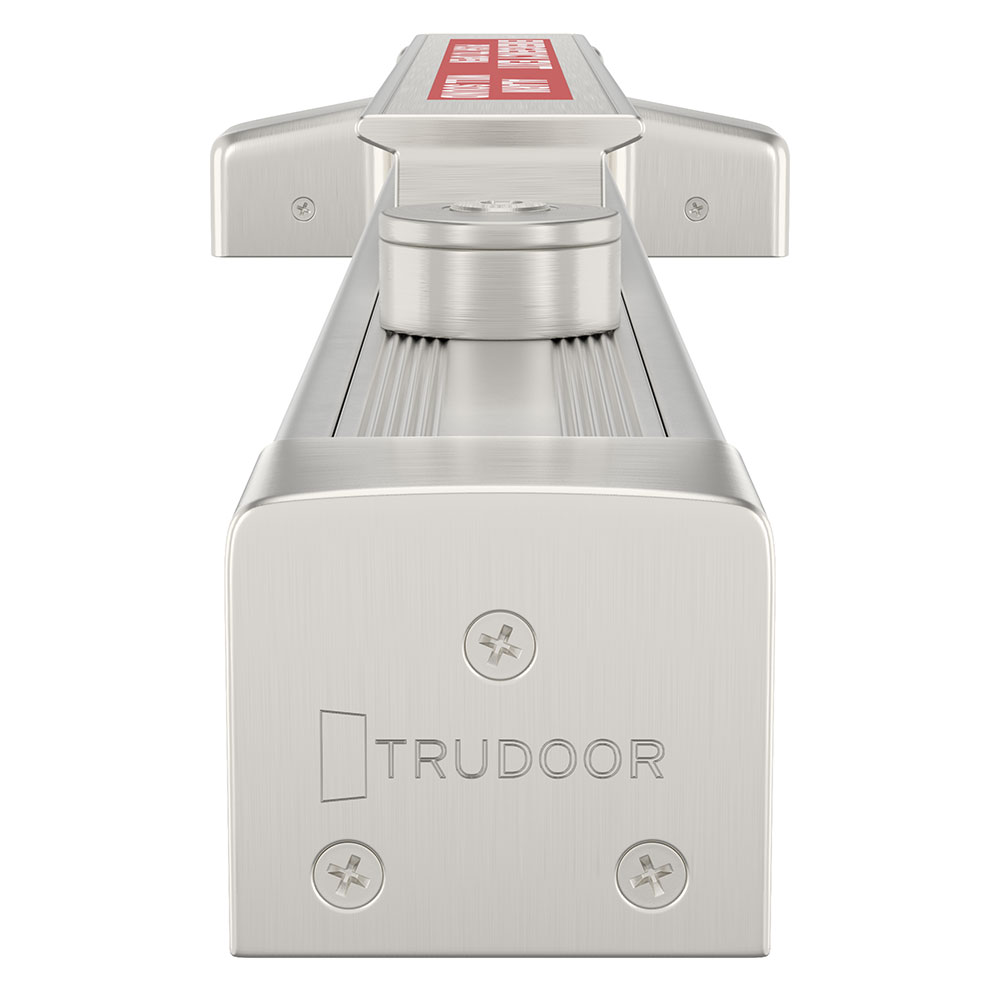

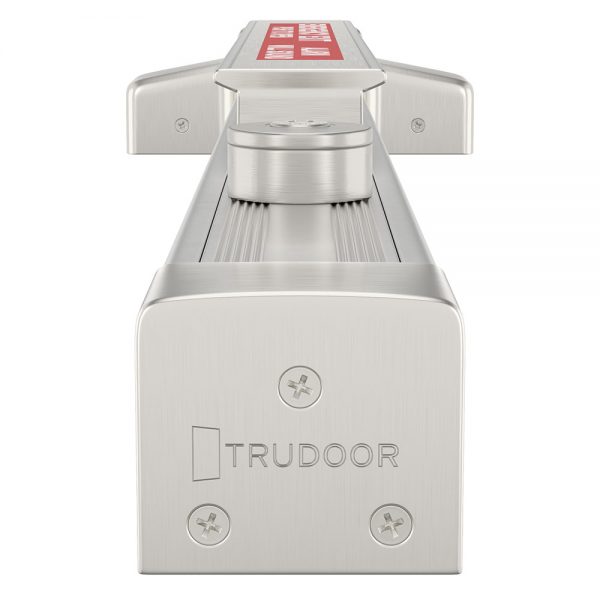

  • Steel chassis, center case cover, push pad, and end cap
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ALK Alarm Kit

  • Factory installed
  • Alarm is armed/disarmed by turning key in the mortise cylinder (cylinder included – Schlage C keyway)
  • LED flashes green every 30 seconds to indicate alarm is in armed position
  • Alarm is activated when push bar is depressed
  • Alarm can be bypassed by trim/key from the outside
  • 9 Volt battery, life approximately 1 year – Low battery alert indicated by red flash & chirp every 5 seconds
  • Decibel Rating: Approximately 90 decibels at 15 feet

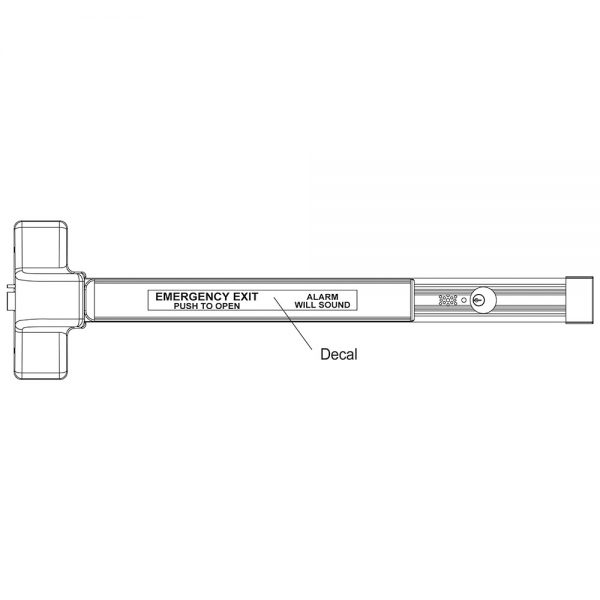

  • Includes 9-Volt Battery and “Emergency Exit” Sticker for touchpad or door face

ul-listed





Brand

Finishes

US32D (630) Satin Stainless Steel

Length

3ft (for doors 2'8" to 3'0"), 4ft (for doors 3'4" to 4'0")

Electric Options

Alarm Kit

Cylinder

1-1/8″ Mortise Cylinder with Straight Cam (included) – 6-Pin, Schlage C Keyway, Includes Two Keys

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

UL Listed for Panic Exit Hardware

Fire Rating

Non-Fire-Rated

Trim

None – Exit Only (Outside Trim Sold Separately)

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

None

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Limited Lifetime Warranty
