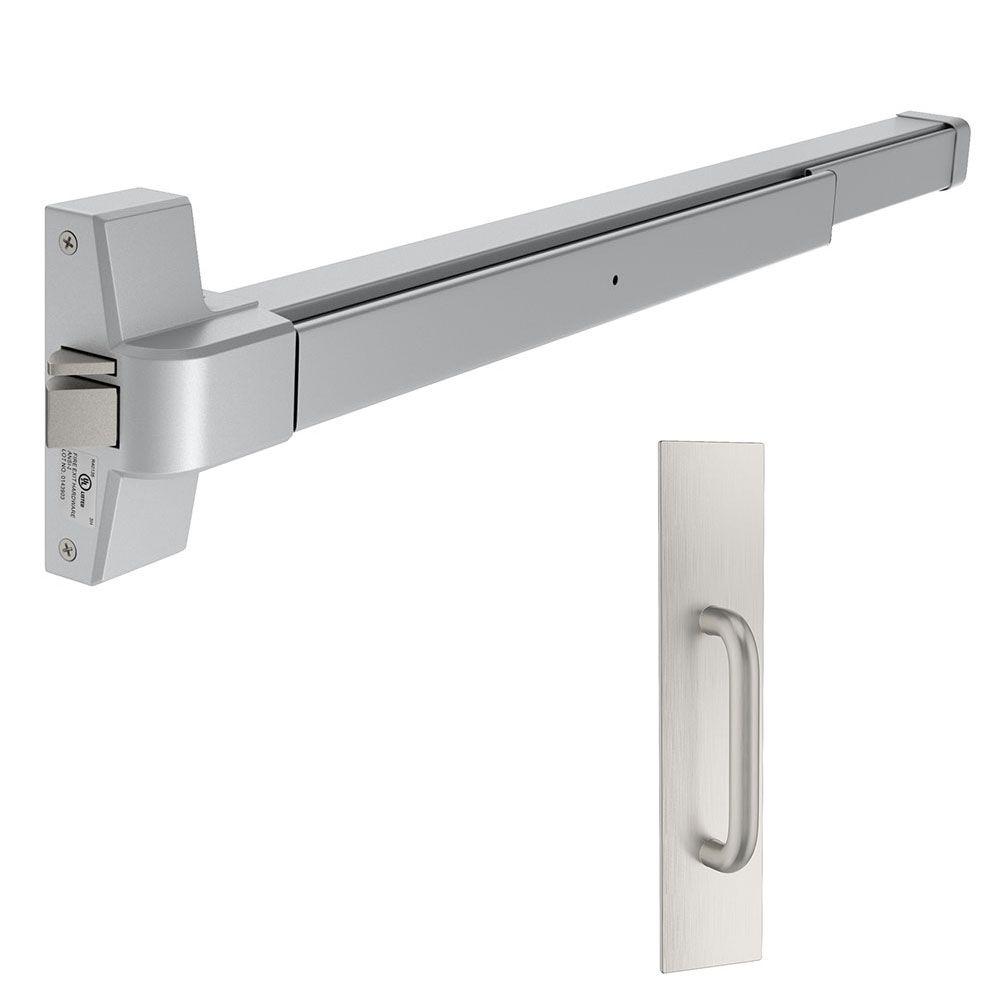

Trudoor TDE-2000R-DT Rim Exit Device with Heavy-Duty Dummy Pull Trim

Usually Ships: Same Day
  • TDE-2000R with Dummy Pull (pull when dogged)
  • Non-handed and reversible for easy installation
  • For use w/ 1-3/4″ thick metal or wood doors

Available Options:

Product Overview

Trudoor TDE-2000R-NL Grade-1 Rim Exit Device with TDE-DT Dummy Pull Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function: 02 (Pull when dogged)
  • UL Listed for Panic Exit Hardware
  • DT pull is an ideal choice for high use doors that will be dogged down for push/pull applications
  • The Pull thru-bolts to head of exit device
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
Brand

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Finishes

SP28/AL Aluminum Device – US32D (630) Stainless Steel Pull
ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
UL Listings

UL Listed for Panic Exit Hardware
Fire Rating

None
Trim

TDE-DT (Dummy Pull)
Escutcheon Plate Size

3″ Wide x 13-7/8″ Height x 1/16″ thick
Pull

3/4″ diameter hollow x 6-1/4″ CTC x 2-7/16″ projection
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Non Handed – Completely Reversible
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case

1-5/8″ Height x 1-13/16″ Wide
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
