Trudoor TD-TAST Surface-Mounted T-Shaped Astragal with Vinyl Insert

Usually Ships: Same Day

For outswinging double doors
Seals against smoke, sound, light, drafts, and insects
Air infiltration tested, fire-rated

Available Options:

Finish

Length

Clear

Quantity:

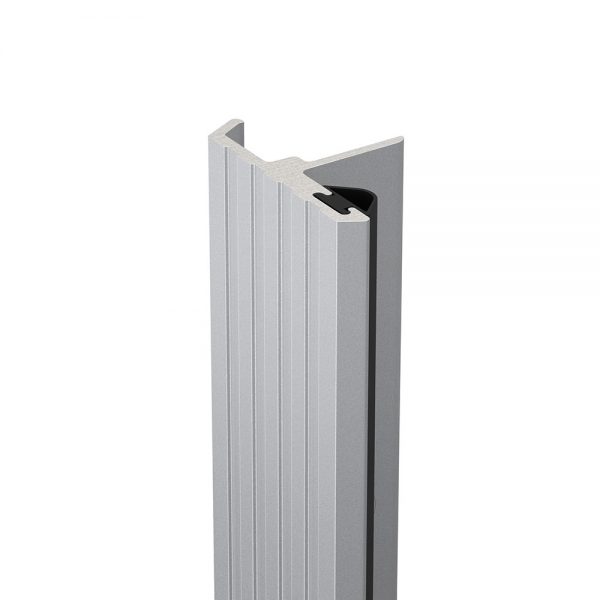

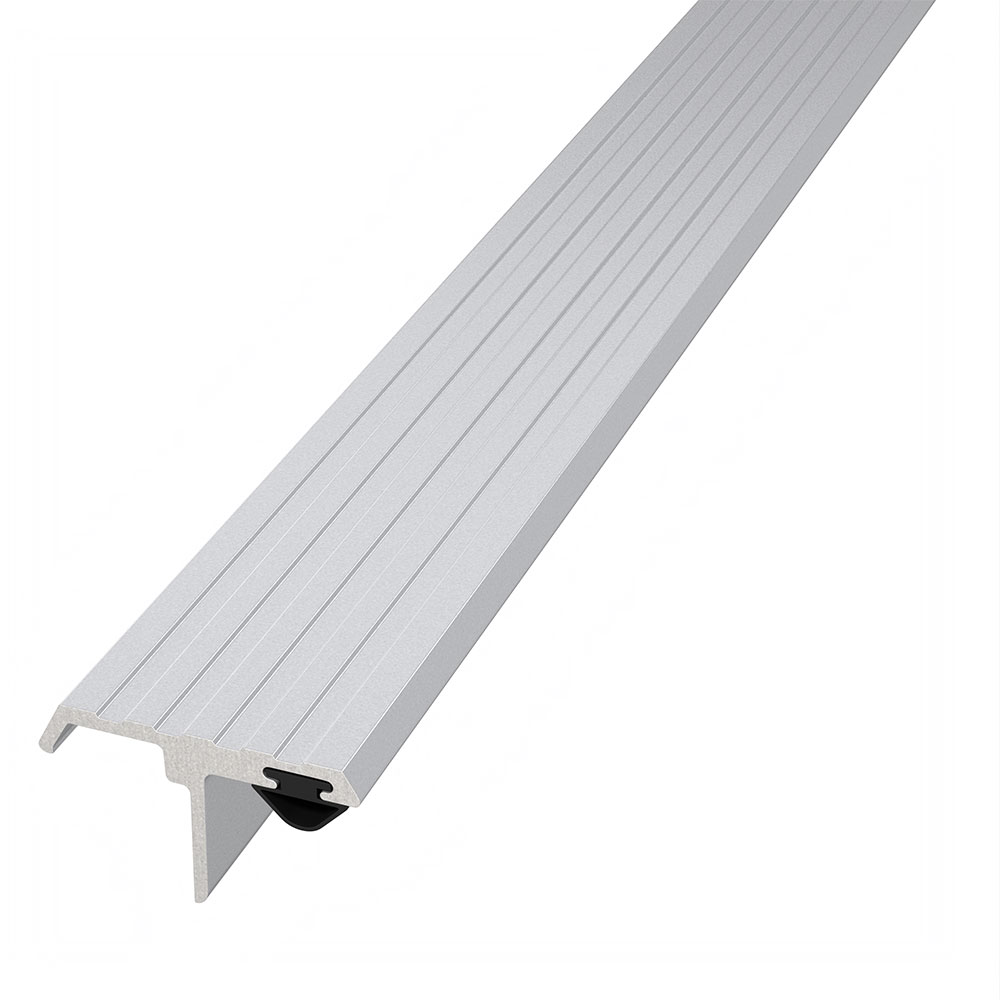

Trudoor TD-TAST Surface-Mounted “T” Astragal with Vinyl Insert, Mill Finish Aluminum

TAST is a surface-mounted, T-shaped Astragal designed for single active double doors with a vinyl insert. It seals the gap between the doors, preventing infiltration of smoke, sound, light, drafts, and insects.

Surface mounted

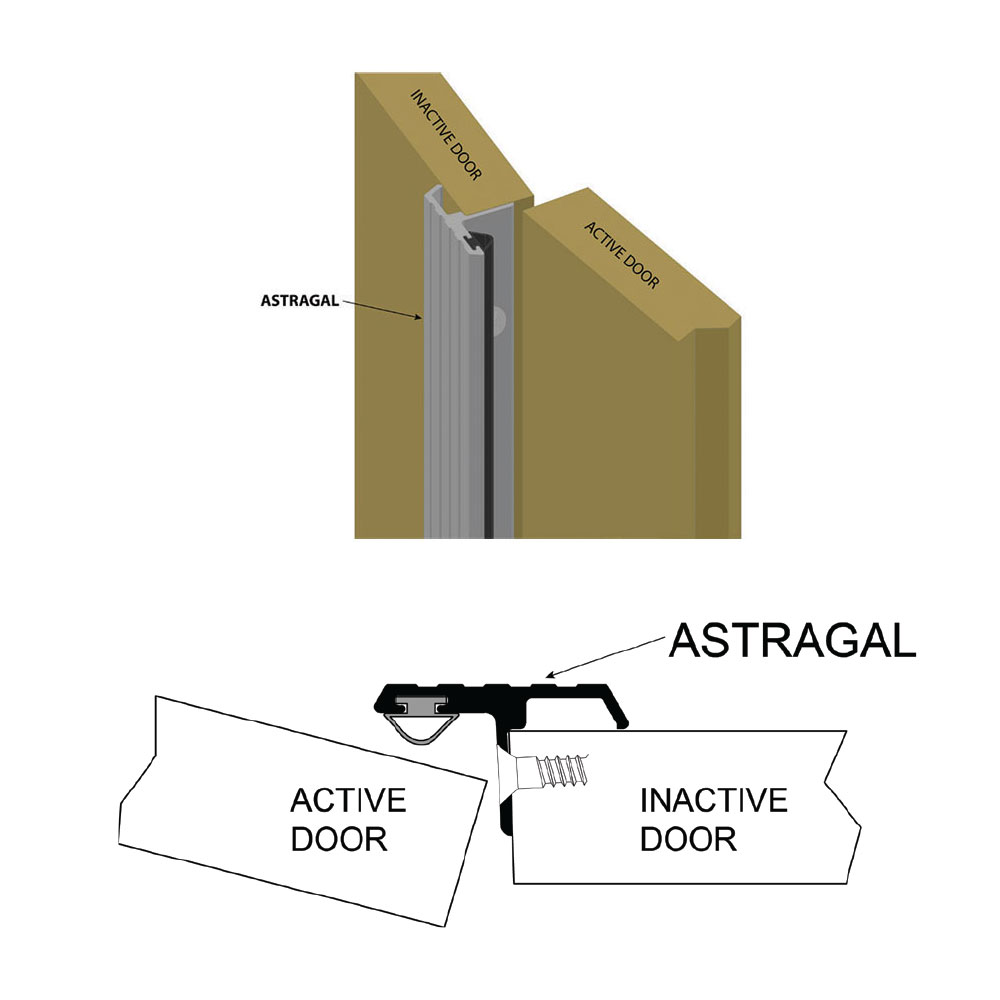

Applied to single active door in a pair of double doors
Seals the gap between paired doors by compressing the seal
A door coordinator is needed when both doors are active
Consists of an aluminum channel with a flexible vinyl Insert
Channels are punched with slotter holes for easy adjustment
Profile Width: 1-3/8″
Height: 1/4″
Lengths: 84 and *96″

*excessive length shipping fee applies

Ratings

Air Infiltration Tested
Smoke Tested
Fire Rated – UL10C – Positive Pressure

Cross Reference: Cal-Royal EAST-501AV, Hager 837S, NGP 158V, Pemko 355CV, Reese 276C, Zero 41

Brand	Trudoor
Length	84", 96"
Finishes	Mill Finish Aluminum
Fire Rating	Fire Rated – UL10C – Positive Pressure
Fasteners	PHSMS #6 x 1"
Warranty	Limited Lifetime Warranty
