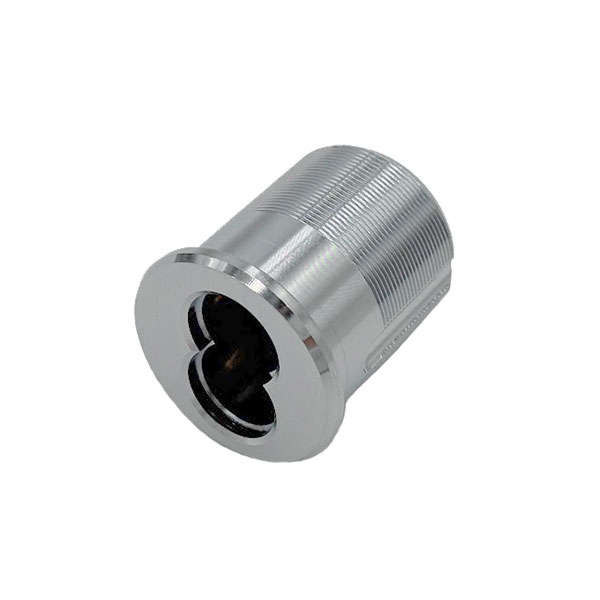

Trudoor TD-MC-SFIC Small Format Interchangeable Core Mortise Cylinder Housing with Straight Cam, Less Core

Usually Ships: Same Day

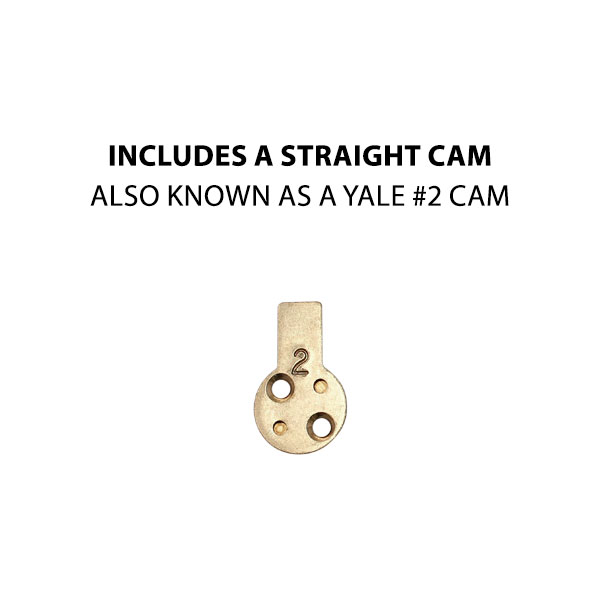

  • 1-1/4″ length, includes a straight cam
  • Compatible with most exit device trim requiring mortise cylinders
  • Accepts 6 or 7 pin small format Interchangeable core (sold separately)

Available Options:

Trudoor TD-MC-SFIC 1-1/4 In. Small Format Interchangeable Core Mortise Cylinder Housing, Less, Core, Straight (Yale #2) Cam

The Trudoor TD-MC mortise cylinder with a straight cam is for use with exit device trim, cylinder dogging kits, alarm kits, alarmed hardware, mullions, and mortise locks that require a 1-1/4″ mortise cylinder with a straight cam.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

  • Quality construction and reliability at an affordable price
  • Compatible with small format interchangeable core (SFIC) cores, such as Best, Falcon, and Arrow (core sold separately)
  • Compatible with most exit device trim requiring mortise cylinders

Invert the cam to use with cylinder dogging kits

Cross Reference

The TD-MC-SFIC can be specified as a value-engineered substitute and/or replacement for: Accentra/Yale K660, Arrow 16CR-27, Best 1E74-C4_, Corbin Russwin 1070-114-A02_, Detex IC7, Falcon C987, Hager 3902-NC-IC6/7, Ilco R28106-1, KSP 408-SFIC, Sargent 70-43, Schlage 80-102

Brand

Finishes

622 Matte Black, 626 Satin Chrome

Cylinder Type

Interchangeable Core Housing, Mortise Cylinder

Cylinder Format

Small Format Interchangeable Core (SFIC)

Cylinder Length

1-1/4"

Cam Type

Straight, Yale #2

Warranty

Limited Lifetime Warranty
