Product Overview
High value for high-use applications.

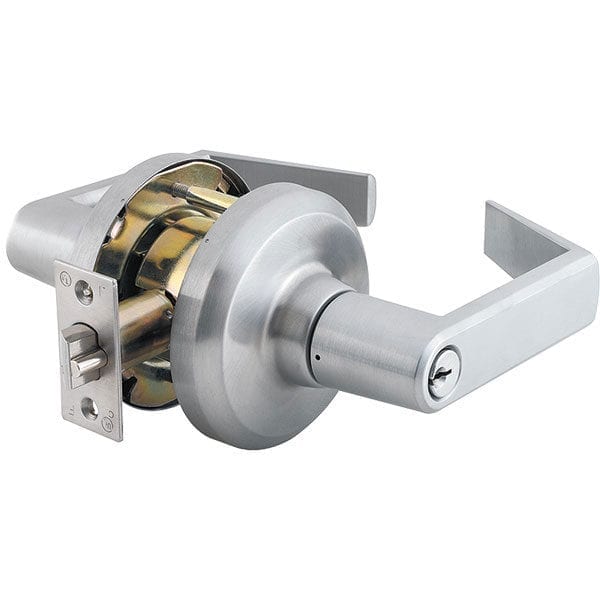

STANLEY Commercial Hardware QCL100 Series Grade 1 heavy-duty cylindrical locks deliver quality, performance, and long-term durability at a great value. When you need a reliable lockset for high traffic, heavy abuse applications, the QCL100 series offers flexible solutions with built-in security features to meet those demands.
QCL170 / ANSI F86 Storeroom Function: Outside lever always locked. Entrance by key only. Inside lever unlocked and free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.
- 626 Satin Chrome Finish
- Sierra (E) Lever Design
- Tested to meet Grade 1 specification of 800,000 cycles
- Standard clutching mechanism provides resistance to damage caused by physical force
- Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag
- Compartmentalized packaging allows for quick and easy installation
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome |
| Lock Function |
Storeroom |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.2 Series—Grade 1 |
| Cylinder & Keys |
6-pin conventional, keyed different, with 2 keys |
| Keyway |
Schlage C Keyway |
| Latch |
1/2” throw, deadlocking - 1-1/8" x 2-1/4" face |
| Backset |
2-3/4" |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Lever Design |
Sierra (E) |
| Door Thickness |
1-3/8" to 1-3/4" |
