SOSS

SOSS 418IC Invisible Closer Hinge

$406.75
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty Invisible Closer Hinge
  • For 1-3/4" to 2" thick metal or wood doors
  • 4-5/8" hinge height, 3 hour fire-rated

Available Options:

Clear

Product Overview

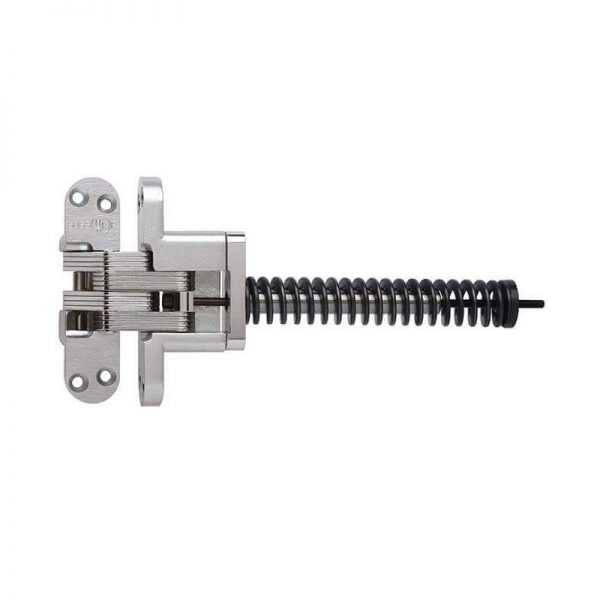

SOSS 418IC Invisible Closer Hinge, Heavy-Duty, 1-3/4" Minimum Door Thickness, 4-5/8" Height, 3 Hour Fire-Rated

SOSS® Invisible Hinge model #418IC is ideally suited for most types of doors that are 1-3/4″ thick. The model #418IC is made of alloy steel materials. The SOSS Invisible Closer gives you a door closer that is invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation. It does not require removal of the closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #418IC SOSS Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames. The 418IC hinge is rated up to and including three hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors constructed with Georgia Pacific FSI or FSII banding for a rating up to and including 90 minutes.

Allow one closer for every 55 lbs. of door weight or portion thereof. Fire rated doors require one fire rated hinge for every 20″ of door height or fraction thereof. The calculation that requires more hinges is the total number of hinges required.

  • Application Full Sized Entry, Metal, Wood
  • Min. Material Thickness 1-3/4″
  • Fire Rating 20/90/180 Minute
  • Power Transfer No
  • Closer Yes
  • Counter Bored Screw Holes No
  • Screws Included Wood and Machine
  • Packaging 1 / Box = 1 Each
  • Packages Per Container 1 Each
  • Price Per Each
Brand

Finishes

US26D Satin Chrome, US19 Black E-Coated, US15 Satin Nickel, US4 Satin Brass, UNP Unplated

Size

4-5/8" x 1-1/8"

Fire-Rating

UL Listed to 3 Hours

Door Applications

Metal or Wood Doors
