Product Overview

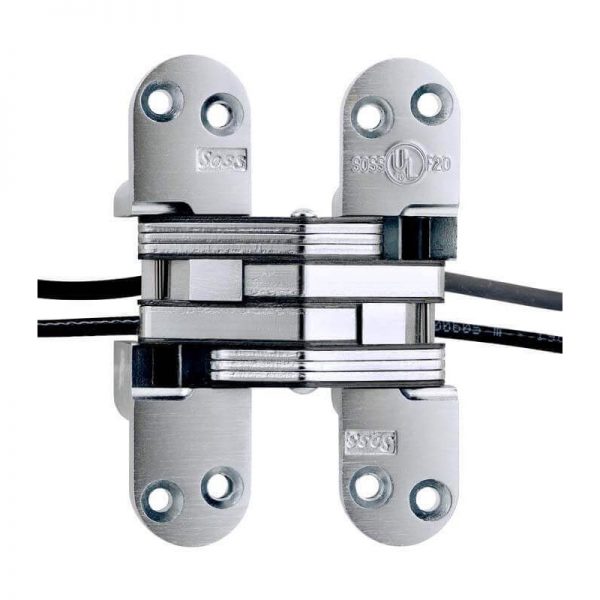

SOSS 218PT Power Transfer Invisible Hinge, 1-3/4" Minimum Door Thickness, 4-5/8" Height, UL Listed, 20-Minute Fire-Rated, 1ea. Per Box
The SOSS Power Transfer Hinge gives you the ability to send power through our hinges. SOSS® Invisible Hinge model #218PT is for use in wood or metal applications that are 1-3/4″ thick. The model #218PT is made of zinc and steel materials. Nylon links provide added strength and durability. This full size door style hinge will provide superior appearance and durability. Our hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.
The Underwriters Laboratories labeled the model #218PT SOSS® Invisible Hinge can be used on hollow metal , sheet metal, tin clad, steel composite or wood core swinging type fire doors and frames with a 20 minute rating.
Use at least one fire-rated hinge for every 20″ of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demand more hinges.
The SOSS® Power Transfer Hinges are for use with four or six wire applications. Maximum wire rating is 2.5 ampere at 24 volts of direct current. For devices requiring more than 2.5 AMP, do not use SOSS® Power Transfer Hinge.
- Application Full Sized Entry, Metal, Wood
- Min. Material Thickness 1-3/4″
- Fire Rating 20 Minutes
- Power Transfer 2.5A
- Screws Included Wood and Machine
- Packaging 1 / Box = 1 Each
- Price Per Each
| Brand | |
|---|---|
| Finishes |
US5 Antique Brass, US26 Bright Chrome, WH White E-Coated, US15 Satin Nickel, US14 Bright Nickel, US4 Satin Brass, US19 Black E-Coated, US3 Bright Brass, US10BL Oil Rubbed Bronze Lacquered, US26D Satin Chrome |
| Size |
4-5/8" x 1-1/8" |
| Usage |
Heavy Duty |
| Hinge Type |
Concealed |
| Fire-Rating |
UL Listed, 20 Minute |
| Door Applications |
Metal or Wood Doors |
