SOSS 216IC Invisible Closer Hinge

Usually Ships: 20-30 Business Days

Heavy-Duty, Invisible Closer Hinge
For 1-3/8″ to 1-3/4″ thick metal or wood doors
4-5/8″ hinge height, 20 minute fire-rated

Available Options:

Finish

Clear

Quantity:

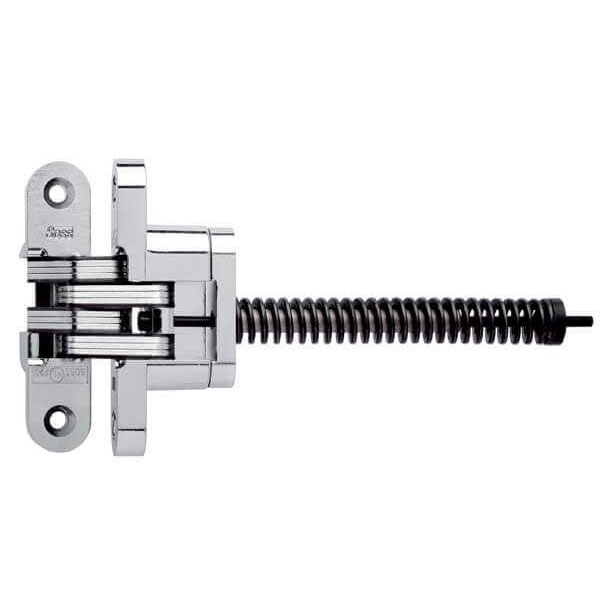

SOSS 216 Invisible Spring Closer Hinge, 1-3/8″ Minimum Door Thickness, 4-5/8″ Height, UL Listed, 20-Minute Fire-Rated, 1ea. Per Box

SOSS® Invisible Hinge model #216IC is ideally suited for most types of doors that are 1-3/8″ thick. The SOSS® Invisible Closer gives you a closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #216IC SOSS® Invisible closer hinge can be used on hollow metal, sheet metal, tin clad, steel composite or wood core swinging type fire doors and frames with a 20 minute rating.

Allow one closer for every 55 lbs. of door weight or portion thereof. Fire rated applications also require one fire rated hinge for every 20″ of door height or fraction thereof. The calculation that requires more hinges is the total number of hinges required.

Wood and machine screws are included.

Application: Full Sized Entry, Metal, Wood
Min. Material Thickness: 1-3/8″
Fire Rating: 20 Minute
Closer: Yes
Screws Included: Wood and Machine
Packaging: 1 / Box = 1 Each
Price: Per Each

Brand	SOSS
Finishes	US3 Bright Brass, US4 Satin Brass, US5 Antique Brass, US10BL Oil Rubbed Bronze Lacquered, US14 Bright Nickel, US15 Satin Nickel, US19 Black E-Coated, US26 Bright Chrome, US26D Satin Chrome, UNP Unplated, WH White E-Coated
Size	4-5/8" x 1"
Fire Rating	UL Listed, 20 Minute
Door Applications	Metal or Wood Doors
