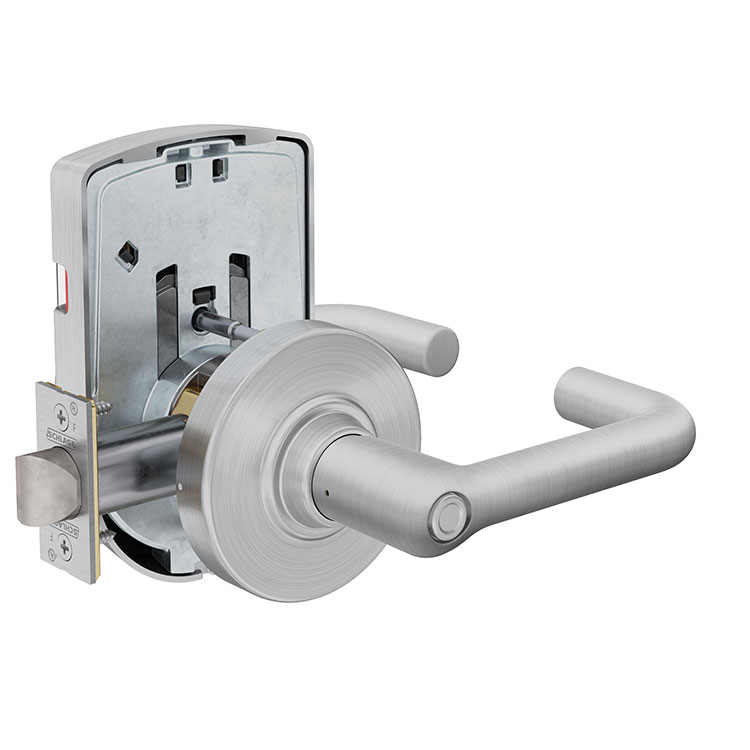

Schlage ND40S TLR (Tubular) Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days

Heavy-Duty, ANSI/BHMA Certified Grade 1
Ideal for high-use commercial restroom doors
Includes outside indicator (OCCUPIED/VACANT)

Available Options:

Finish

Clear

Quantity:

Schlage ND40S TLR Grade-1 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Tubular Lever, OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ANSI Function F76 – Lever with emergency release recessed slot outside; push button in lever inside; springlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by pushing button on inside lever. Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout. Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock. Inside lever always free for immediate egress

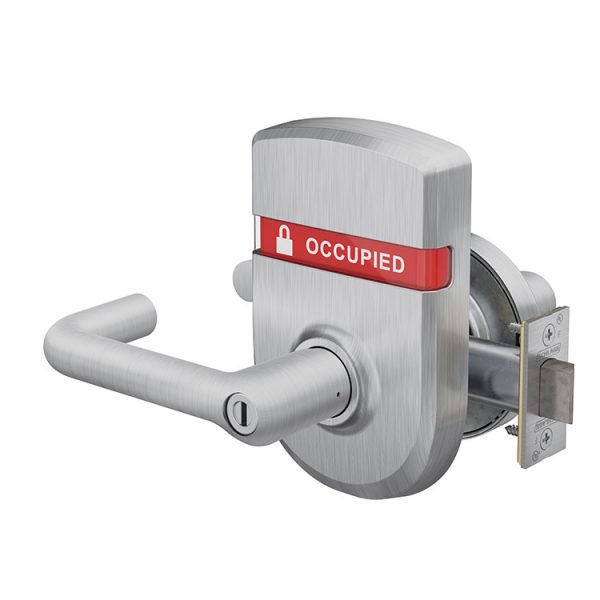

Indicator window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .6” for maximum visibility
Can be installed using the same standard door prep as any ND Series lock
Fits 1-3/4″ thick doors
Significantly exceeds ANSI/BHMA Grade 1 requirements
Withstands 3,100 in-lb. of abusive lever torque
Shows nearly zero droop or wobble after 16 million cycles
The strongest cylindrical lock Schlage has ever built
ADA compliant lever handles

Brand	Schlage
Finishes	606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function	Privacy with Indicator
Lever Design	TLR (Tubular)
Usage	Heavy Duty
ANSI/BHMA Standard	Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing	Handed – LH, RH
Backset	2-3/4"
Latch	1/2" throw – 1-1/8" x 2-1/4" face
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness	1-3/4"
Warranty	10 Years
