Schlage

Schlage CO-100-CY-50-KP-LAT Electronic Keypad Lock, Office/Classroom Function, Latitude Lever

$551.54
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy Duty Grade-1 standalone electronic lock
  • Manually programmable, up to 500 unique PIN codes
  • Keypad and mechanical key override

Available Options:

Clear
Added to Cart

Product Overview

Schlage CO-100-CY-50-KP-LAT Grade 1 Standalone Electronic Cylindrical Lock, Office/Classroom Function, Keypad Reader, Latitude Lever, With Schlage Standard Cylinder

This simple, standalone keypad-entry lock is designed for up to 500 unique users using PIN codes only. The CO-100 is an economic alternative when trying to minimize key distribution. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility’s key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.

Office/Classroom Function (50): Lockset is normally secure. Inside lever always allows free egress. Interior pushbutton on inside housing may be used to select a passage or secured status. Meets need for lockdown function for safety and security. NOTE: Valid toggle credentials on the exterior may also be used to change status. Has interior pushbutton (IPB).

  • 4 AA batteries included – up to 2-year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed

The CO-100 is ideal for:

  • Visitor pass through/common areas
  • Vestibules or reception area doors controlled by remote release
  • Maintenance areas
  • Supply/equipment rooms
  • Workout/exclusive use spaces
  • Private spaces such as restrooms, nursing, or fitting rooms – anywhere visual occupancy indication is desired
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial

Usage

Heavy Duty

Lock Function

Classroom, Office

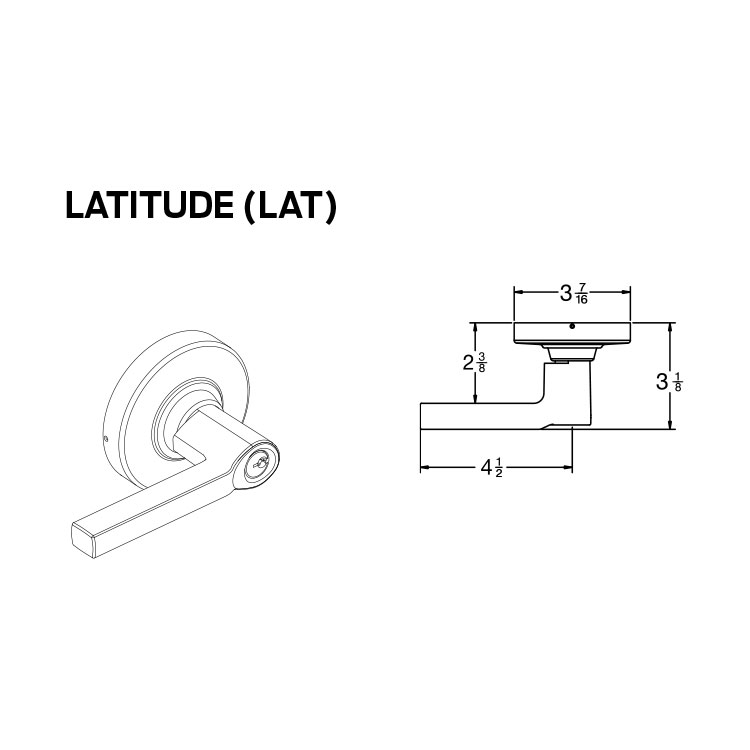

Lever Design

LAT (Latitude)

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Certifications

ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294

Handing

Non-Handed

Door Thickness

1-3/4"

Users

Up to 500

Power

4 AA batteries

Battery Life

Up to 2 yrs with 4 AA batteries

Door Applications

Interior or Exterior Doors - ANSI/BHMA A156.25 full outdoor

Warranty

1 Year
