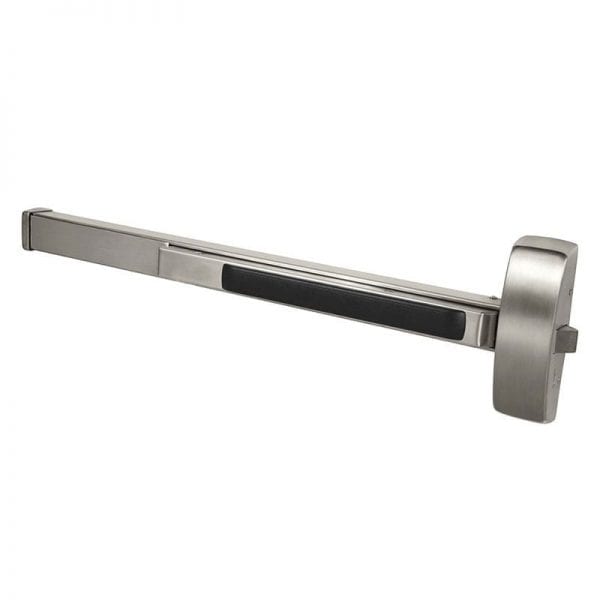

Sargent 5556-8810 Rim Exit Device with Electric Latch Retraction and Request to Exit Switch

$2,176.22
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Motor-driven latch retraction for smooth, precise operation
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

Sargent 5556-8810 Rim Exit Device with Electric Latch Retraction, Request to Exit Switch, Multi-Function, Exit Only

SARGENT’s Electric Latch Retraction exit device is the perfect choice for high traffic egress doors that require access control This non-handed exit device rail is durable and easy to install It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters and libraries Once retracted, the door functions in a push/pull manner

The 56- exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator The device can be dogged continuously on fire-rated devices that are tied into the building’s fire detection system

Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

  • Exit Only (outside trim sold separately)
  • Universal, multi-function rim exit device
  • Device & trim sold separately; easy to mix and match
  • Architectural finish with black Lexan touchpad
  • Designed for standard width stile applications on wood and metal doors
  • 7 functions available as determined by the trim function
  • UL305 (Panic) Listed

55- Request-to-Exit Option

SARGENT Request-to-Exit Signal Switch option for exit devices provides push rail monitoring for a variety of applications; such as to sound an alarm, initialize a delayed egress system, or de-energize an electromagnetic lock

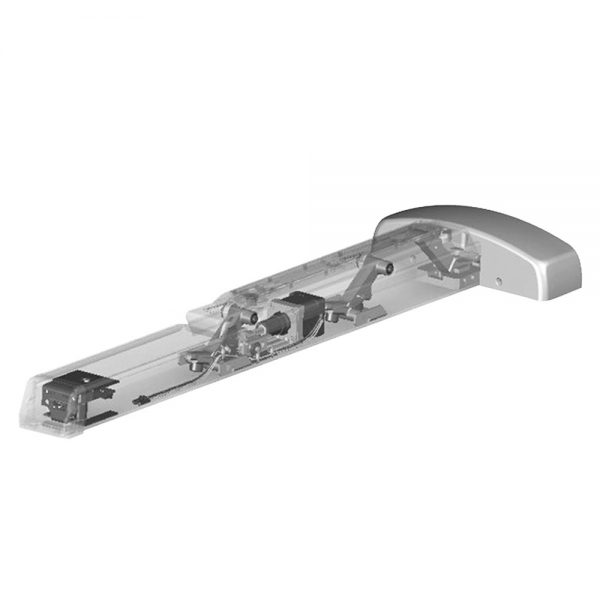

56- Electric Latch Retraction Features

  • 5 year warranty
  • Motor driven latch retraction for smooth, precise operation
  • Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
  • Digital retraction timer (0-20 seconds; factory setting is 5 seconds)• Retrofit kits available - see next page
  • Standard electric hinge - no special power transfer required
  • Can be used for continuous and intermittent use
  • UL Listed for Class II Circuitry
  • Power Requirements: 24VDC regulated/filtered power supply (LSP-12-24)
  • Current draw: 6A during retraction and 25A maintained in dogged hold position
  • Requires 1A at 24VDC regulated/filtered power supply



Brand

Finishes

US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze, BSP Black Suede Powder Coat

Length

F - 36" (for 33" to 36" Doors), J – 42" (for 37" to 42" Doors), G - 48" (for 43" to 48" Doors)

Stile Type

Wide (Standard)

Electric Options

Electric Latch Retraction, Request to Exit

ANSI/BHMA Standard

ANSI/BHMA A156.3 - Grade 1

Usage

Heavy Duty

Fire-Rating

None

Handing

Non Handed – Completely Reversible

Dogging Feature

No Manual Dogging - Electric Latch Retraction

Latchbolt

Stainless steel 3/4” throw

Strike

649 Strike supplied standard

Door Applications

1-3/4" Metal and Wood Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
