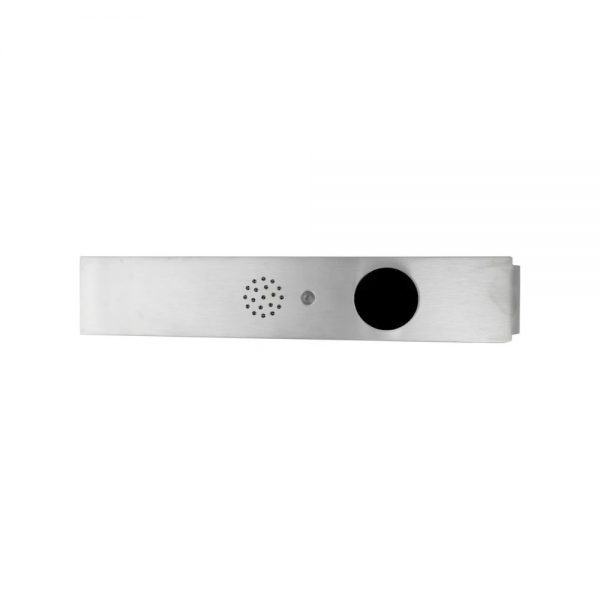

Sargent 545-1 Alarm Retrofit Kit for 8300, 8600 and 8900 Exit Devices, F-Wide Rails

Sargent 545-1 Alarm Retrofit Kit for 8300, 8600, and 8900 Exit Devices, F-Wide Rails

SARGENT’s AL-80 Series Exit Devices are designed for areas requiring a stand-alone alarm on outward swinging doors This device has an integrated alarm in the push rail to discourage the unauthorized use of emergency exit doors The alarm inside the rail sounds immediately upon exit The AL-80 Series is ideal for rear exterior doors, doors leading to a rooftop, or anywhere security is a concern.

Features

• #41 Cylinder is not supplied standard and must be ordered separately
• Microprocessor based alarm board
• When armed, alarm sounds immediately upon rail depression
• All exit devices have tamper resistant latching (Guarded Latch)
• Battery powered – 9VDC
• 103 Db @ 8 ft pulsating horn
• Flashing red LED provides visible violation indication, reset by key only
• Low battery alert
• Field selectable continuous alarm option- 9VDC 300mAh Supply and 546 Harness recommended
• Automatic re-arming option
• Supplied with a #41 (1-1/8″) with standard off set cam
• UL Listed and cUL Listed
• UL Listed to Canadian Safety Standards
• Rail Monitoring & Guarded Latch are standard internal features
• For all 80 Devices, except LP, LR, LS8600, FM8700,WS & HC8800 Devices
• See McKINNEY’s Transfer Device Solutions Catalog for QC Hinge and cable requirements (if hard-wired)
