Sargent 3828 x 28-C-LL Panic Rim Exit Device with Entrance Lever Trim

Usually Ships: 1-2 Business Days
  • Meets ANSI A156.3 Grade 1 standards
  • ANSI function 08: key locks/unlocks lever
  • Includes 28-C-LL key-in-lever trim

Available Options:

Product Overview

Sargent 3828/12-3828 Grade-1 Panic Rim Exit Device, 28-C-LL Lever Trim, Entrance/Classroom Function

The 3828 Series supports both single and double door applications and is ideal for warehouses.

  • Includes 28-C-LL lever trim
  • Sargent function 13: Key in lever locks or unlocks lever
  • Lever trim gets through-bolted to the exit device
  • Steel end caps and covers provided added durability
  • Meets ANSI A156.3 Grade 1
  • UL panic listed
  • 12- Option = Fire-rated

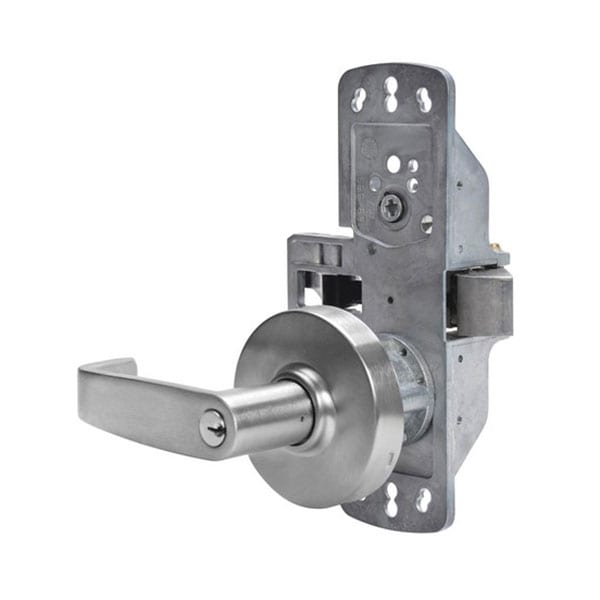

28-C-LL Trim

  • ANSI Function: 08 – Entrance by lever. Key locks or unlocks lever.
  • L lever design
  • L rose design
  • LA Keyway
  • Architectural finishes (26D with EN device, 10B with EB device)
Brand

Finishes

EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel
Length

E – 32" (24" to 32" Doors), F – 36" (for 33" to 36" Doors), G – 48" (for 43" to 48" Doors)
Stile Type

Wide (Standard)
ANSI/BHMA Standard

ANSI/BHMA A156.3 – Grade 1
Usage

Medium Duty
Fire Rating

3828: Non-Fire-Rated – 12-3828: Fire-Rated up to 3 Hours
Lever Design

L
Rose Design

L
Keyway

Sargent LA Keyway
Handing

Non Handed – Completely Reversible
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Latchbolt

Stainless steel 3/4” throw
Strike

649 Strike supplied standard
Door Applications

1-3/4" Metal and Wood Doors
