Product Overview

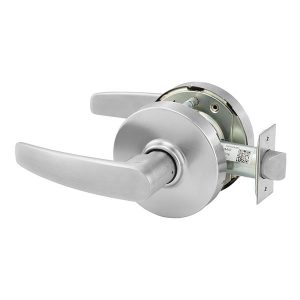

Sargent 10XU15 Grade-1 Cylindrical Lock, Passage Function, B Lever, L Rose
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Independent return springs enable the lock to exceed ANSI/ BHMA A156.2 Grade 1 cycle requirements without lever sag
ANSI F75 Passage
- Latch by either lever
Applications
- Heavy-duty commercial and institutional interior and exterior doors
- Offices
- Schools/Universities
- Hospitals
- Manufacturing facilities
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent |
| Lock Function |
Passage |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI A156.2 Series 4000 — Grade 1 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
| Lever Design |
B |
| Rose Design |
L |
| Backset |
2-3/4" |
| Strike |
808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch |
Stainless Steel Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face |
| Handing |
Non-Handed |
| Door Thickness |
1-3/4" to 2" |
| Minimum Stile Width |
4-1/2" |
| Warranty |
10 Year Limited |
