Product Overview

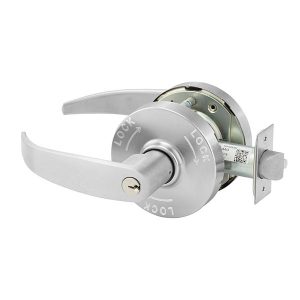

Sargent 10XG38 Grade-1 Cylindrical Lock, Classroom Security Intruder Function, P Lever, L Rose
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Exceeds ANSI/ BHMA Grade 1 standards - by as much as 20 times
ANSI F110 Classroom Security Intruder
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in either lever locks or unlocks outside lever
- Inside lever always operable
- Locked indication on inside rose standard with this function
Applications
- Heavy-duty commercial and institutional interior and exterior doors
- Offices
- Schools/Universities
- Hospitals
- Manufacturing facilities
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Lock Function |
Classroom Security, Intruder |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI A156.2 Series 4000 — Grade 1 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
| Cylinder & Keys |
6-pin conventional, keyed different, with 2 keys |
| Keyway |
Sargent LA Keyway |
| Backset |
2-3/4" |
| Lever Design |
P |
| Rose Design |
L |
| Strike |
808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch |
Stainless Steel Deadlocking/Guarded Latch - 1/2” throw, 1-1/8" x 2-1/4" face |
| Handing |
Non-Handed |
| Door Thickness |
1-3/4" to 2" |
| Minimum Stile Width |
4-1/2" |
| Warranty |
10 Year Limited |
