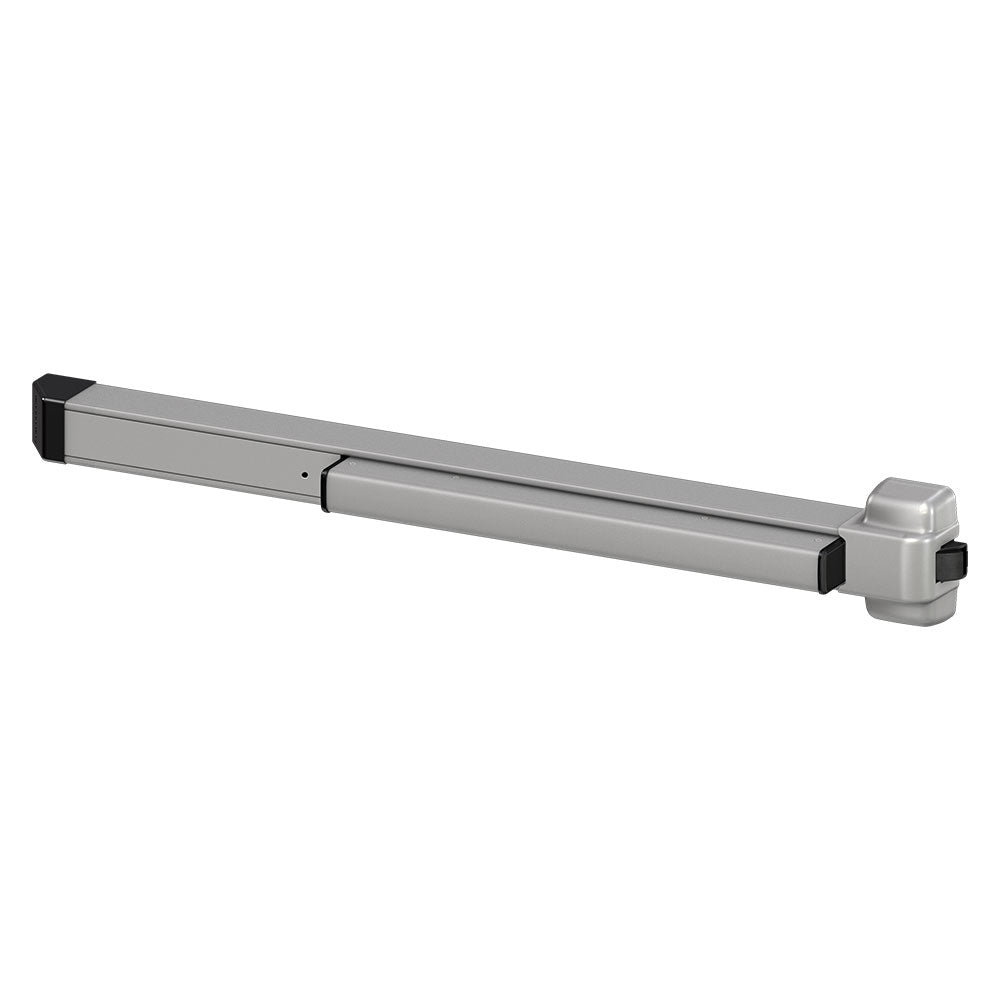

Von Duprin RX22EO Panic Rim Exit Device with Request to Exit Switch

$609.84
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI function 01, exit only (trim sold separately)
  • Includes request to exit (RX) switch

Available Options:

Clear

Product Overview

Von Duprin RX22EO Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Less Trim, Hex Dogging, Request to Exit Switch

Request to exit (RX): The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the push pad. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. The RX switch option should not be used to control a load, but as a signalling switch (2 amps resisitive maximum). The RX switch is available in a low current (LC) 50ma max. Most commonly used to signal low-current access control inputs.

Brand

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Fire-Rating

None

Electric Options

Request to Exit

Stile Type

Wide (Standard)

Hand

Non-handed

Strike

299 roller strike standard

Latchbolt

Deadlatching, 3/4" throw

Fasteners

Includes screws for metal and wood doors

Dogging Feature

Half turn hex dogging standard

Projections

Pushbar neutral: 3-1/4" - Pushbar depressed: 3"

Buy American Act Compliance

Meets Buy American Act - Made in USA
