Product Overview

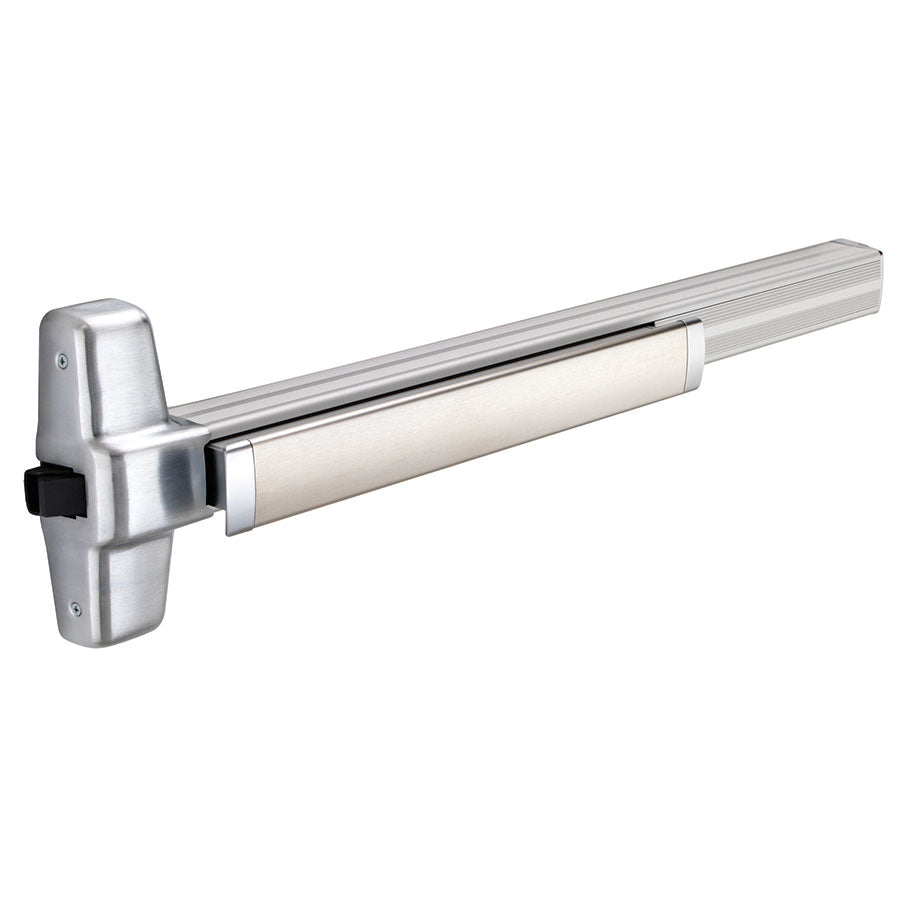

Von Duprin PN99EO Grade-1 Rim Exit Device, Pneumatic Latch Retraction, Wide Stile Pushpad, Panic Rated, Exit Only
The PN feature provides remote latch bolt retraction in hazardous areas where electrically operated devices would not be permitted. The pneumatic solenoid will retract the latch bolt for momentary or prolonged periods. PN exit devices are particularly suited for use with automatic door operators.
When activated pneumatically, the latch bolt(s) of the exit device retract in 1⁄2 to 1 1⁄2 seconds. This pneumatic operation uses air pressure ranging from 50 to 100 pounds per square inch.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3' and 4' - can be cut to size in the field
- 299 Roller Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
Non-Fire-Rated |
| Mechanical Options |
Pneumatic Latch Retraction |
| Hand |
Non-handed |
| Latchbolt |
Deadlatching, 3/4" throw |
| Dogging Feature |
Half turn hex dogging standard |
| Strike |
299 roller strike standard |
| Stile Type |
Wide (Standard) |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Fasteners |
Includes screws for metal and wood doors |
| Door Applications |
1-3/4″ Thick Doors |
| Product Number |
PN99EO |
| Warranty |
10 Years |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
