Product Overview

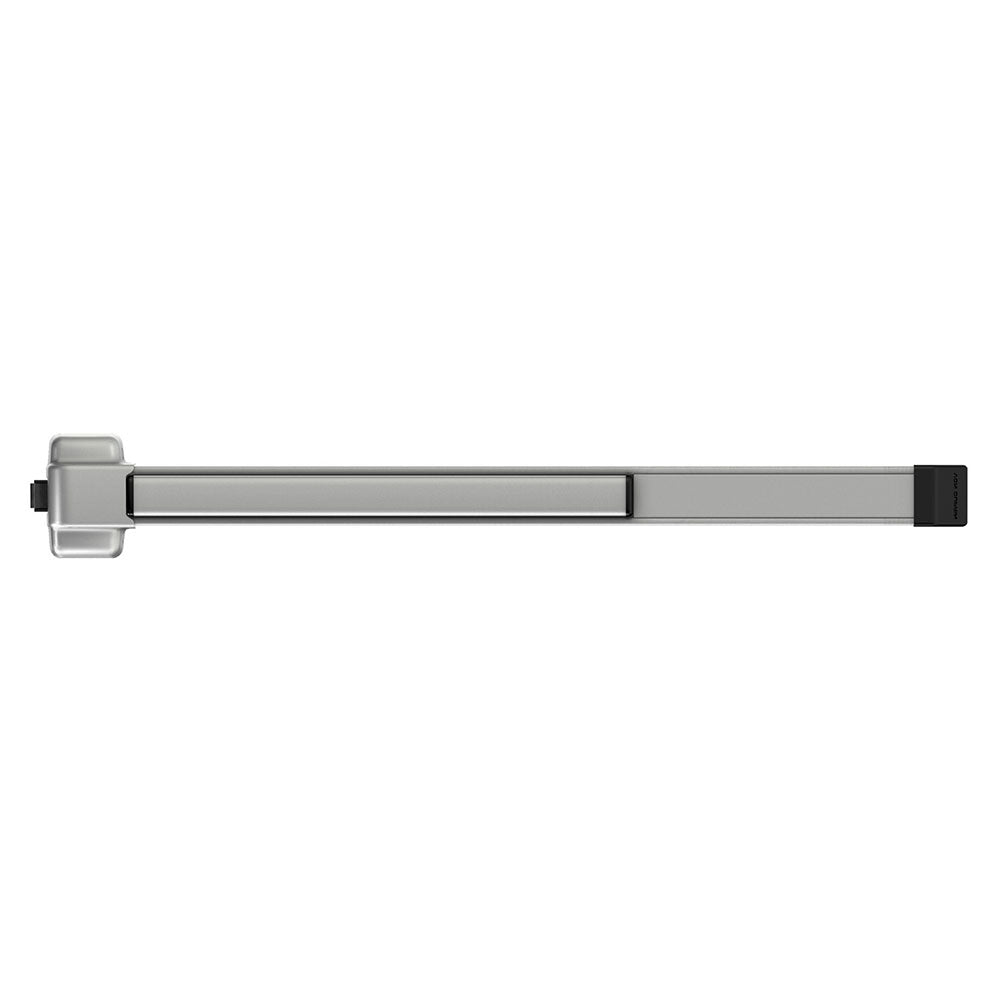

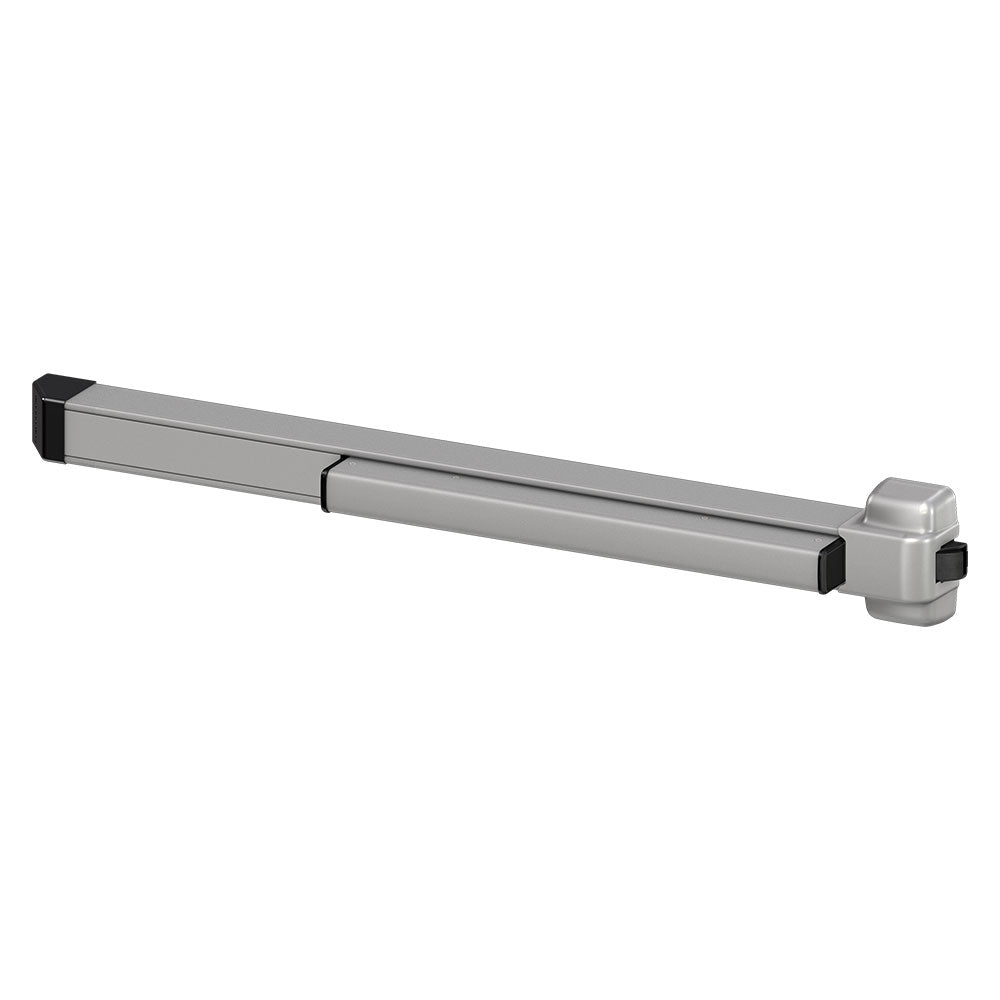

Von Duprin LD22EO Grade-1 Rim Exit Device, Panic Rated, Less Dogging, Exit Only
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. The 22 Series is an economical alternative that incorporates a modern touch bar styling for any door type.
22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are Grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3-13/16″ (97 mm). The device is non-handed.
- Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
- ANSI A156.3, 2008 Grade-1
- UL listed for panic hardware
- Covers stock hollow metal doors with 161 cutout
| Brand | |
|---|---|
| Finishes |
622 Matte Black, 526 Powder Coated Chrome, 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated) |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
| Fire-Rating |
None |
| Mechanical Options |
Less Dogging |
| Stile Type |
Wide (Standard) |
| Hand |
Non-handed |
| Strike |
299F fire-rated roller strike |
| Latchbolt |
Deadlatching, 3/4" throw |
| Fasteners |
Includes screws for metal and wood doors |
| Dogging Feature |
None |
| Projections |
Pushbar neutral: 3-1/4" - Pushbar depressed: 3" |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
