Von Duprin 967247 (ESL) Emergency Secure Lockdown Kit For 48" 99 Series Exit Devices

$388.99
Usually Ships:  1-2 Business Days
  • Fits 4'0" wide 99 Series devices with QEL latch retraction
  • Ideal for high-occupancy spaces, such as auditorium-style classrooms
  • Requires 1-1/4" keyed or thumbturn mortise cylinder (sold separately)

Available Options:

Clear

Product Overview

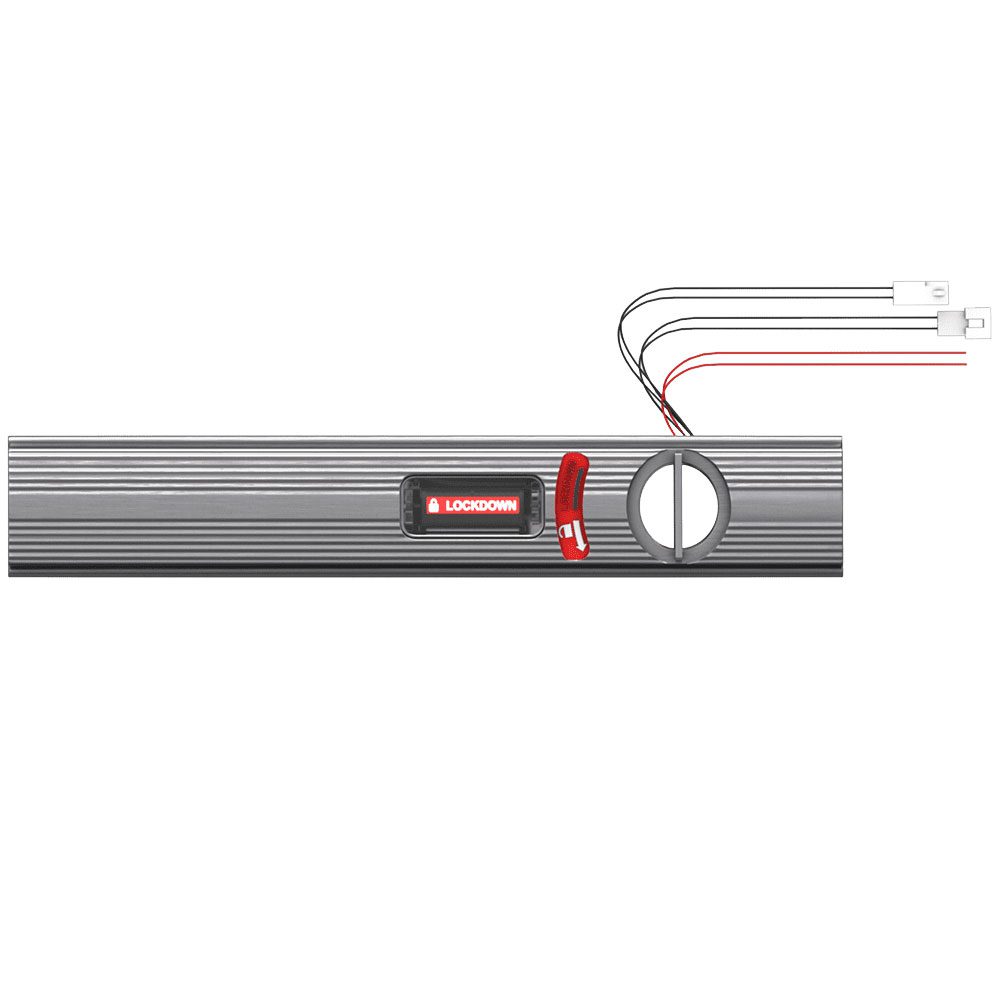

Von Duprin 967247 (ESL) Emergency Secure Lockdown Kit For 4ft 99 Series Exit Devices, Less Cylinder

The Von Duprin® Emergency Secure Lockdown (ESL) option is ideal for high-occupancy spaces, such as auditorium-style classrooms with access control. These large spaces often don't have a way to locally lockdown the room without tapping into the building's access control system. ESL allows occupants to quickly secure the opening in the case of an emergency.

In the event lockdown is necessary, students or teachers can turn the thumb turn (or cylinder key) of the ESL option installed in the exit device. This action interrupts power to the QEL motor, electronically undogging (extending the latchbolt) to secure pull side of the door as well as sends a signal to the access control system. The status indication assures the occupant the exit device has been put into secure lockdown mode. Free egress out of the room is maintained from the exit side of the door, while access into the room can only be performed with a key.

The ESL can be installed on openings containing both a Von Duprin QEL exit device, and an electronic access control system with credential reader. 1 In addition, where a key cylinder or thumb turn is in use, Von Duprin directional indicators aid the user in determining which way the key or thumb turn must be rotated to secure the opening.

  • For 4ft 99 Series exit devices that have QEL latch retraction - Installation on devices other than QEL will result in loss of function and will void listing(s)
  • Requires a standard 1-1/4" mortise cylinder or thumbturn cylinder with an inverted straight cam (sold separately)
  • ANSI BHMA Grade 1 & UL 10C Fire Rated
  • Designed with reliability and durability in mind for high use and abuse environments
  • Maintains free egress as required by code while still securing the door for lockdown
  • Pad printed icons provide a clear direction of rotation to secure opening
  • Security indicator with clear LOCKDOWN/BLANK icons and words behind a tamper-resistant window
  • Lockdown action interrupts power and extends latchbolt to secure pull side of door as well as sends signal to access control system
  • When emergency lockdown is activated card access system no longer operates QEL
  • Physical access is obtained by key override from pull side in lockdown mode
  • Modular conversion kits allow quick and easy upgrade of existing devices
  • Allows for scheduled electronic dog/undog or credential access during normal day-to- day use
  • Works with any physical access control provider, no additional integration required
Brand

Finishes

US28 (628) Anodized Aluminum, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze

Cylinder

Requires mortise cylinder (sold separately)

Part Type

Emergency Secure Lockdown Kit

Compatible Devices

99 Series Exit Devices with QEL Latch Reatraction

Buy American Act Compliance

Meets Buy American Act - Made in USA
