Von Duprin

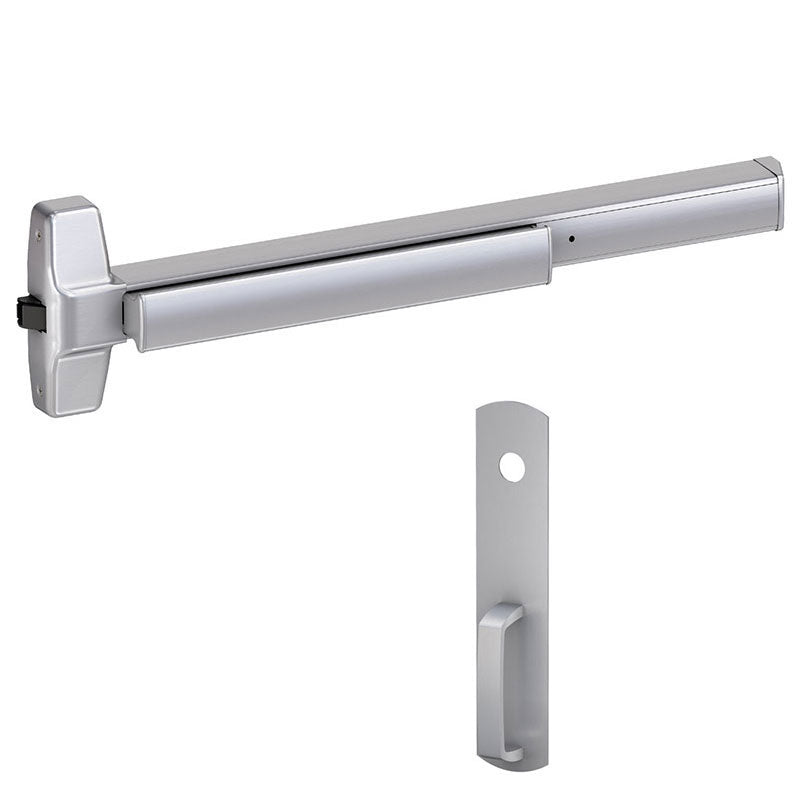

Von Duprin 78NL Rim Exit Device with Night Latch Pull

$1,172.17
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • ANSI Function 03 (night latch – key retracts latchbolt)
  • Includes 785NL-R/V pull (cylinder sold separately)

Available Options:

Clear

Product Overview

Von Duprin 78NL Grade-1 Rim Exit Device, Wide Stile Pushpad, Includes 785NL Night Latch Pull Trim, Less Cylinder

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

78 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

  • Includes 785NL Pull Trim
  • For use with single doors or double doors with mullions
  • Deadlocking latchbolt standard
  • Stock Sizes: 3' (32-3/4" actual width) and 4' (45" actual width) - can be cut to size in the field
  • 299 Roller Strike Standard
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware (-F Model listed for fire exit hardware)

785NL Pull Trim

  • ANSI Function: 03 – Pull-night latch – Key retracts latch bolt
  • Escutcheon plate size: 3″ x 14-3/16″ x 3/32″
  • Pull CTC: 5-1/2″
  • Projection: 2″
  • Cylinder must be ordered separately – Requires rim cylinder

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze

ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified

Usage

Heavy Duty

Fire-Rating

78NL: Non-Fire-Rated – 78NL-F: UL Listed A or B label Fire-Rated (3 Hours)

Cylinder

Requires rim cylinder (sold separately)

Hand

Non-handed

Latchbolt

Deadlocking, 5/8" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Stile Type

Wide (Standard)

Center Case

7-7/8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Warranty

3 Year

Buy American Act Compliance

Meets Buy American Act - Made in USA
