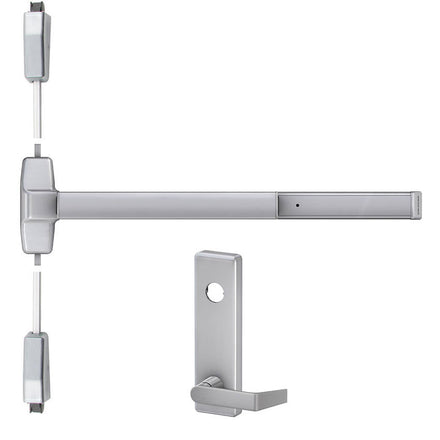

Von Duprin 7827L Surface Vertical Rod Exit Device with Lever

$1,768.80
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • ANSI function 08 (key locks & unlocks lever)
  • Includes 780L-R/V-06 lever (cylinder sold separately)

Available Options:

Clear

Product Overview

Von Duprin 7827L Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 780L-R/V Trim, 06 Lever, 84" Door Height

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/ BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

  • Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
  • Extension rod available for door up to 10’0″ (see part #051810)
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware

780L-R/V Lever Trim

  • ANSI Function: 08 – Key locks and unlocks lever
  • Escutcheon plate size: 9-3/4″ x 2-3/4″ x 7/8″
  • Projection: 3-1/4″
  • #06 lever style furnished standard
  • Cylinder must be ordered separately – Requires mortise cylinder with straight cam

Brand

Finishes

US26D (626) Satin Chrome, 711 Black Anodized Aluminum, US28 (628) Anodized Aluminum, US4 (606) Satin Brass, 313 Duranodic Dark Bronze

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)

Trim

780L-R/V-06

Cylinder

Accepts standard mortise cylinder (sold separately)

ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified

Usage

Heavy Duty

Fire-Rating

7827: None - 7827-F: UL/cUL Listed for use on fire doors up to 3 hours

Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Strikes

7827: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold - 7827F: 299F Top Strike, 304L Bottom Strike

Fasteners

Includes screws for metal and wood doors

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Center Case

7-7/8" x 2-3/4" x 2-3/8"

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Device Type

Surface Rod Device

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
