Von Duprin

Von Duprin 7547EO-F Fire-Rated Narrow Stile Concealed Vertical Rod Exit Device

$1,757.84
Usually Ships:  20-30 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • For use with metal or aluminum doors
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Product Overview

Von Duprin 7547EO-F Grade 1 Concealed Vertical Rod Exit Bar, Narrow Stile Pushpad, Fire-Rated, 80″ to 100″ Door Height, Exit Only, Less Trim, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7547-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware

  • EO = Exit Only, ANSI Function 01 (75 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′ (2' 4" to 3' door width), 4′ x 7′ (2' 10" to 4' door width)
  • Top rod adjustable from 6'8" to 8'4"
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware and fire hardware

Brand

Finishes

643e Aged Bronze, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze, US15 (619) Satin Nickel

Device Type

Concealed Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified

Usage

Heavy Duty

Fire-Rating

UL and cUL Listed – up to 3 Hours

Vertical Rods

Round 2-piece adjustable rods - Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35 5/8" to 49 5/8". Extension rod kits available for doors over 8'4"

Hand

Field Reversible

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

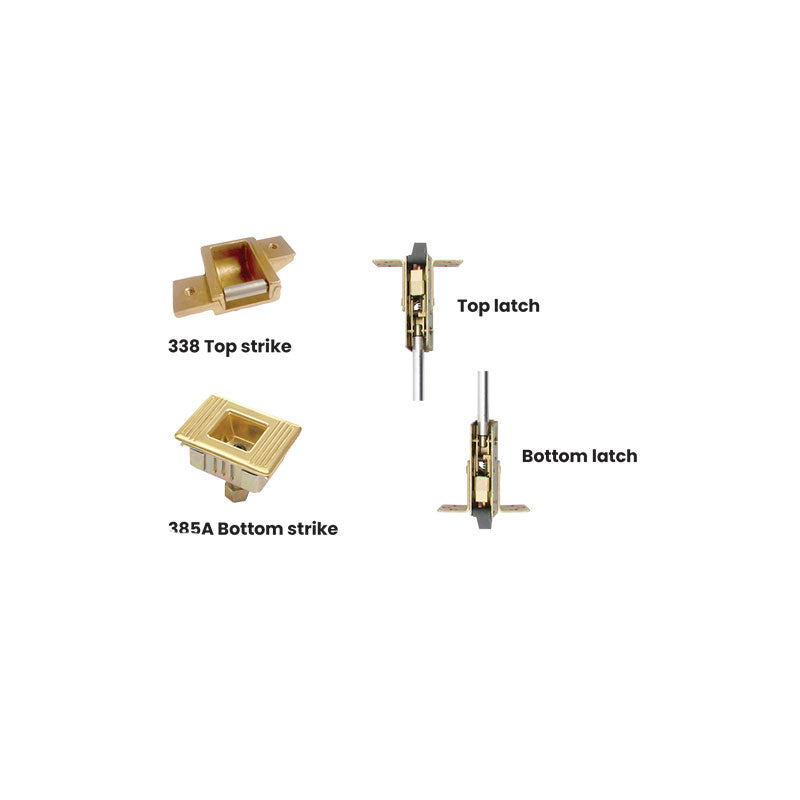

Strikes

Top: 338, Bottom: 385A

Dogging Feature

None

Stile Type

Narrow

Center Case

9" x 1-5/8" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4" Metal or Aluminum Doors

Warranty

3 Year

Buy American Act Compliance

Meets Buy American Act - Made in USA
