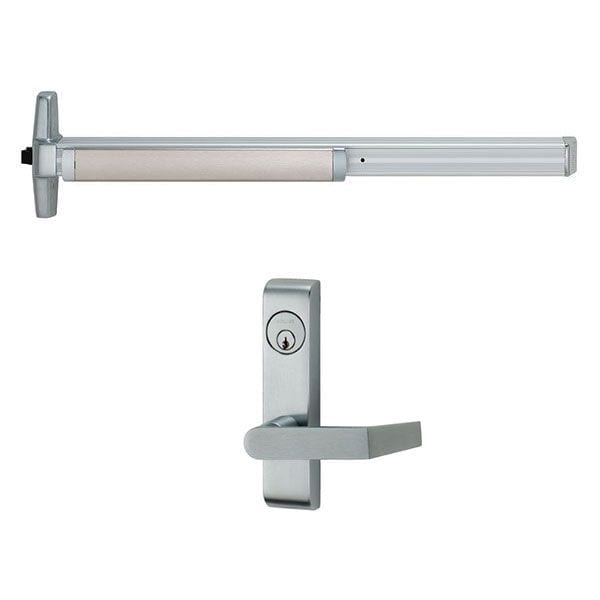

Von Duprin 33A-L Narrow Stile Rim Exit Device with Lever

$2,050.62

This item ships FREE! Usually Ships: 1-2 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
Includes 360L Lever (Key Locks & Unlocks Lever)
Fits Door Stiles as Narrow as 1-3/4"

Available Options:

Finish

Add Cylinder	Yes No
Cylinder

Quantity:

Added to Cart

Von Duprin 33A-L Grade 1 Rim Exit Device, Narrow Stile Pushpad, Lever Trim, Classroom Function, Hex Key Dogging

The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

3'0" Length (for doors 2'4" to 3'0" wide)
Typically Installed on Aluminum Doors
US28 (Anodized Aluminum) or 313 (Dark Bronze) Finish

360L Lever Trim

ANSI Function: 08 or 09
Base Size: 7-1/2" x 1-11/16" x 7/8"
Projection: 3"
Standard 06 Lever Design
Field Reversible Handing
Cylinder Type: 1-1/4" Mortise Cylinder (Not Included)
US26D Satin Chrome (with US28 Device) or US10B Dark Oil Rubbed Bronze (with 313 Device)

made-in-usa

Brand	Von Duprin
Finishes	US28 (628) Anodized Aluminum, 313 Duranodic Dark Bronze
Length	3'0"
Trim	360L Lever
Cylinder	1-1/4" Mortise Cylinder (sold separately)
Fire-Rating	Non-Fire-Rated
Hand	Device Non-Handed - Lever Field Reversible
ANSI Grade	Certified ANSI A156.3-2001 Grade 1 standards
Usage	Heavy Duty
Latchbolt	Deadlatching, 3/4" throw
Dogging Feature	Half turn hex dogging standard
Stile Type	Narrow
Stile	1-3/4" Minimum
Strikes	1439 Standard
Door Applications	1-3/4" Metal, Wood or Aluminum Doors
Buy American Act Compliance	Meets Buy American Act - Made in USA
