Von Duprin

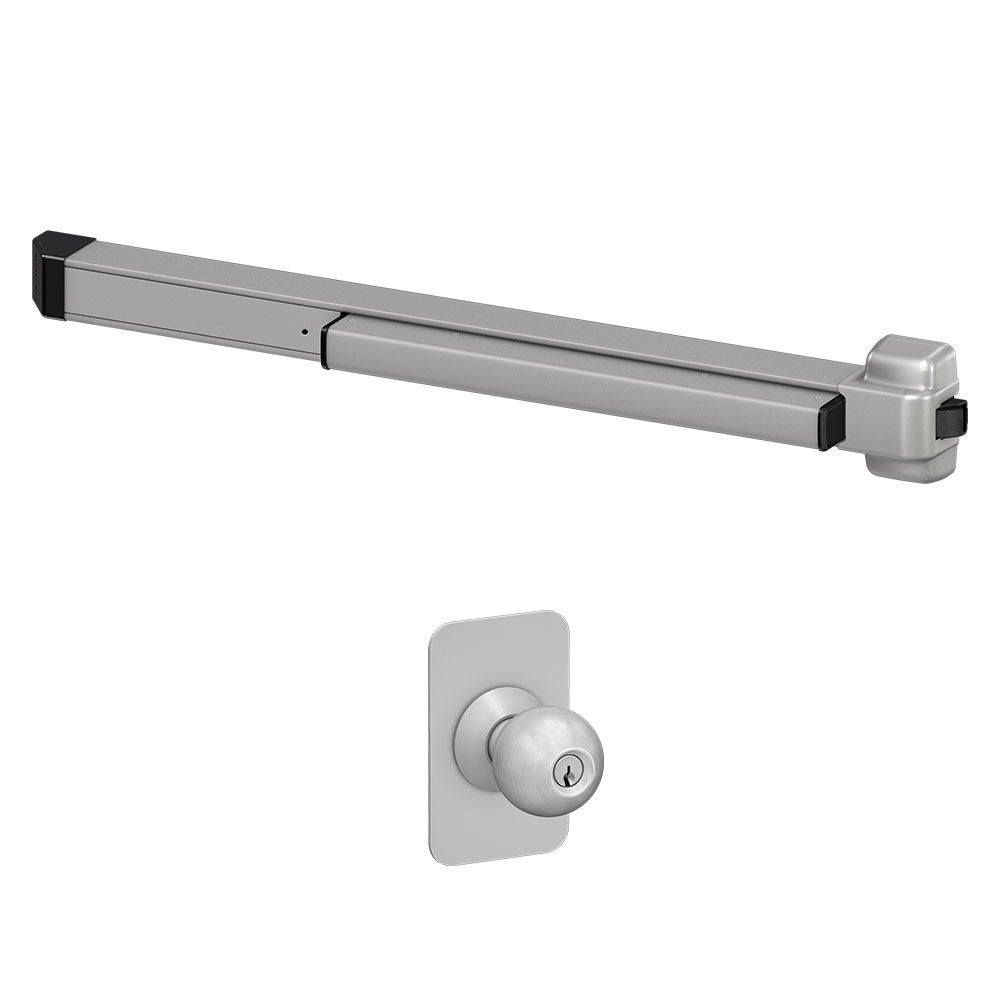

Von Duprin 22K Rim Panic Bar Exit Device with Knob

$564.43
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 08 (Key Locks/Unlocks Knob)
  • Includes 210K Knob Trim (Schlage C keyway)

Available Options:

Clear

Product Overview

Von Duprin 22K Grade-1 Rim Exit Device with Trim, Knob with Escutcheon, Classroom Function

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

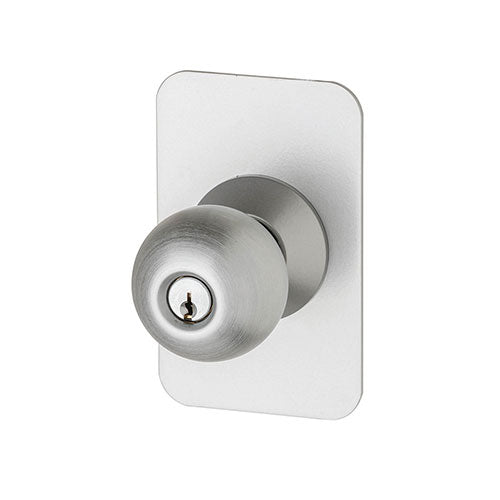

210K Entry Knob Trim

  • ANSI Function: 08 – Key locks and unlocks knob
  • 10 gauge steel escutcheon and uses the Schlage “A” orbit knob with 6-pin “C” keyway
  • Escutcheon plate size: 3″ x 4-25/16″ x 3/32″
  • Projection: 2-15/16″
Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

210K

Hand

Device Non-Handed - Lever Field Reversible

Fire-Rating

Non Fire-Rated

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Buy American Act Compliance

Meets Buy American Act - Made in USA

VonDuprin22RimDeviceInstallationInstructions VonDuprin210KTrimInstallationInstructions109296 Loading...
