Von Duprin

Von Duprin 22DT Rim Panic Bar Exit Device with 210DT Dummy Pull

$408.67
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 02 (Pull when Dogged)
  • Includes 210DT Dummy Pull

Available Options:

Clear

Product Overview

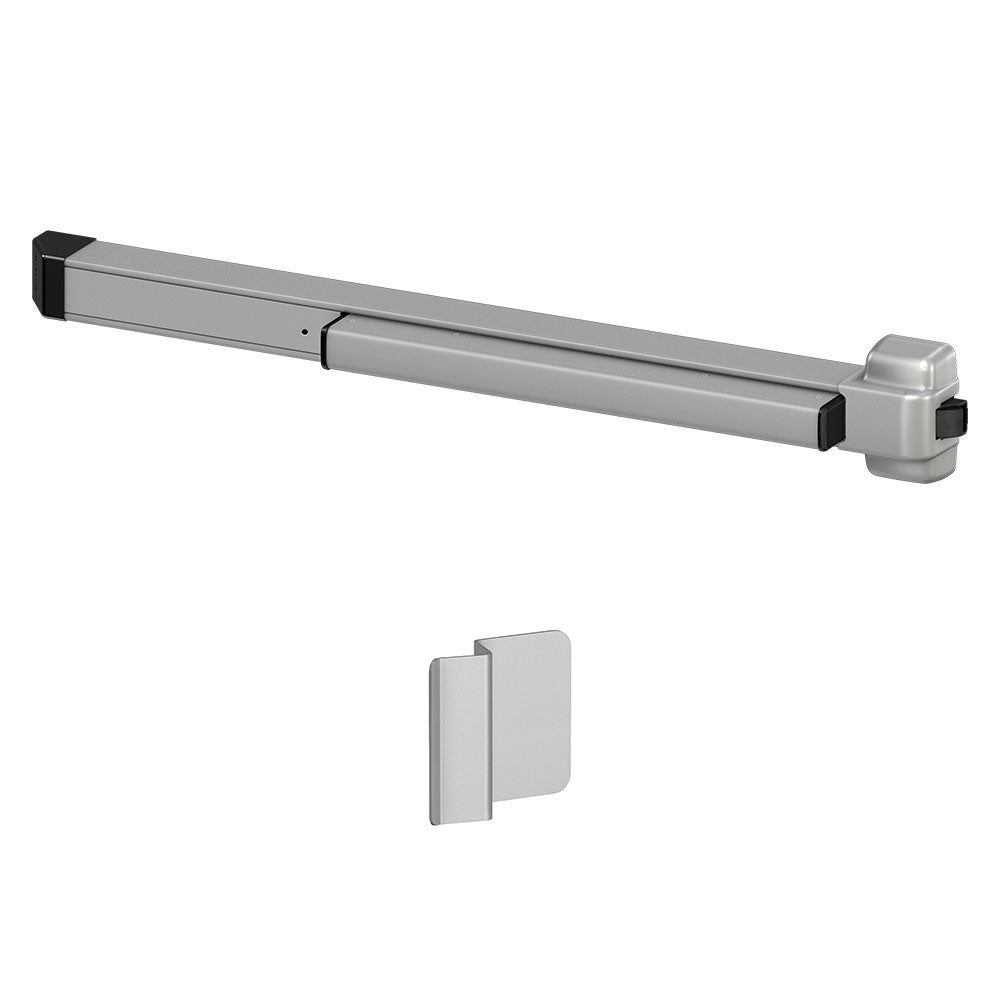

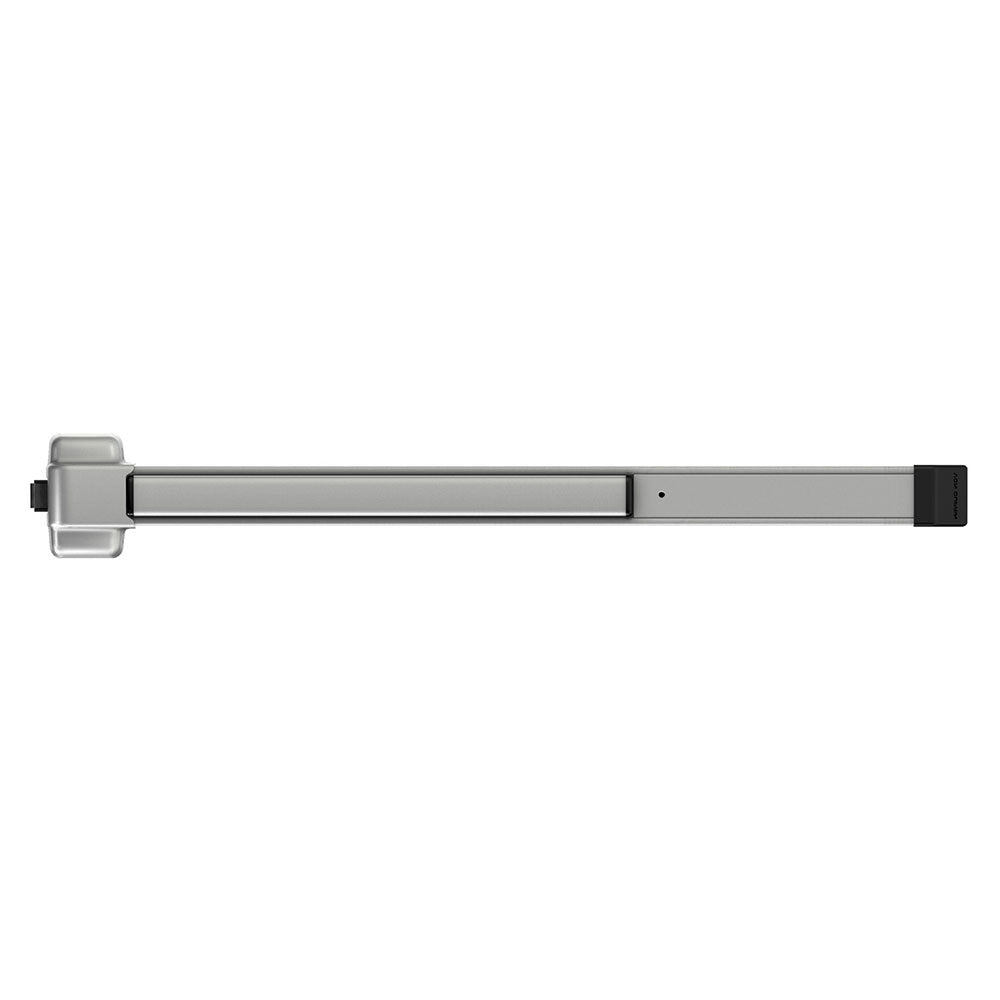

Von Duprin 22DT Grade-1 Rim Exit Device with Trim, Dummy Pull

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

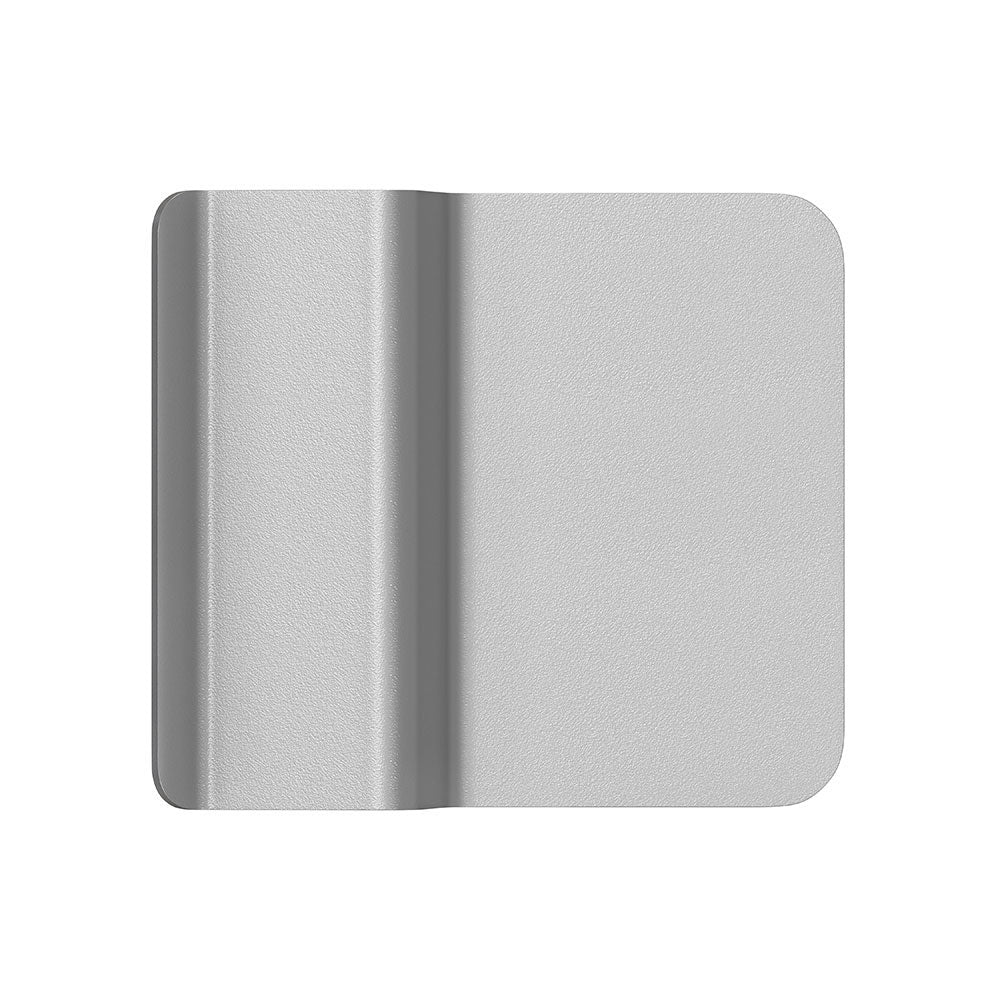

210DT Dummy Pull Trim

  • ANSI Function 02 (Pull when Dogged)
  • Escutcheon plate size: 5-3/8" x 4-25/32" x 3/32"
  • Projection: 1-31/32"

Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

210DT Dummy Pull

Hand

Non-handed

Fire-Rating

None

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

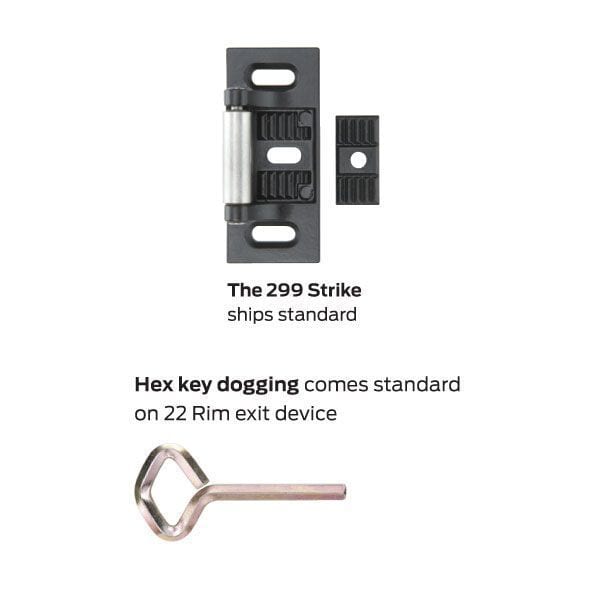

Strike

299 roller strike standard, 299F strike with fire-rated device

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Warranty

5 Year

Buy American Act Compliance

Meets Buy American Act - Made in USA
