Product Overview

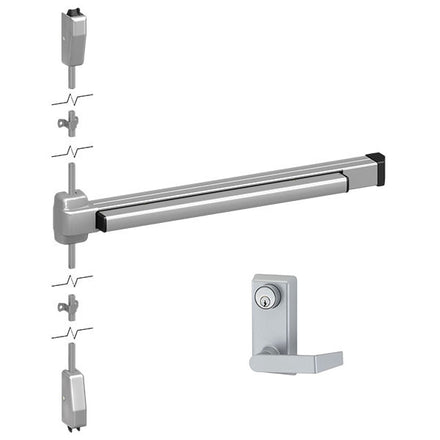

Von Duprin 2227L Grade-1 Surface Vertical Rod Panic Exit Device, with 230L Lever, 7ft Height
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.
- Standard Sizes: 3' x 7', 4' x 7' (extension rod for 8' doors available)
- Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)
230L Entry Lever Trim (Key Locks & Unlocks Lever)
- ANSI Function: 08
- Escutcheon plate size: 3" x 6-3/8" x 15/16"
- Projection: 2-5/8"
- #06 lever style furnished standard
- Mortise Cylinder must be ordered separately
| Brand | |
|---|---|
| Finishes |
689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated) |
| Length |
3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors) |
| Trim |
230L (Entry - Key Locks & Unlock Lever) |
| Cylinder |
1-1/4" Mortise Cylinder (sold separately) |
| Hand |
Device: Non-handed - Trim: Field Reversible (shipped RHR) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
| Usage |
Medium Duty |
| Fire-Rating |
2227: Non-Fire-Rated - 2227F: 3 Hour Fire-Rated |
| Latchbolt |
Deadlatching, 3/4" throw |

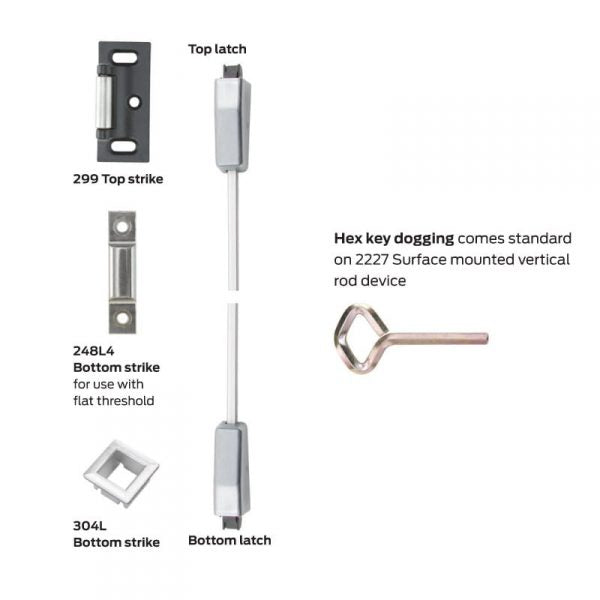

| Strikes |
299 Top Strike, 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for 8'0" doors) |
| Projections |
3-3/4" Maximum, 3" Dogged |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Stile Type |
Wide (Standard) |
| Device Type |
Surface Rod Device |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
