Product Overview

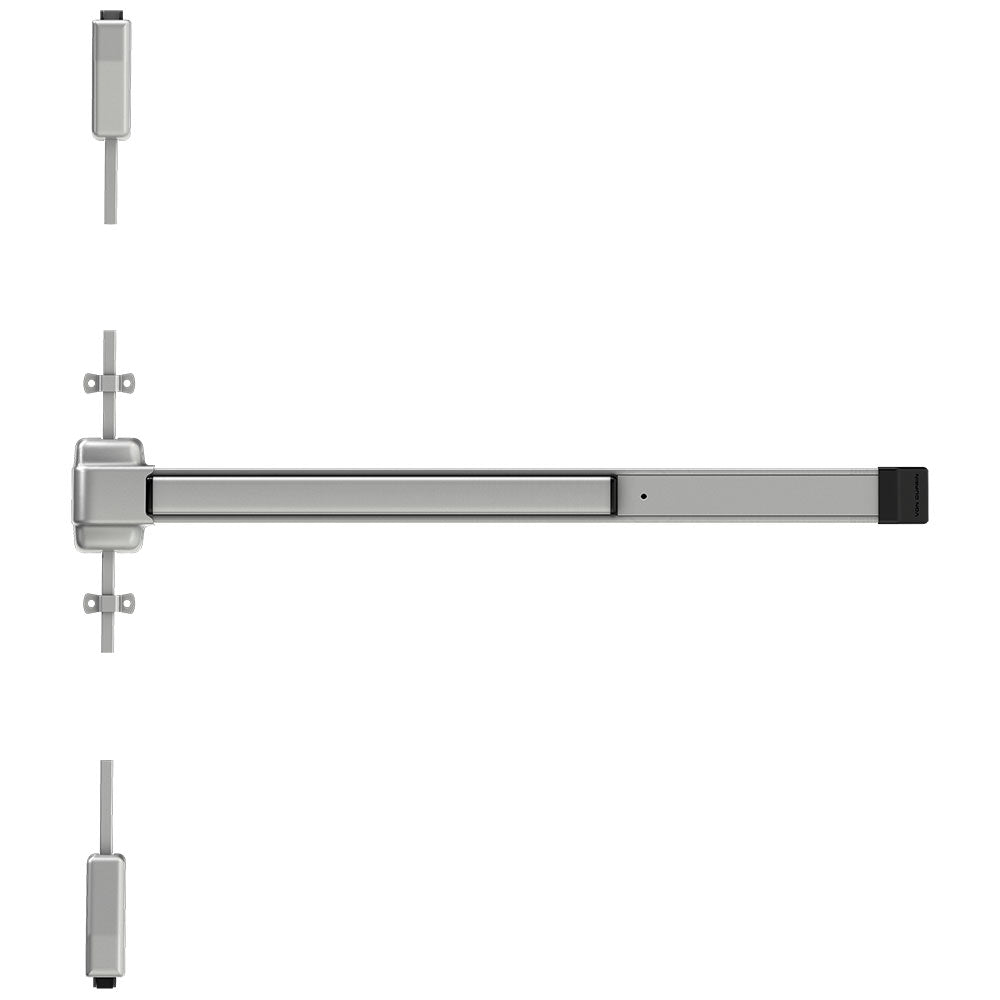

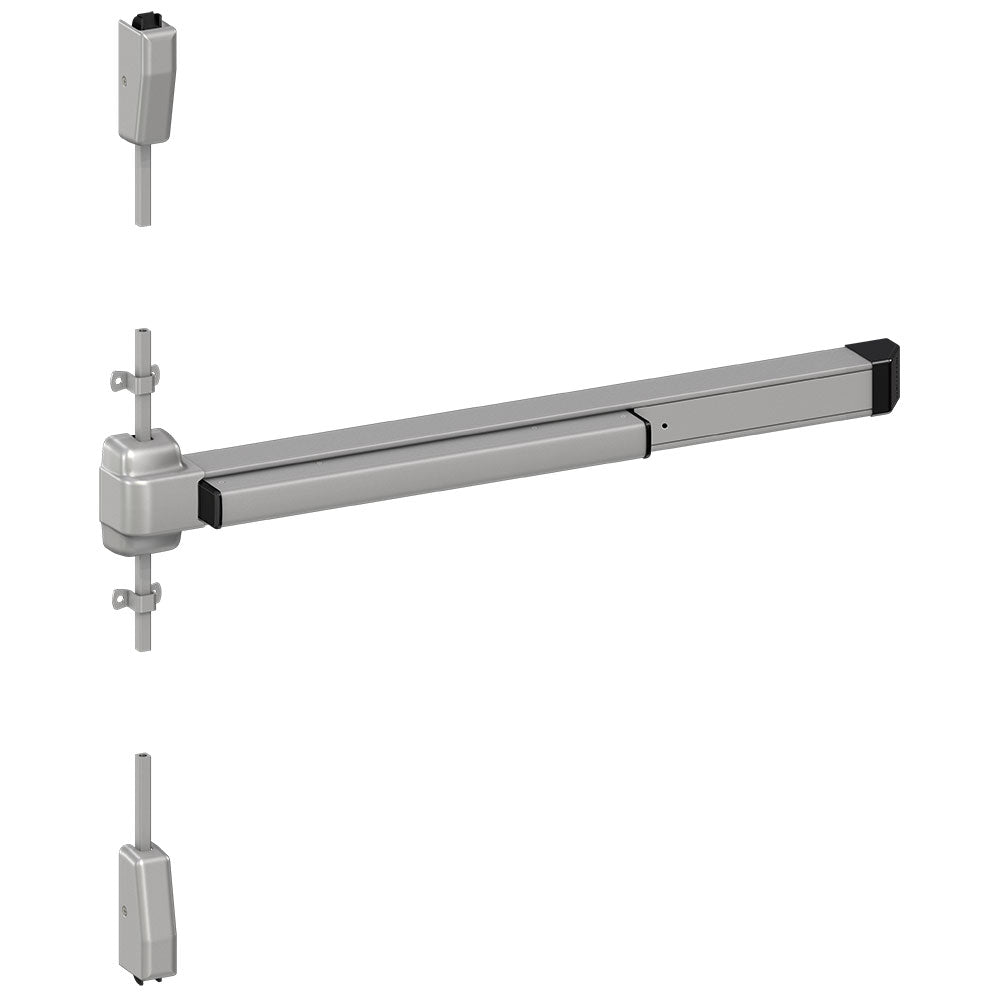

Von Duprin 2227EO Grade-1 Surface Vertical Rod Panic Exit Device, Exit Only, 7ft Height
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.
- Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
- ANSI A156.3, Grade-1 certified
- UL listed for Panic Hardware
- Standard Sizes: 3' x 7', 4' x 7' (extension rods available for doors up to 10')
| Brand | |
|---|---|
| Finishes |
526 Powder Coated Chrome, 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black |
| Length |
3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors) |
| Device Type |
Surface Rod Device |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
| Usage |
Medium Duty |
| Fire-Rating |
None |
| Hand |
Non-handed |
| Door Height |
7'0" (Standard) |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0") |
| Dogging Feature |
Half turn hex dogging standard |
| Latchbolt |
Deadlatching, 3/4" throw |
| Stile Type |
Wide (Standard) |
| Projections |
3-3/4" Maximum, 3" Dogged |
| Strikes |

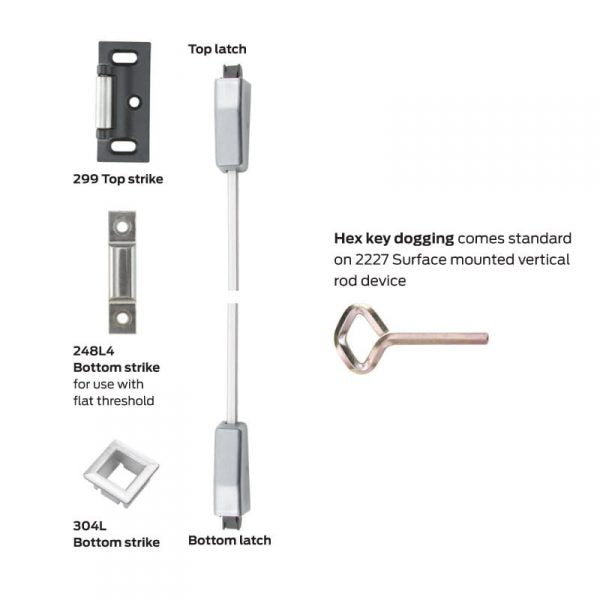

299 Top Strike, 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
