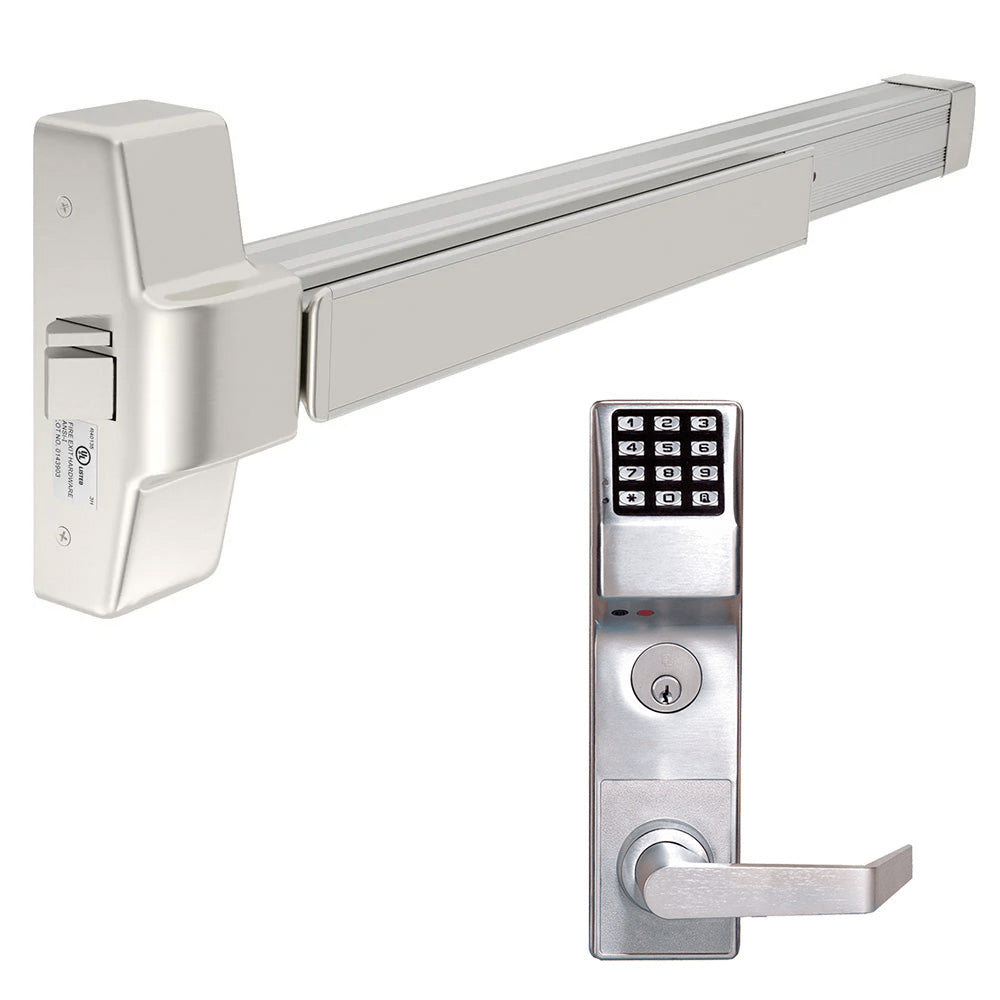

Trudoor TDE-1000R x ETDLS1G Rim Exit Device with Alarm Lock Electronic Pushbutton Keypad Trim

$1,220.96
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes Alarm Lock ETDLS1G electronic weatherproof keypad trim
  • Up to 2000 user codes, 40,000 event audit trail

Available Options:

Clear

Product Overview

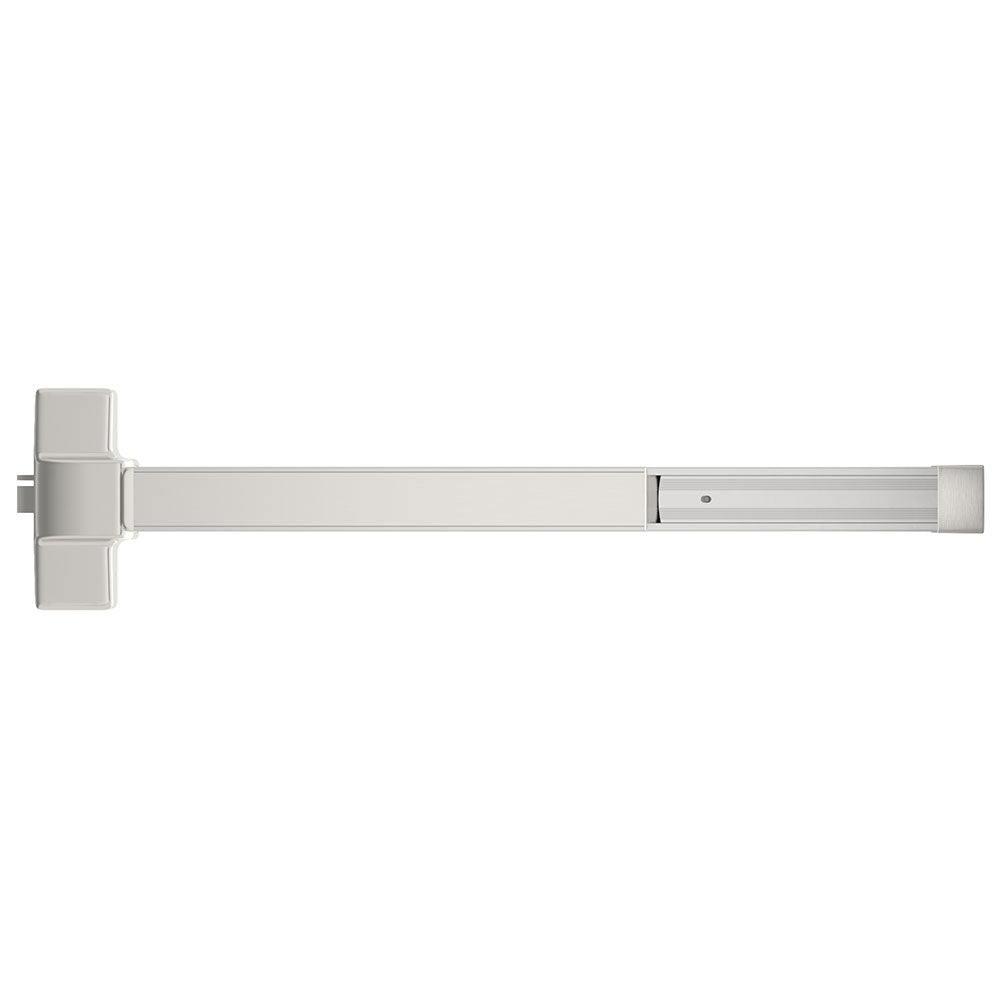

Trudoor TDE-1000R x ETDLS1G Heavy-Duty Grade-1 Rim Exit Device with Alarm Lock Electronic Pushbutton Keypad Trim with Key Override

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • UL Listing: UL Listed for panic exit hardware
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

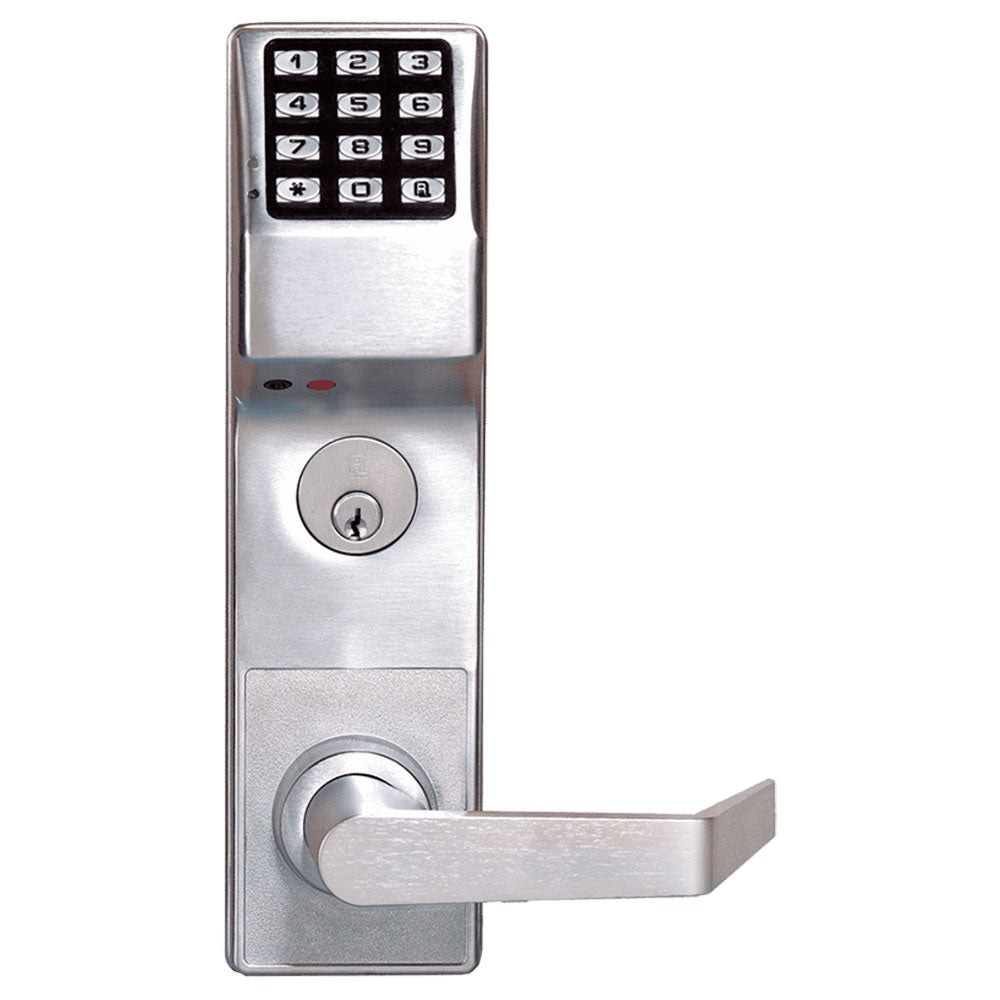

Alarm Lock ET-DL-S-1-G Weatherproof Trilogy Pushbutton Keypad Exit Device Lever Trim

  • ET - Exit trim
  • DL- Keypad only (with key override)
  • S - Straight lever design
  • 1 - 1-3/4" + 1/8" door thickness
  • G - Generic rim cylinder & adapter kit included
  • Clutch mechanism ensures long life and durability
  • Fingertip and/or Windows programmable
  • 2000 User Codes: master, manager, supervisor, and users
  • Real-time clock for up to 40,000 event time/date-stamped audit trail
  • Up to 500 lock/unlock schedules (with time zone support)
  • Rugged 12-button metal keypad
  • Non-handed; Fully field reversible
  • Includes rim cylinder (Schlage C keyway)
  • Water-sealed for exterior use, temp range +151°F to -31°F
  • 5 AA alkaline batteries (included) mounted on inside of door
Brand

Finishes

US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

Trim

Alarm Lock ETDLS1G

Cylinder

Rim Cylinder (included)

Keyway

Schlage C Keyway

Power

Battery operated; uses 5 AA batteries

Temperature Range

+151°F to -31°F

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

Fire-Rating

None

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Non-Handed, Field selected at the time of installation

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Lifetime Mechanical Warranty; 2 Year Electronic
