Product Overview

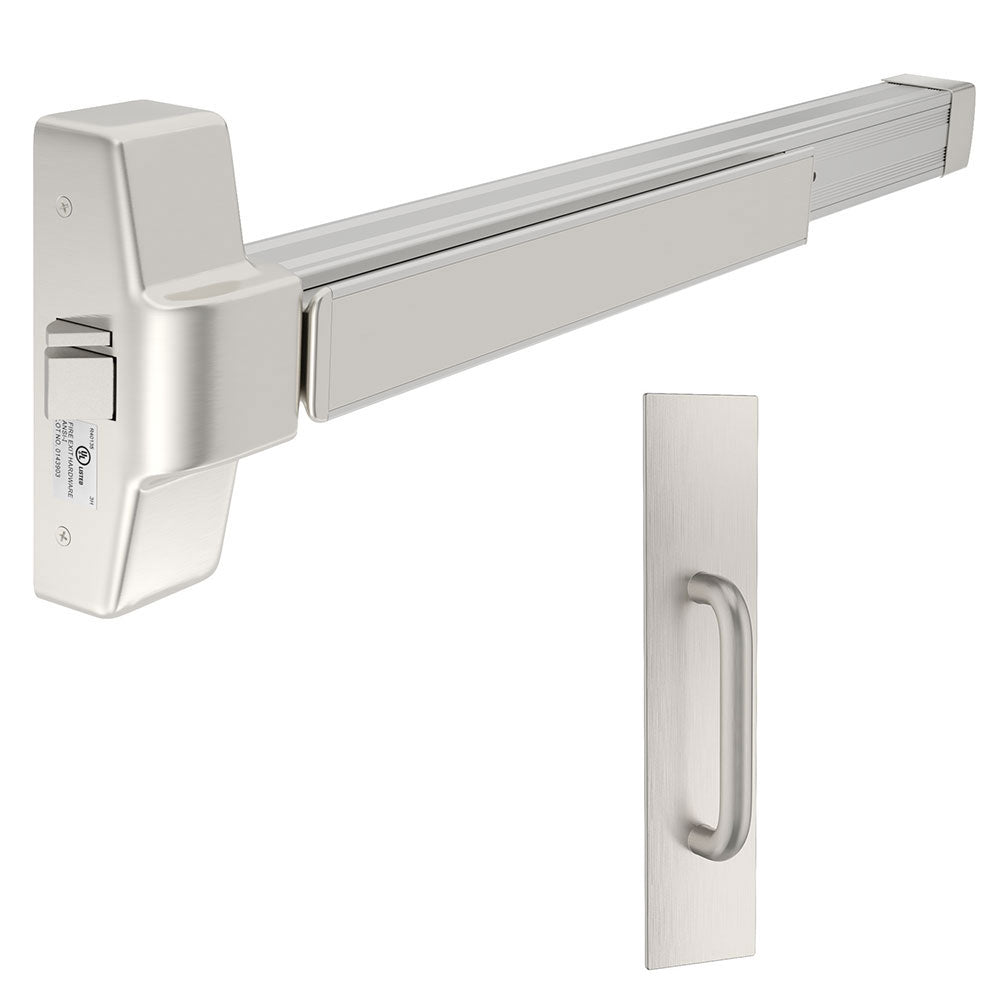

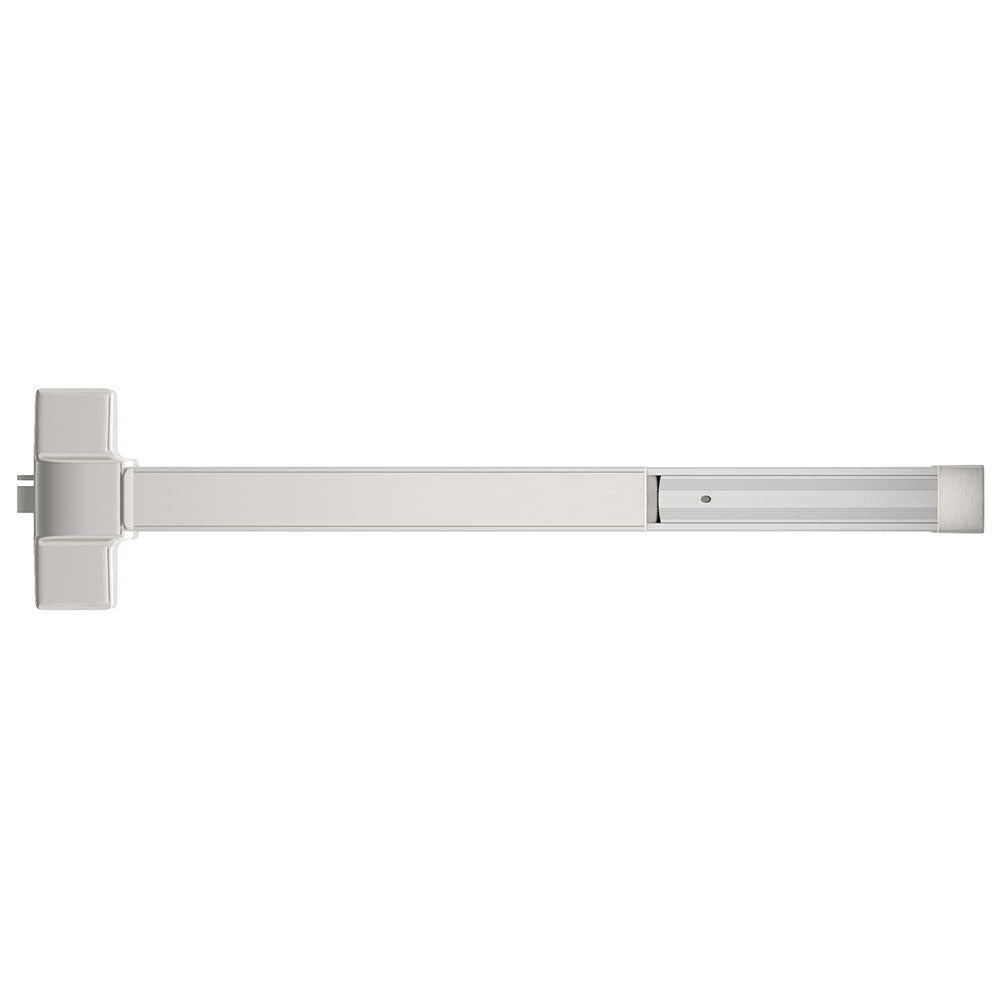

Trudoor TDE-1000R-DT Heavy-Duty Grade-1 Rim Exit Device with Dummy Pull Trim, Satin Stainless Steel
TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
- ANSI Function: 02 (Pull when dogged)
- UL Listing: UL Listed for panic exit hardware
- Designed for medium to heavy use
- Heavy-duty extruded anodized aluminum mechanism case and cover plate

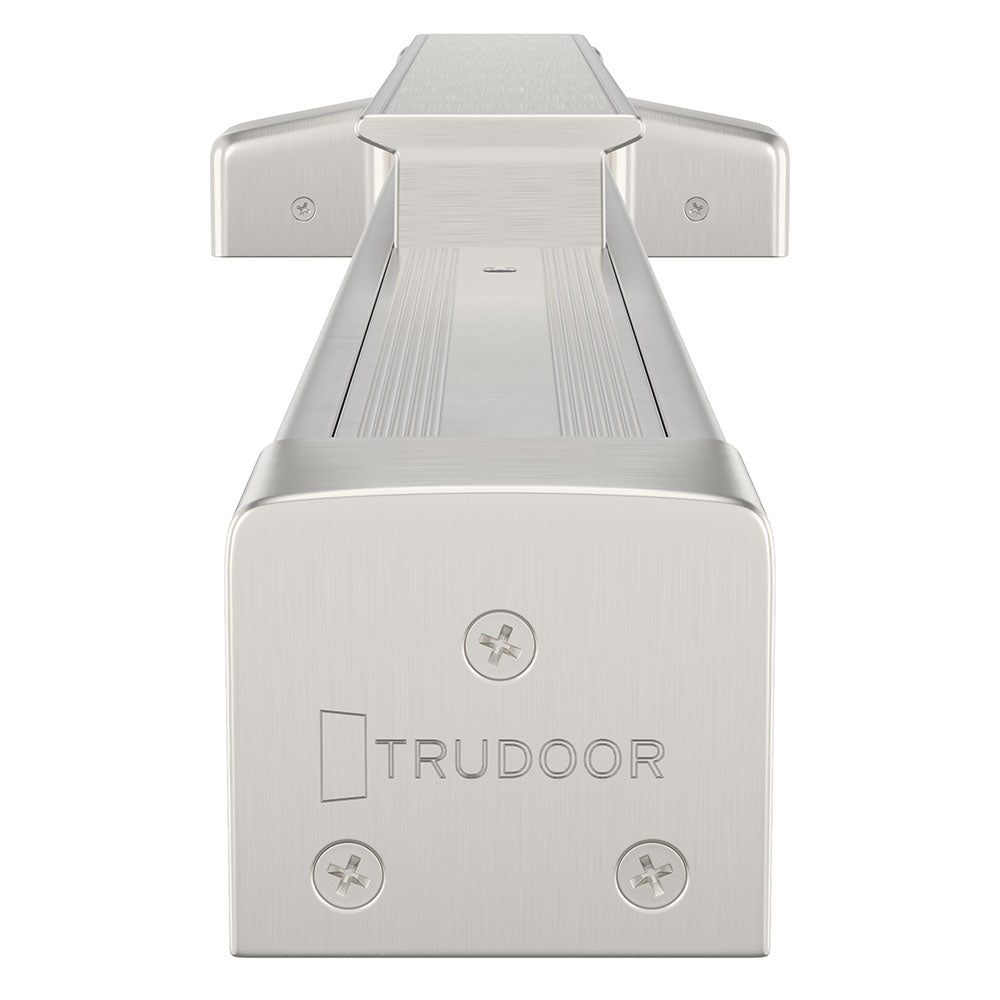

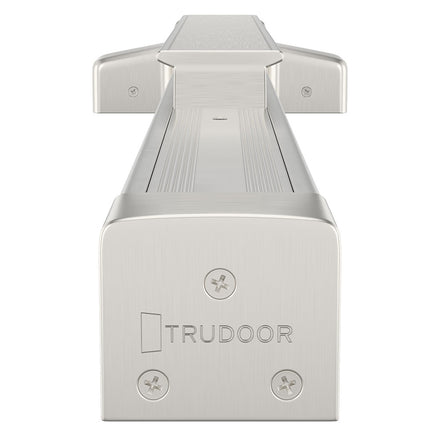

- Steel chassis, center case cover, push pad, and end cap
- Hex key dogging standard on panic exit device
- Deadlocking latchbolt with 5/8” projection
- Non-handed for easy installation
- Includes ASA strike (frame) filler plate and 161 door edge filler plate
- Device widths: 3FT (33" actual device width), 4FT (42" actual device width)

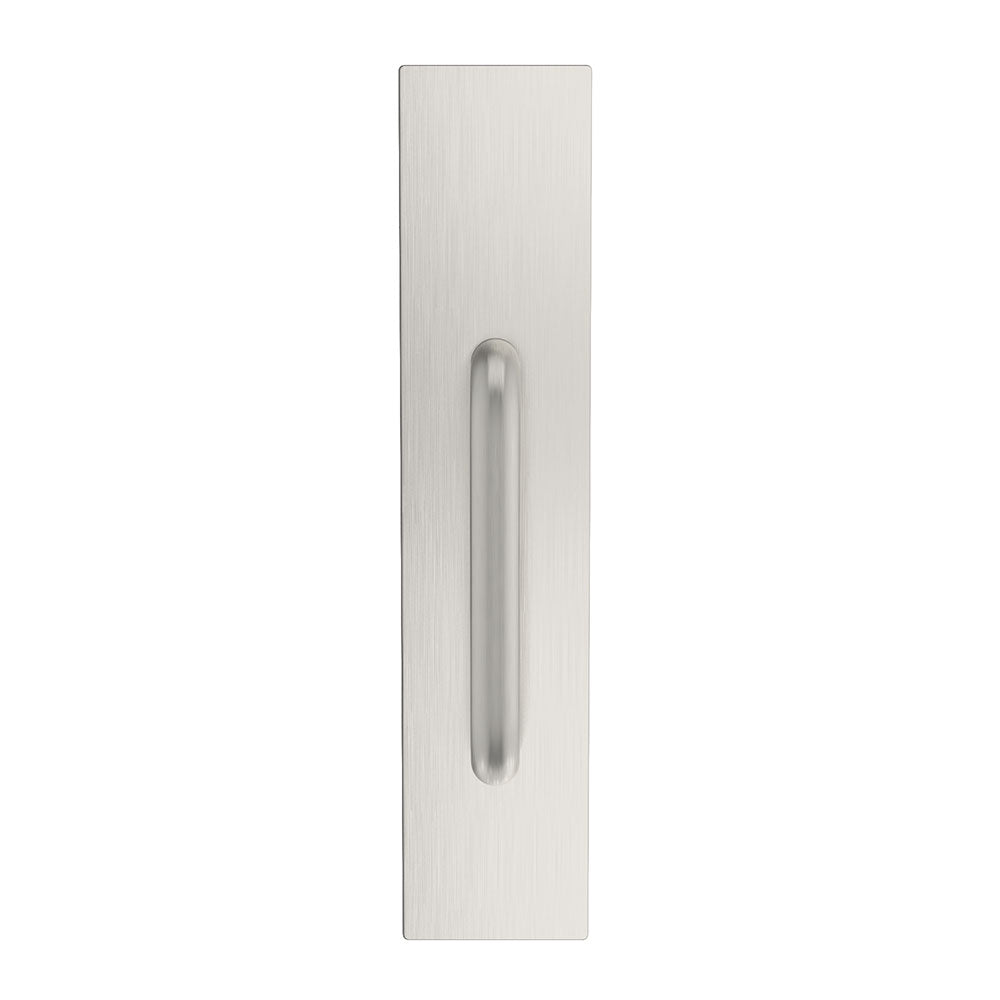

TDE-DT Dummy Pull Trim
- ANSI Function: 02 (Pull when dogged)
- An ideal choice for high-use doors that will be dogged down for push/pull applications
- 3/4″ diameter x 6-1/4″ CTC x 2-7/16″ projection
- 3″ wide x 13-7/8″ height x 1/16″ thick escutcheon plate size
- US32D/630 Stainless Steel Finish
- Thru bolts to head of exit device
- Stainless steel construction
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Length |
3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0") |
| Trim |
TDE-DT (Dummy Pull) |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.3 Grade 1 Standards |
| Usage |
Heavy Duty |
| Fire-Rating |
None |
| Handing |
Non-Handed, Field selected at the time of installation |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Latchbolt |
Deadlocking latchbolt with 5/8″ projection |
| Strike |
Roller Strike with 5/8″ projection & 1/8″ shim |
| Fasteners |
Wood, Machine & Self Tapping Machine Screws |
| Stile Type |
Wide (Standard) |
| Center Case |
8” Height x 2-7/8” Wide x 2-13/16” Thick |
| Mechanism Case |
2-3/16″ Height x 2-3/16″ Wide |
| Projections |
3-3/8″ Undogged – 2-13/16″ Dogged (Depressed) |
| Warranty |
Limited Lifetime Warranty |
