Product Overview

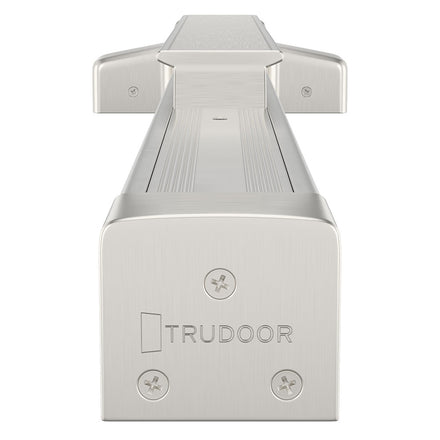

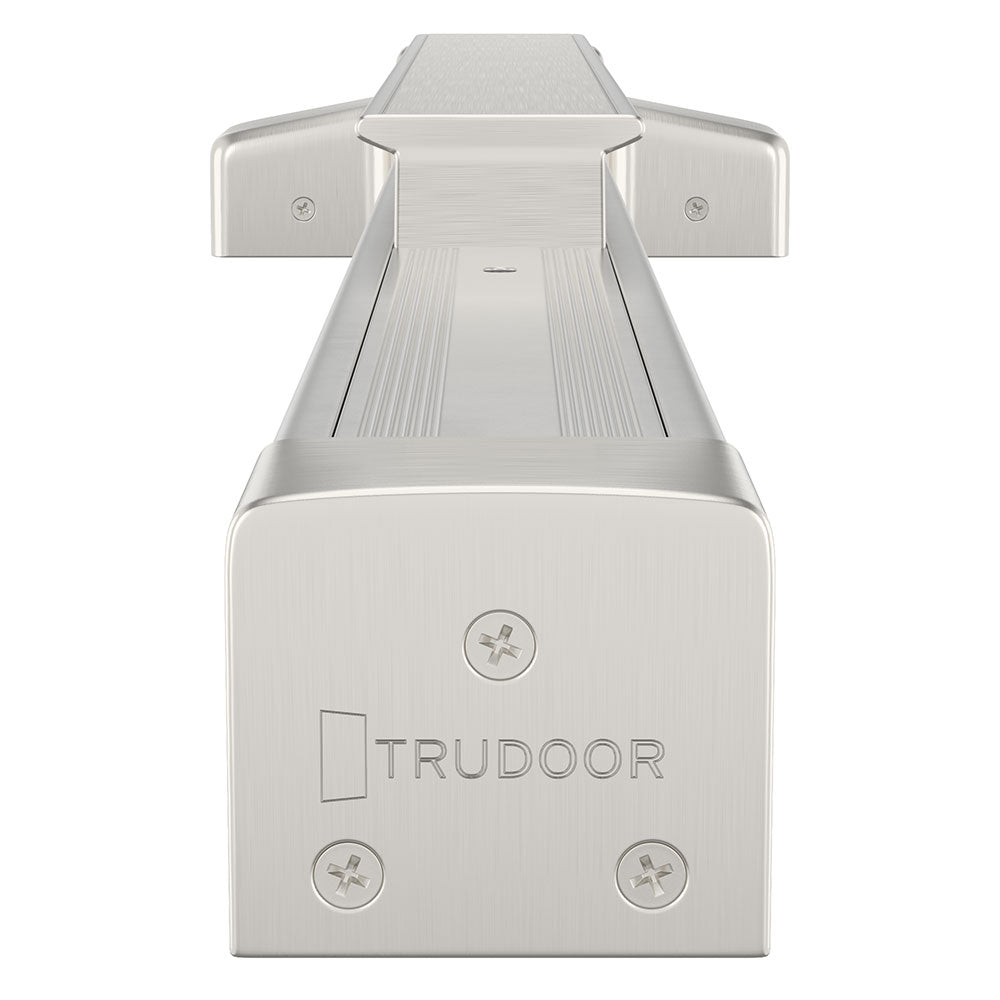

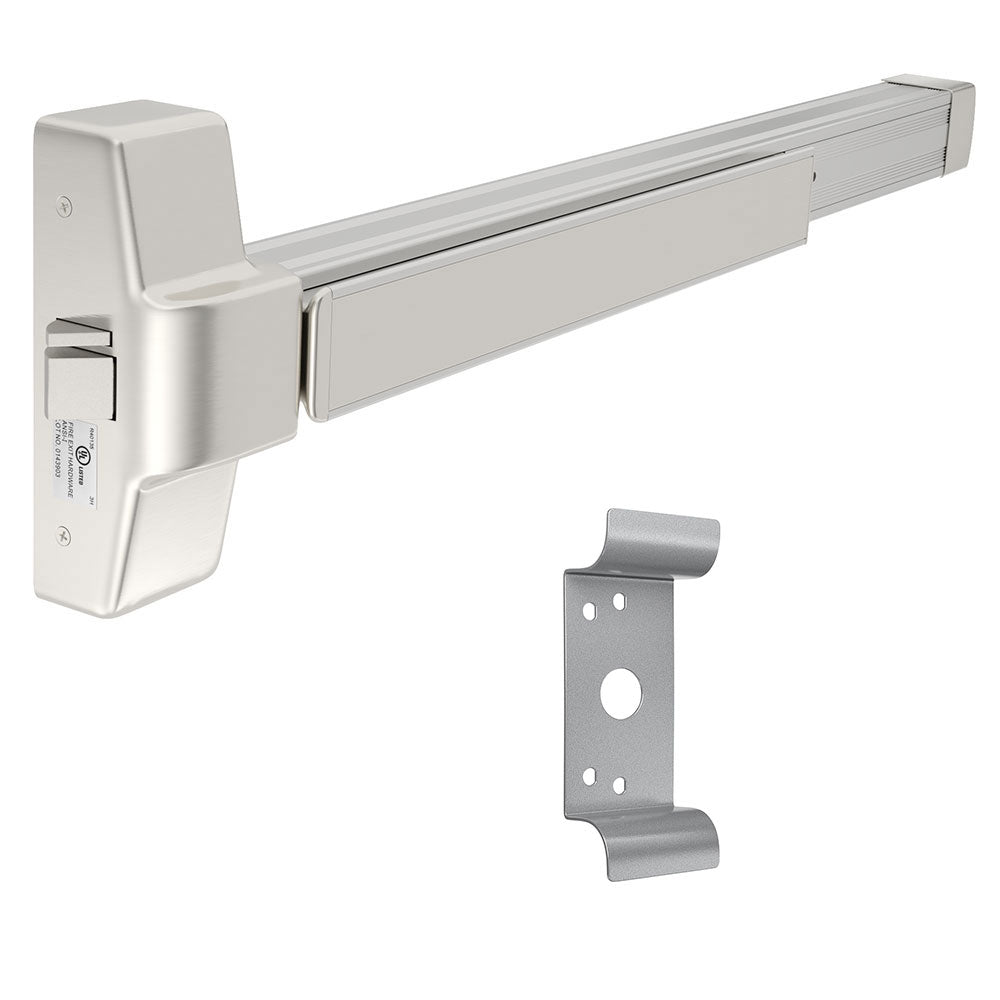

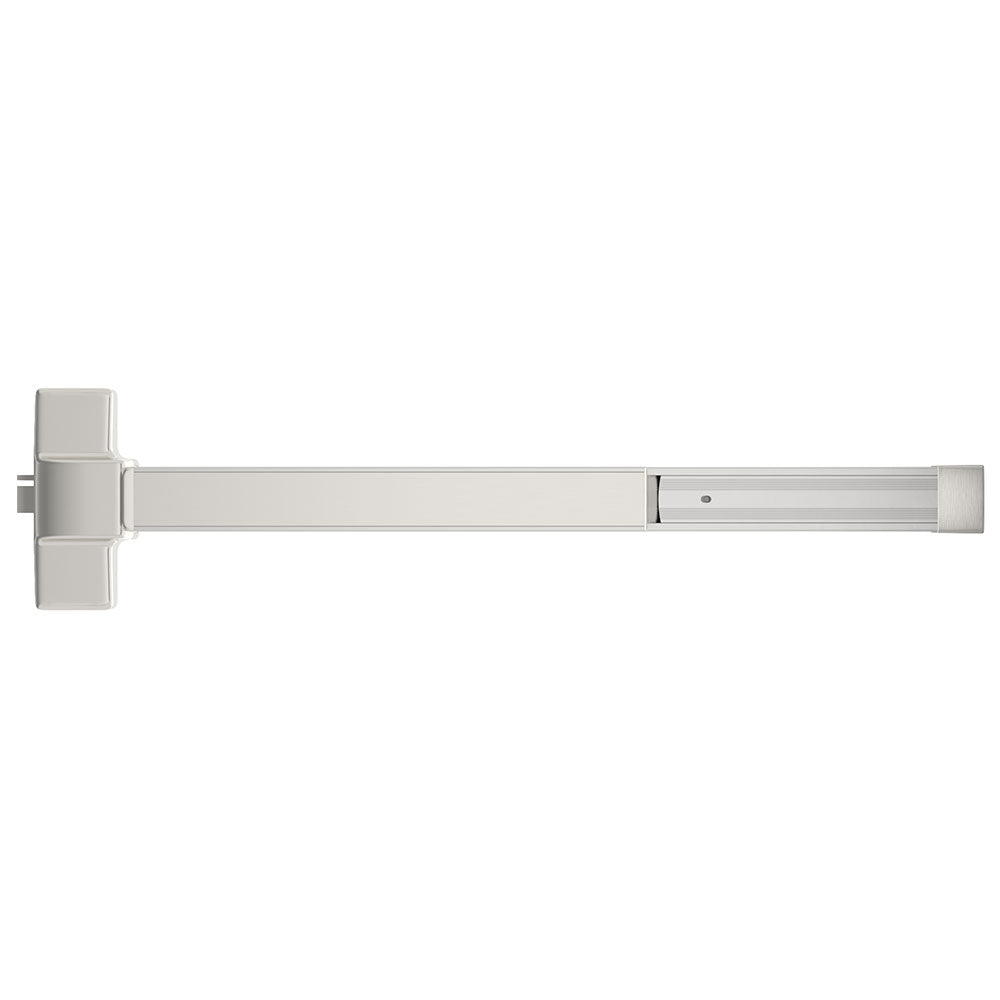

Trudoor TDE-1000R-DFP-NL Heavy-Duty Grade-1 Rim Exit Device with Double Finger Night Latch Pull Trim, Less Cylinder
TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
- ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Rim cylinder sold separately)
- UL Listing: UL Listed for panic exit hardware
- Designed for medium to heavy use
- Heavy-duty extruded anodized aluminum mechanism case and cover plate
- Steel chassis, center case cover, push pad, and end cap
- Hex key dogging standard on panic exit device
- Deadlocking latchbolt with 5/8” projection
- Non-handed for easy installation
- Includes ASA strike (frame) filler plate and 161 door edge filler plate
- Device widths: 3FT (33" actual device width), 4FT (42" actual device width)

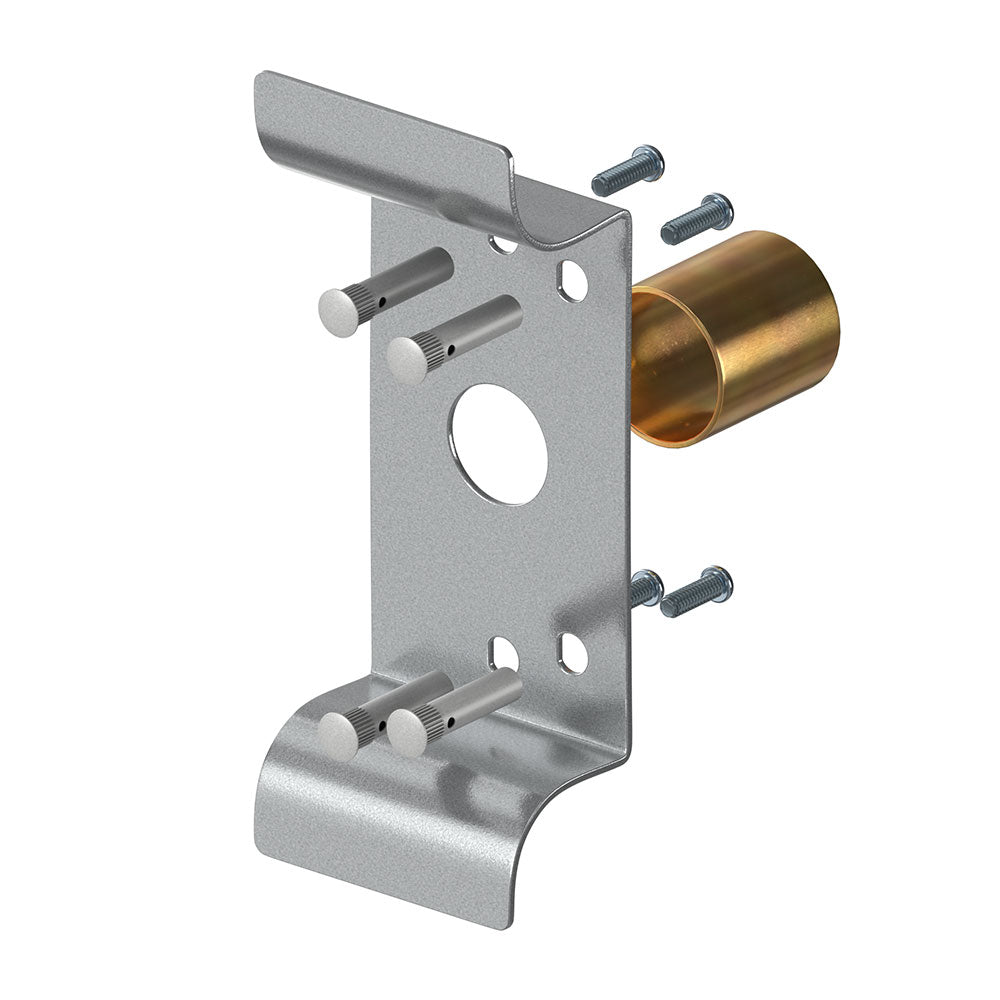

TDE-DFP-NL Night Latch Pull Trim with Cylinder Hole, Less Cylinder
- ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Rim cylinder sold separately)
- Thru bolts to head of exit device
- Pull Plate: 3″ wide x 8″ height x 1-11/16″ projection
- Will cover 161 door prep – Includes cylinder sleeve for installation into 161 door prep
- Rim cylinder required (sold separately
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel, BLK - Matte Black |
| Length |
3ft (for doors 2'8" to 3'0"), 4ft (for doors 3'4" to 4'0") |
| Includes Trim |
Yes |
| Trim |
TDE-DFP-NL (Night Latch Pull) |
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156.3 Grade 1 Standards |
| Usage |
Heavy Duty |
| Fire-Rating |
None |
| ADA Compliance |
Meets ADA requirements ANSI A117.1 with Lever Trim |
| Handing |
Non-Handed, Field selected at the time of installation |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Latchbolt |
Deadlocking latchbolt with 5/8″ projection |
| Strike |
Roller Strike with 5/8″ projection & 1/8″ shim |
| Fasteners |
Wood, Machine & Self Tapping Machine Screws |
| Stile Type |
Wide (Standard) |
| Center Case |
8” Height x 2-7/8” Wide x 2-13/16” Thick |
| Mechanism Case |
2-3/16″ Height x 2-3/16″ Wide |
| Projections |
3-3/8″ Undogged – 2-13/16″ Dogged (Depressed) |
| Warranty |
Limited Lifetime Warranty |
