Trudoor TDC-100 Grade-1 Door Closer

Trudoor's Choice for standard duty closers
$69.02
Usually Ships:  Same Day
  • Meets ANSI A156.4 Grade 1 Standards
  • Fully Adjustable Spring Power - Size 1 to 6
  • Tri-Packed for Regular, Top Jamb, and Parallel Arm Installations

Available Options:

Clear

Product Overview

Trudoor TDC-100 Grade-1 Commercial Door Closer, Cast Aluminum Body, Regular Arm with Parallel Arm Bracket, Adjustable Size 1-6, Less Cover

Trudoor® TDC-100 door closers are an ideal choice for a wide variety of light to medium-duty commercial applications including aluminum storefronts, where durability, reliability, and code compliance are required at an economical price. TDC-100 surface mount hydraulic door closers are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial buildings.

  • Quality construction and reliability at an affordable price

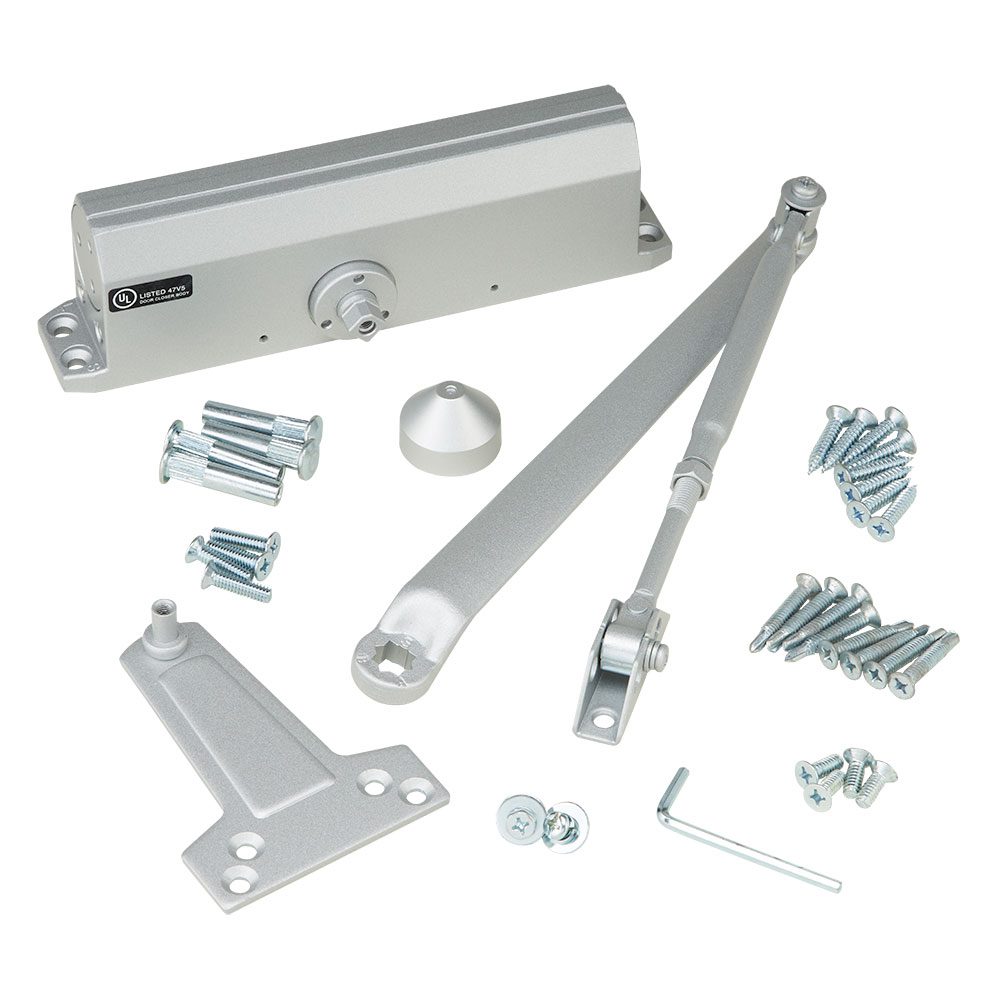

  • Includes screws and brackets for regular, top jamb and parallel arm installations
  • Adjustable spring power from Size 1 to 6 – preset to size 3
  • Heavy-duty cast aluminum closer body, rack & pinion construction
  • Common hole pattern, retrofits Norton 1600
  • 2-7/8″ Projection
  • AL/689 Aluminum, BLK/693 Black, and DKBRZ/695 Finishes

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • UL Listed for “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
  • Meets ADA and ANSI A117.1 Accessibility Codes

trudoor-certs

Cross Reference

The TDC-100 can be specified as a substitute and/or a direct replacement (shares the same hole pattern) for: Accentra/Yale 1101/YDC201, Cal-Royal 300/500PBF, Design Hardware 116, Deltana DC10, Dexter DCL2000, Dorma 7300, Dormakaba/Stanley QDC311, Falcon SC61A, Global TC201, Hager 5300, International 8051-TP, LCN 1250/1260, Norton 1601, PDQ 3101, Tell 600, Townsteel TDC-54 / TDC-90

Brand

Finishes

695 Dark Bronze (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated)

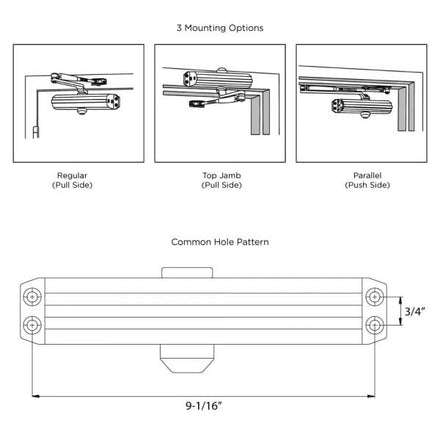

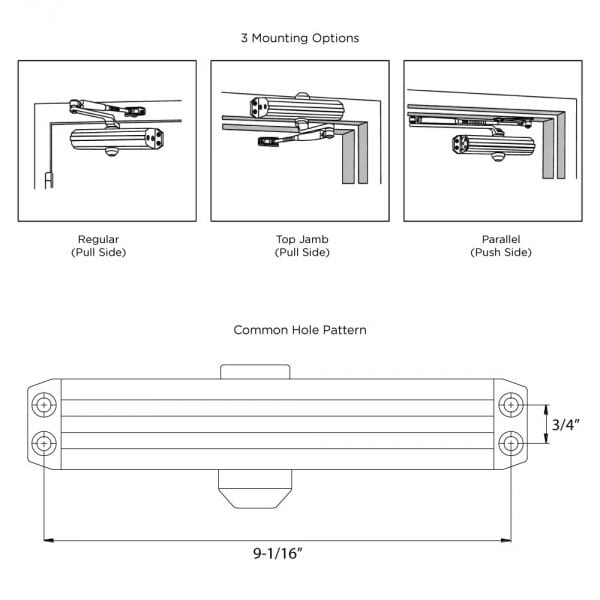

Templating (Hole Pattern)

3/4" x 9-1/16"

Usage

Standard Duty

Mounting Options

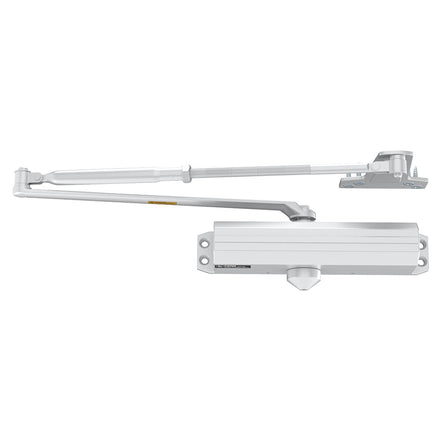

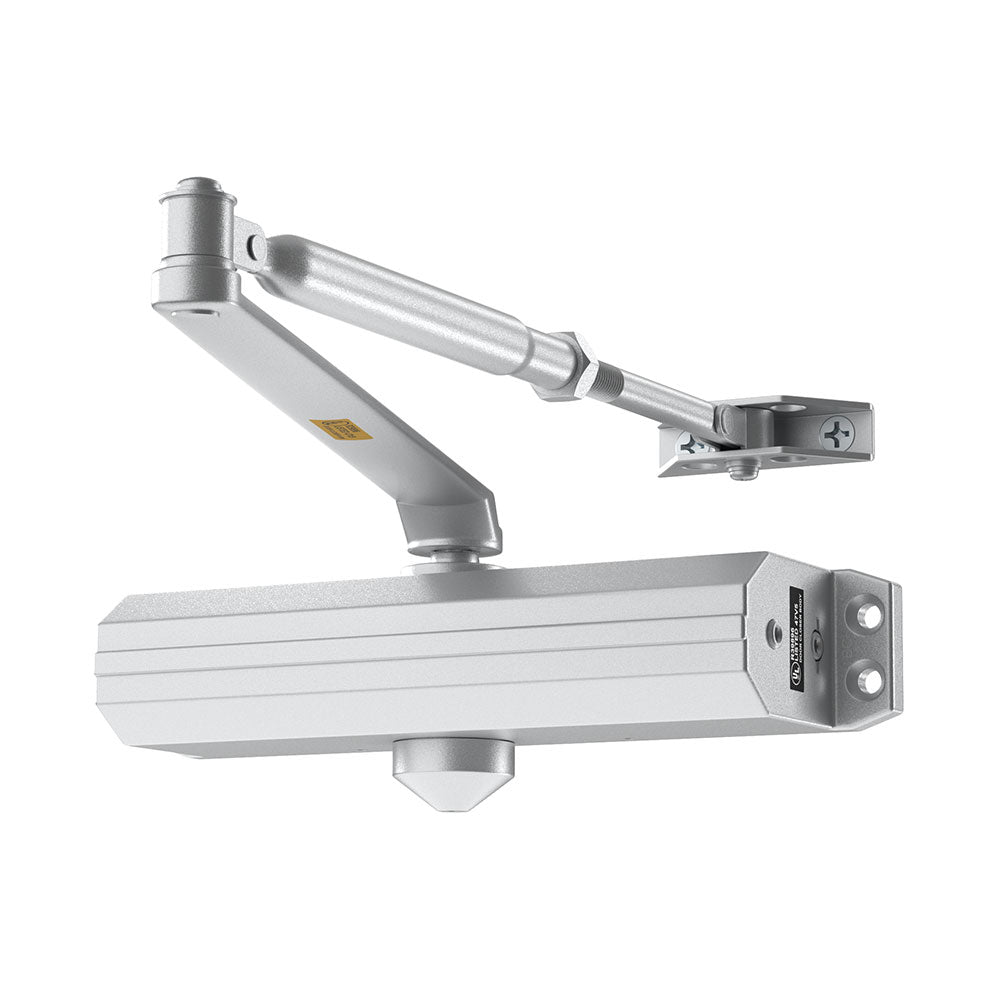

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Piston, Spindle, Spring

Heat treated heavy-duty steel piston, spindle and spring

Cover

None

Min. Top Rail

Regular: 3-1/8” – Top Jamb: 1-7/8” – Parallel Arm: 5-3/4”

Fasteners

Thru bolts with machine screws, wood screws & Self tapping machine screws

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed for “A” Label 3 hour fire doors, UL10C positive pressure rated

Warranty

Limited Lifetime Warranty
