Trudoor

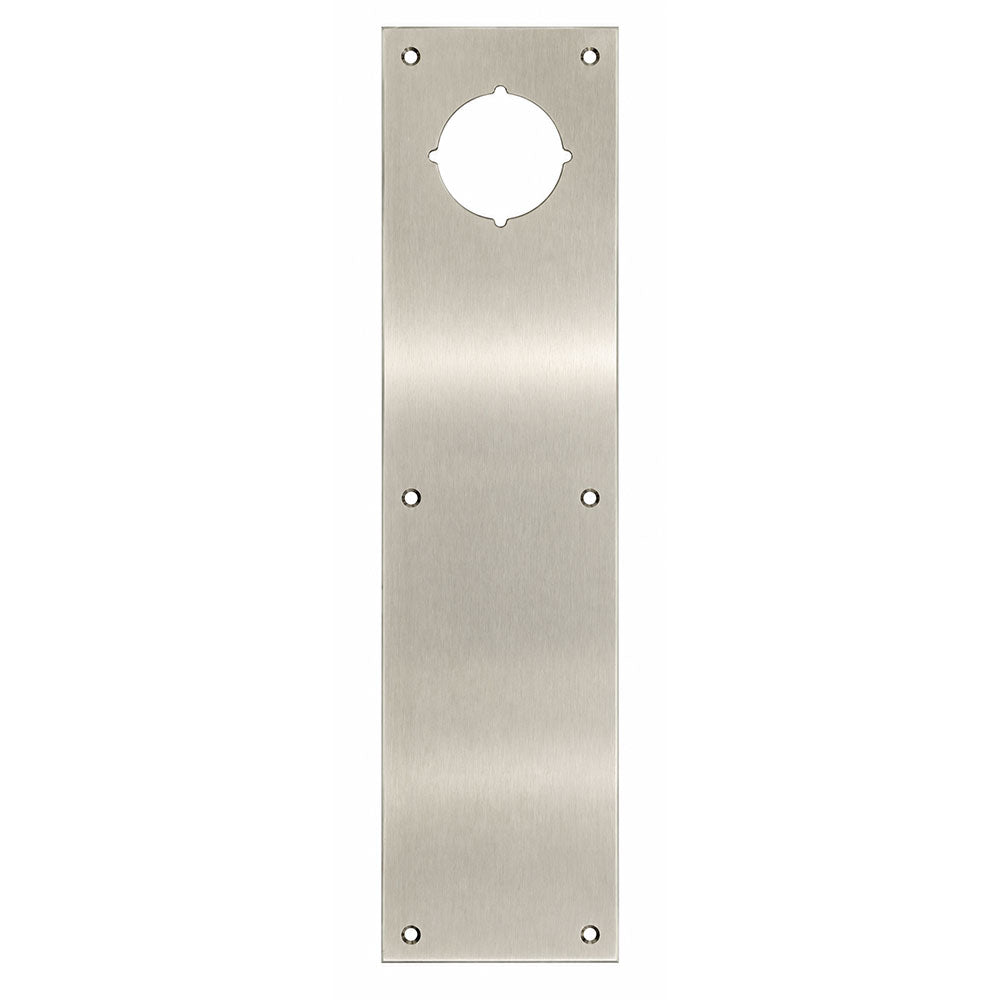

Trudoor TD-PUSH-DB Push Plate with 2-1/8" Deadbolt Hole - 4" x 16" x .050"

$10.78
Usually Ships:  Same Day

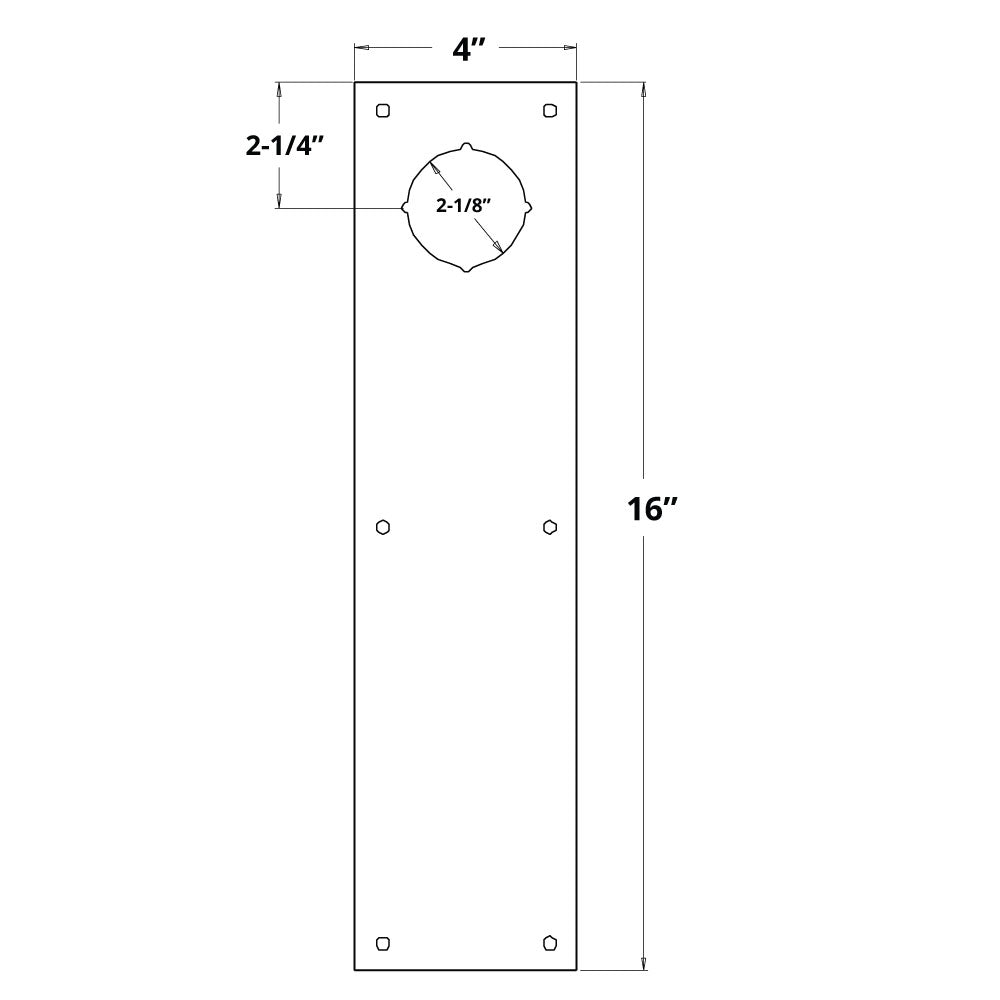

  • Push Plate with 2-1/8" deadbolt hole
  • 4″ x 16″ x .050″ plate size
  • Hole at 2-1/4" on center from the top

Available Options:

Clear

Product Overview

Trudoor TD-PUSHP-DB Push Plate, 4" x 16" x 0.050", 2-1/8" Hole for Deadbolt

TD-PUSH-DB push plates can be installed on metal or wood doors and feature a 2-1/8" hole for a deadbolt lock. Push plates protect non-latching or push/pull doors from dirt and damage. Combine with the TD-PUSH-DB push plate.

  • Size: 4" x 16"
  • Thickness: .050”
  • 2-1/8" deadbolt hole at 2-1/4" on center from the top
  • Material: Stainless steel
  • Meets ANSI A156.6: J301
  • Includes countersunk holes and screws
  • For use with commercial hollow metal doors and wood doors

Cross Reference

TD-PUSHP can be specified as a substitute and/or replacement for: Don-Jo CFK71

Brand

Finishes

US32D (630) Satin Stainless Steel, BLK Black

Plate Size

4" x 16"

ANSI Grade

Meets ANSI A156.06, Grade 1

Fasteners

#6X5/8 oval head screws

Warranty

Limited Lifetime Warranty
