Trudoor

Trudoor TD-PP-SET ADA Pull Plate x Push Plate Set - 4" x 16" with 3/4" Round Pull, 8" CTC

$51.83
Usually Ships:  Same Day
  • Includes (1) TD-PULLP pull plate and (1) TD-PUSHP push plate
  • 3/4" diameter round pull, 8" CTC, 4" x 16" plate size
  • ADA compliant, 1-7/8" clearance

Available Options:

Clear

Product Overview

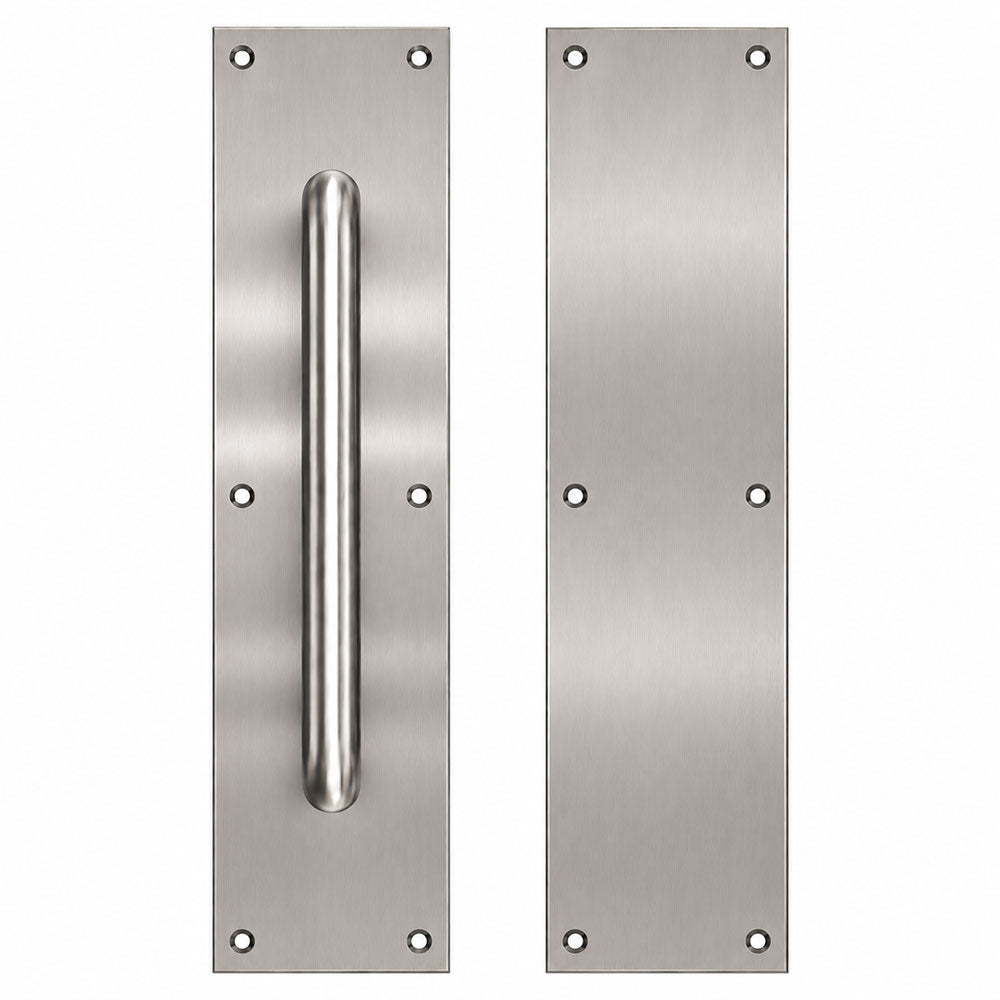

Trudoor TD-PP-SET Push/Pull Set, Pull Plate, 4″ x 16″, 3/4" Diameter Round Pull, 8" CTC, Push Plate 4" x 16"

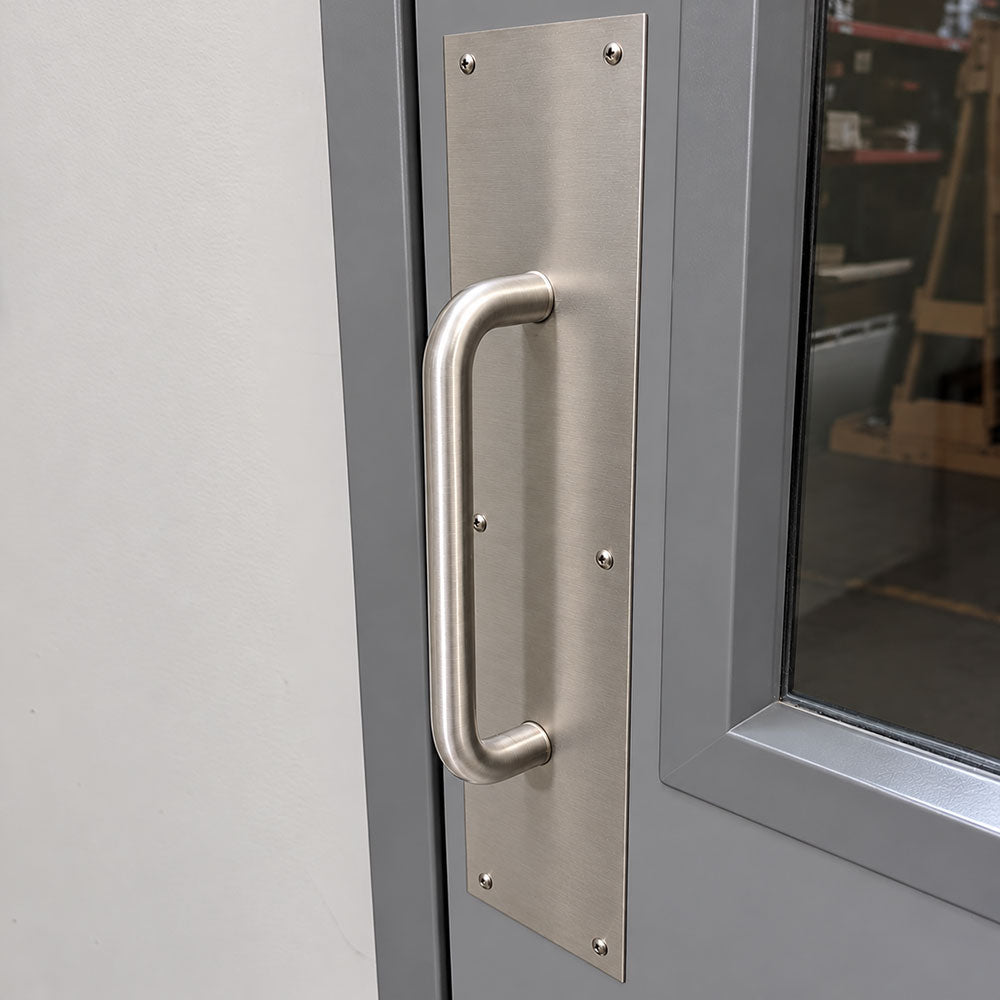

Trudoor push and pull plates can be installed on metal or wood doors. Protects doors from dirt and damage.

  • Includes (1) TD-PULLP pull plate and (1) TD-PUSHP push plate
  • Plate sizes: 4" Wide x 16" High x .05" Thick
  • Meets ANSI A156.06: J405 and ANSI A156.6: J301
  • ADA compliant pull, 1-7/8" clearance from plate to handle
  • 2-5/8" projection
  • Includes mounting hardware for 1-3/4" thick door
  • Includes countersunk holes
  • For use with commercial hollow metal doors and wood doors
  • Material: Stainless Steel
  • Finishes: US32D Satin Stainless Steel and BLK Flat Black

Cross Reference

TD-PULLP can be specified as a substitute and/or replacement for: Cal-Royal 1003ADA, Burns 5425B, Design Hardware PULLP-416, Don-Jo 7116, Hager 33g, Ives 8302-8, PDQ 86-3-2D, Rockwood 107X70C, Tell DT100148, Trimco 1017-3B

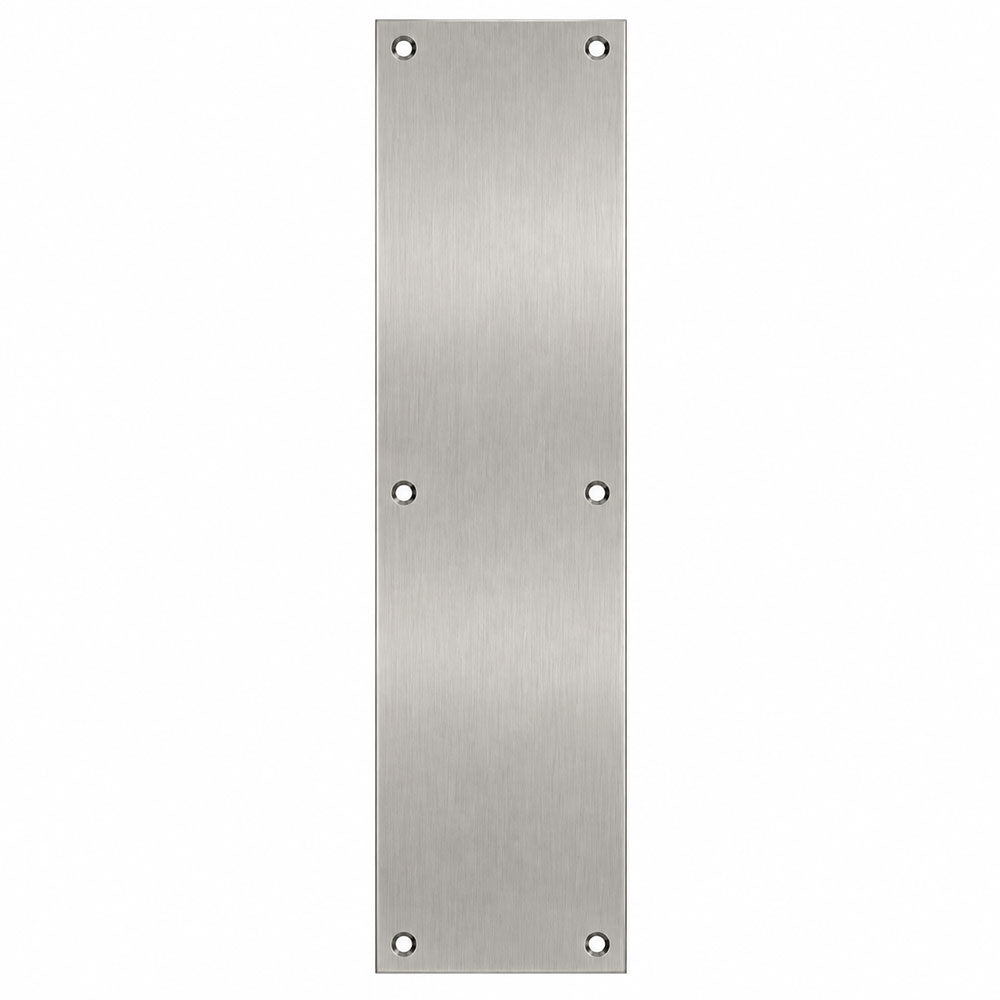

TD-PUSHP can be specified as a substitute and/or replacement for: Cal-Royal PSPL4016, Design Hardware PUSHPL-416, Don-Jo 71, Hager 30S, Ives 8200, PDQ 963, Rockwood 70C, Tell DT100149, Trimco 1001-3

Brand

Finishes

US32D (630) Satin Stainless Steel, BLK Black

Plate Size

4" x 16"

Pull Diameter

3/4"

Center to Center (CTC)

8"

ANSI/BHMA Standard

Meets ANSI A156.06: J405 and ANSI A156.6: J301

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
