Trudoor ML113 Corridor Mortise Lock with Escutcheon Lever Trim

$273.37
Usually Ships:  Same Day
  • Extra Heavy Duty, ANSI/BHMA Grade-1
  • ANSI Function F13 - Corridor
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

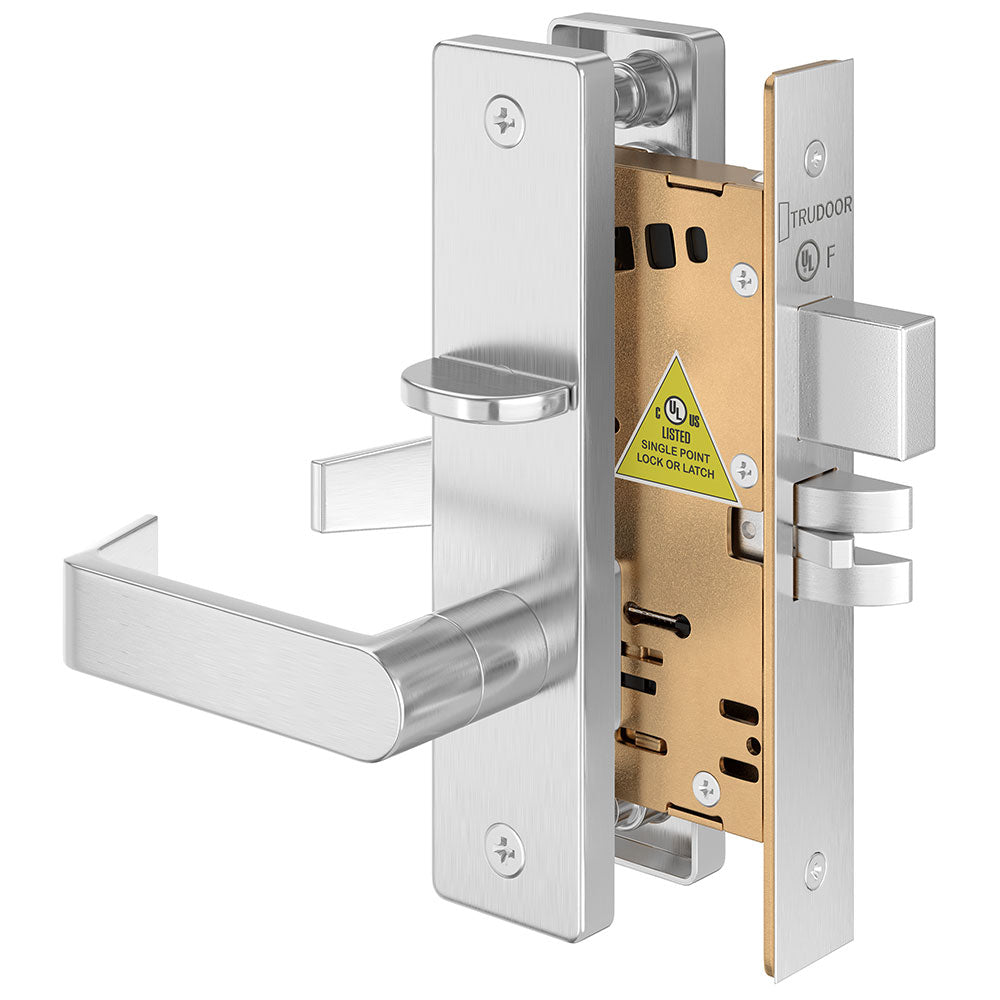

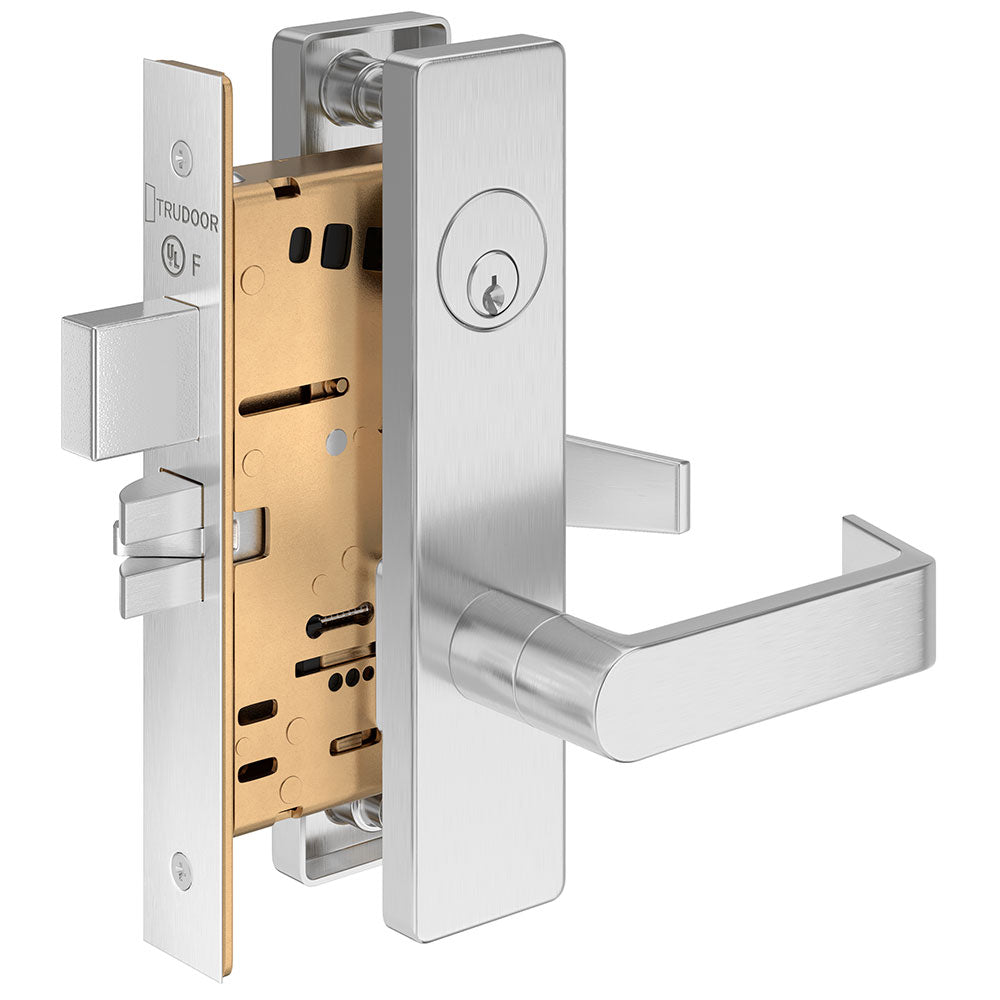

Trudoor ML1 Series Mortise Lock with ESC Escutcheon Lever Trim, ML113 Corridor Function (ANSI F13)

The Trudoor® ML1 Series is our heaviest-duty lock and an ideal choice for a wide variety of applications that require consistent reliability and easy installation at an economical price. ML1 locks are for use on exterior or interior doors in office buildings, schools, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.

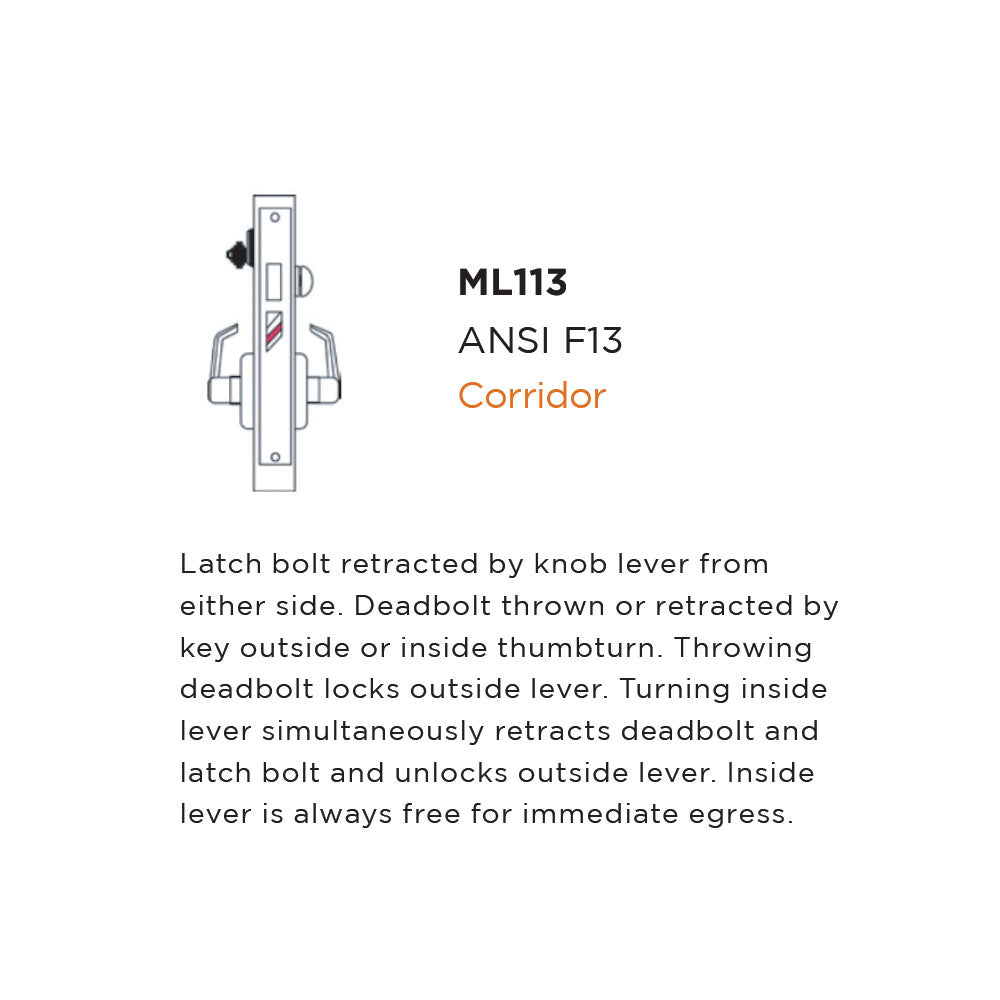

Corridor, ANSI Function F13: Latch bolt retracted by lever from either side. Deadbolt thrown or retracted by key outside or inside thumbturn. Throwing deadbolt locks outside lever. Turning inside ever simultaneously retracts deadbolt and latch bolt and unlocks outside ever. Inside lever is always free for immediate egress.

Features:

  • Extra Heavy Duty, ANSI/BHMA A156.13 - 2017 Grade 1 Operational and Security
  • Rust-proof heavy-duty zinc chromate steel lock case
  • Forged brass lever handles
  • Individual springs to prevent lever sag
  • Heavy-duty 3/4" latch bolt with anti-friction latch, easily reversible
  • 2 3/4" backset, for 1-3/4" thick metal or wood doors
  • Can be easily re-handed in the field
  • Includes 1-1/8" conventional mortise cylinder with cloverleaf cam, Schlage C keyway, keyed different, with 2 keys
  • Door prep: ANSI/BHMA A156.115 or A156.115W modified per template (see template)

Code Compliance

  • Meets ANSI/BHMA A156.13 - 2017 Grade 1 standards
  • Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, exceeds 1,000,000 cycles
  • UL listed for “A” label 3 hour fire-rated doors, conforms to UL10C and UBC 7-2-1997
  • Meets ADA and ANSI A117.1 accessibility codes
  • Meets California code for 1/2" lever return to door face

Cross Reference

The ML113 can be specified as a substitute for: Accentra/Yale 8822FL, Arrow BM19, Best 45HT, Cal-Royal NM8456 / SC8456, Corbin Russwin ML2065, Design Hardware M-13, Dorma M1956, Falcon MA571, Hager 3856S, Marks 5FW, PDQ MR136, Sargent 8225, Schlage PM456 / L9456

Brand

Finishes

626 Satin Chrome

Lock Function

Corridor

ANSI Function

F13

Usage

Heavy Duty

ANSI/BHMA Standard

Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards

Fire-Rating

UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Cylinder Format

Conventional

Keyway

Schlage C Keyway

Trim

ESC - Escutcheon Lever Trim

Latchbolt

Heavy duty ¾" latch bolt with anti-friction latch

Backset

2-3/4"

Case Size

5-31/32" H x 4-3/32" W x 27/32" D

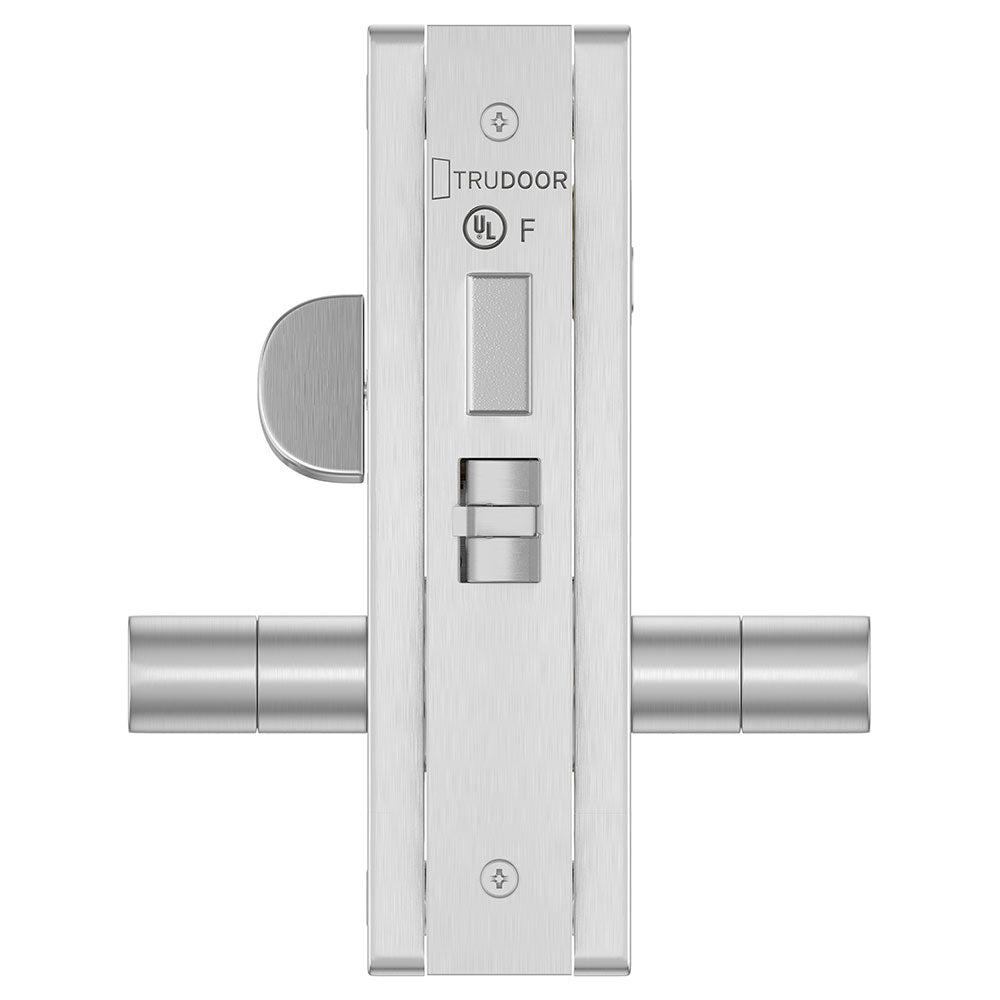

Armored Front

1-1/4" W x 8" H x 3/32" D

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Door Thickness

1-3/4"

Handing

Field-reversible handing without opening lock case

Warranty

Limited Lifetime Warranty
