Trans Atlantic

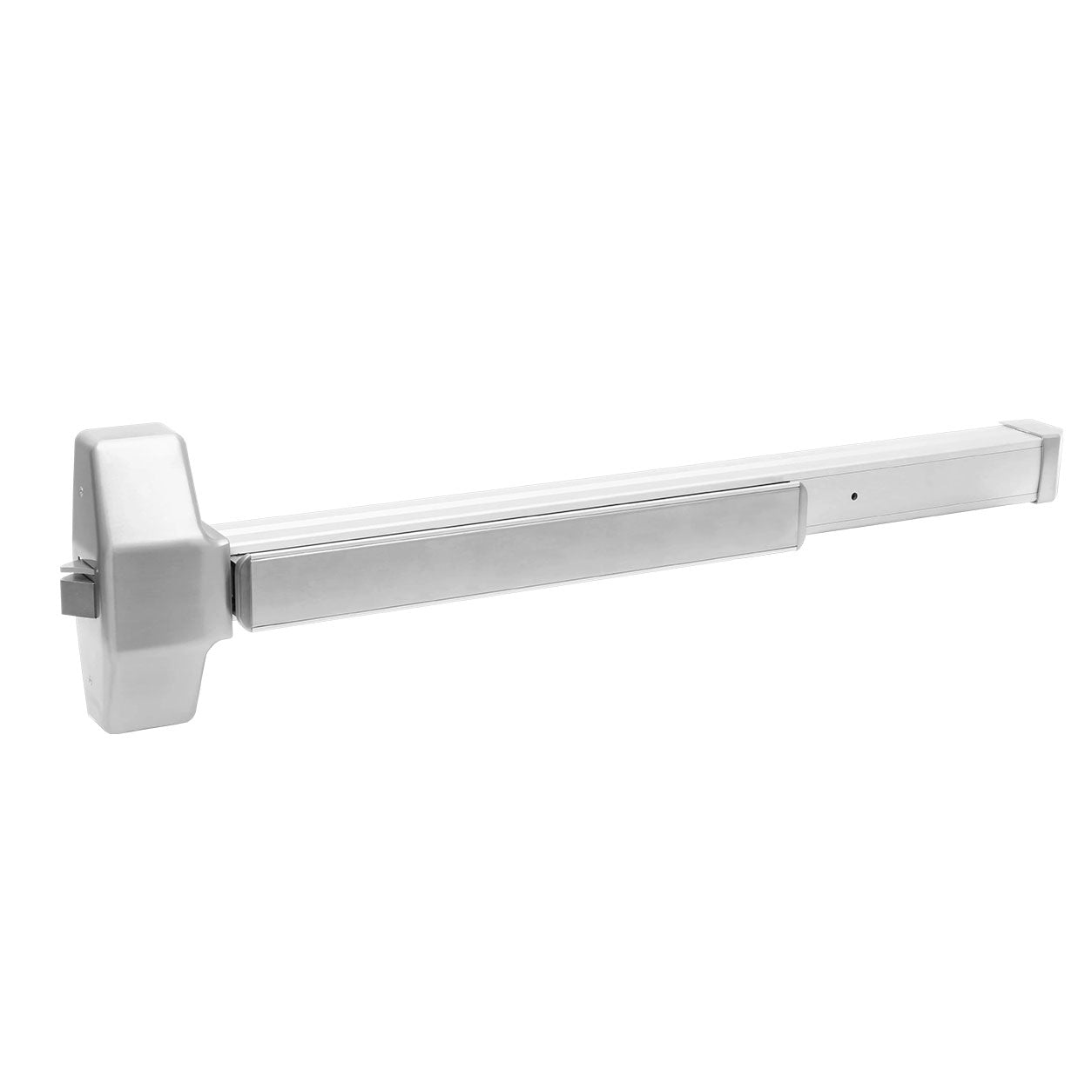

Trans Atlantic ED-901 Panic Rim Exit Device

$435.92
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 1
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:

Clear

Product Overview

Trans Atlantic ED-901 Rim Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only

The ED901 series "rim type" exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. It is appropriate for all heavy duty commercial and industrial applications. Fits doors up to 36" and XL for 48".

  • Exit Only (Exit Device Trim sold separately)
  • ANSI A156.3 Grade 1
  • Non-handed
  • Comes with standard strike and shim
  • Dogging standard
  • Warranty: 1 year
  • Plastic End cap
  • Can be cut down to 28” in length
  • Minimum Stile Width: 4-7/32”
  • Door Thickness: 1-3/4” to 2”
Brand

Finishes

AL - Aluminum, DU - Dark Bronze

Length

36" (30" to 36" Door Width), 48" (36" to 48" Door Width)

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

Non-Fire-Rated

Stile Type

Wide (Standard)

Minimum Stile Width

4-7/32"

Door Thickness

1-3/4"

Dogging Feature

Half turn hex dogging standard
