Trans Atlantic ED-501 Panic Rim Exit Device

$117.86
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 1
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:

Clear

Product Overview

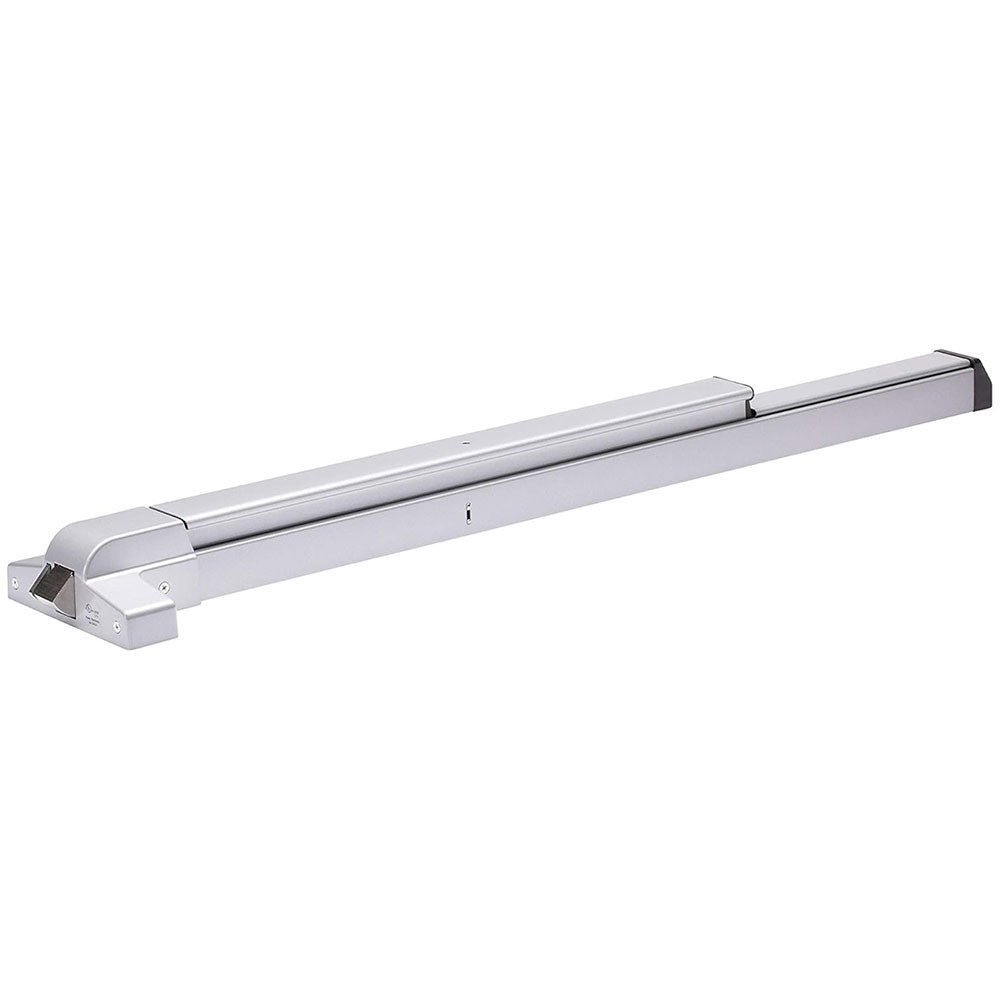

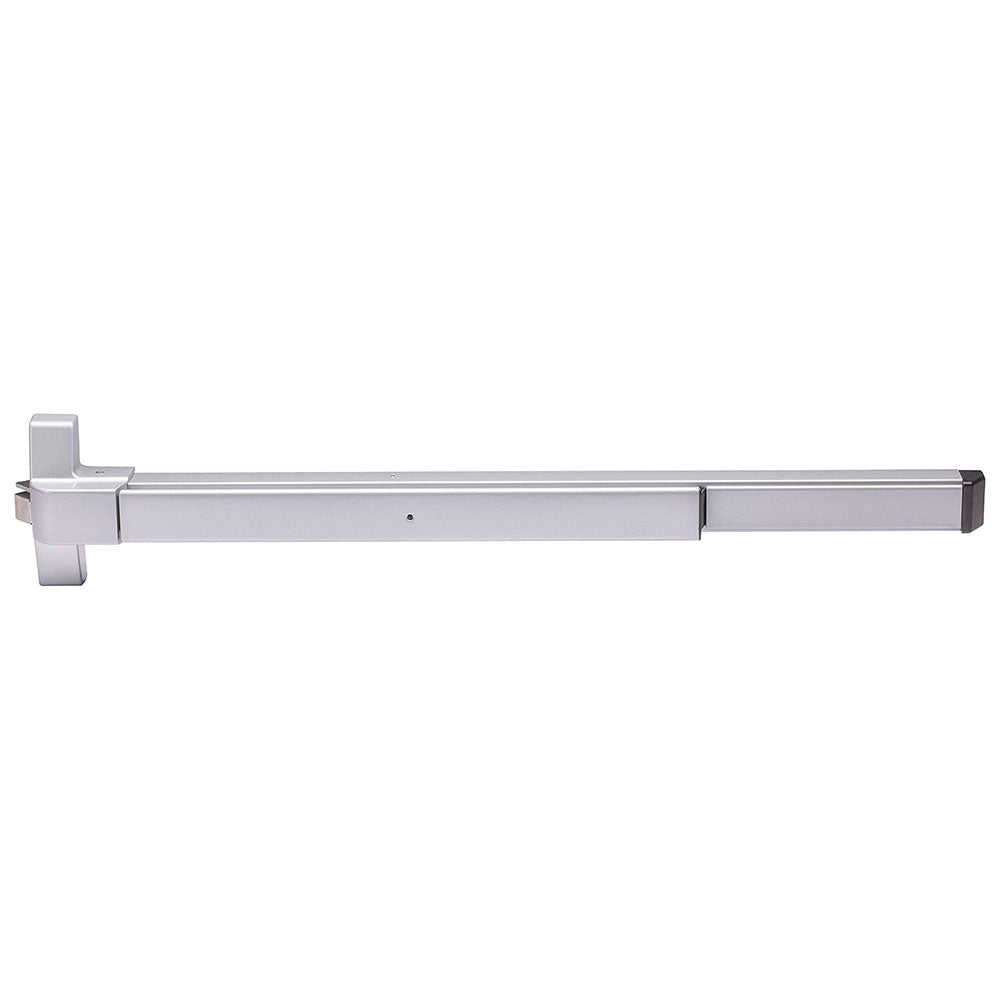

Trans Atlantic ED-501 Rim Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only

The ED501 series “rim type” exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. It is appropriate for all heavy-duty commercial and industrial applications. Fits doors up to 36" and XL for 48".

  • Exit Only (Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware
  • ANSI/BHMA A156.3 Series—Grade 1

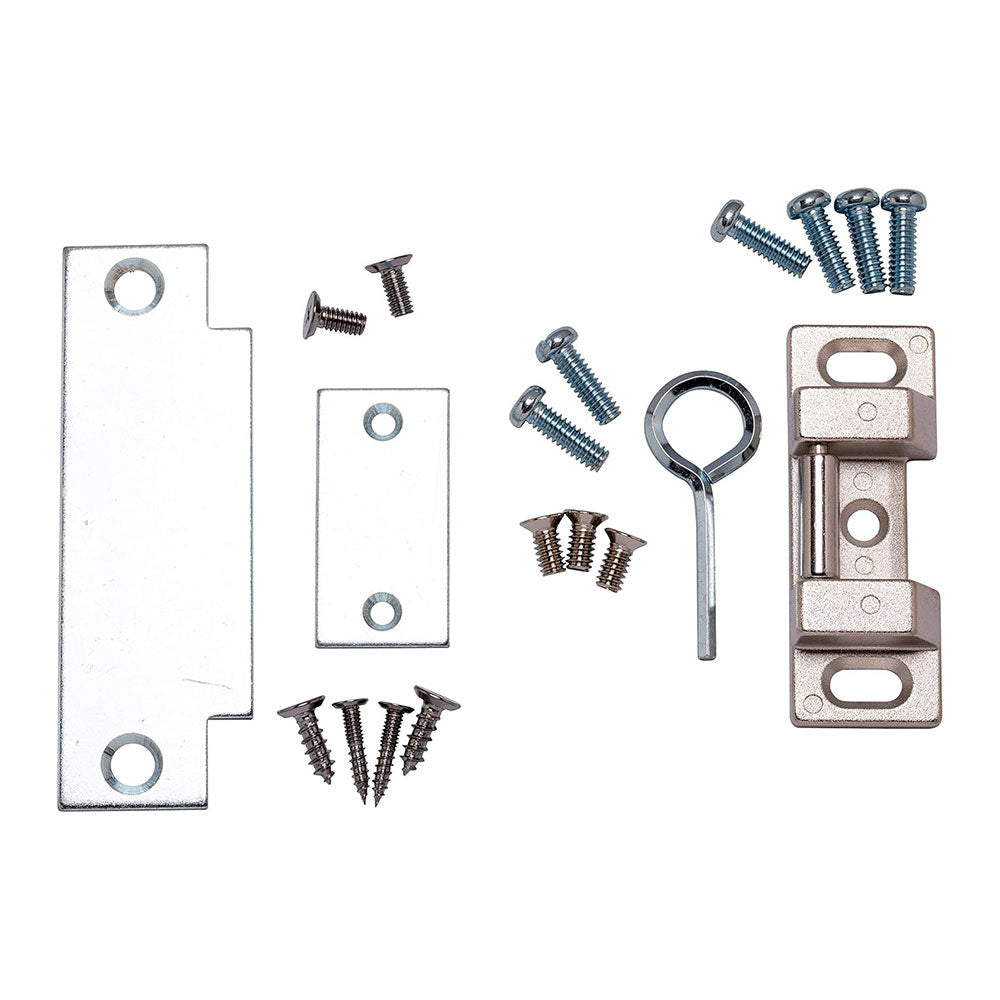

  • Comes with standard strike and shim
  • 3" Minimum stile width
Brand

Finishes

AL - Aluminum, BK - Black, DU - Dark Bronze

Length

36" (30" to 36" Door Width), 48" (36" to 48" Door Width)

Usage

Light Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

Non-Fire-Rated

Stile Type

Wide (Standard)

Minimum Stile Width

3"

Door Thickness

1-3/4"

Dogging Feature

Half turn hex dogging standard
