Trans Atlantic DL-LSV70 Classroom Lever Lock

$70.07
Usually Ships:  3-5 Business Days
  • ANSI A156.2 Grade 2
  • ANSI function F84
  • ADA compliant, 3-hour fire-rated

Product Overview

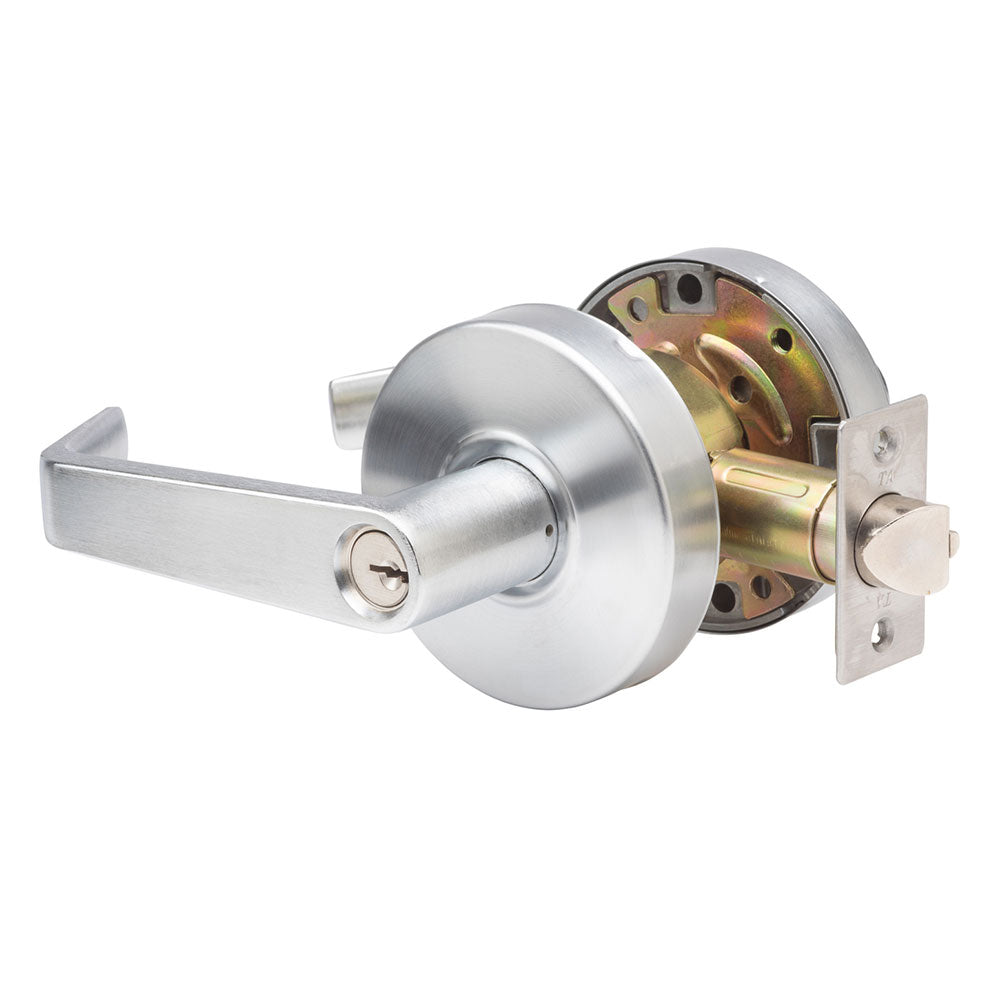

Trans Atlantic DL-LSV70 Grade 2 Classroom Cylindrical Lock, 2-3/4" B.S.

The DL-LSV Series cylindrical leversets are designed for use on standard Grade 2 commercial applications. The LSV Saturn Style series in ADA compliant.

Classroom Function, ANSI F84 – Outside lever is locked and unlocked by key. Inside lever is always unlocked and always free for immediate egress.

  • Door Thickness: 1-3/4” - 1-5/8”
  • Cylinder: Schlage “C” keyway
  • Backset: 2-3/4”
  • Latch: 1/2” projection Stainless Steel
  • Face: 1 1/8” x 2 1/4”
  • Bore: 2 1/8” hole retrofits all cylindrical locksets
  • Fits 161 Prep doors
  • trike: ANSI 1 1/4” x 4 7/8”
  • Removable Thru-Bolts
  • Non-handed / reversible
  • Warranty: 1 year mechanical and finish
Brand

Finishes

US26D (626) Satin Chrome

ANSI/BHMA Standard

ANSI/BHMA A156.2 Series—Grade 2

Usage

Medium Duty

Lock Function

Classroom

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
