TownSteel

TownSteel TDC-40 Door Closer

$228.66
Usually Ships:  1-2 Business Days
  • Grade 1 Certified, ANSI/BHMA A156.4
  • Fully Adjustable (Sizes 1-6)
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

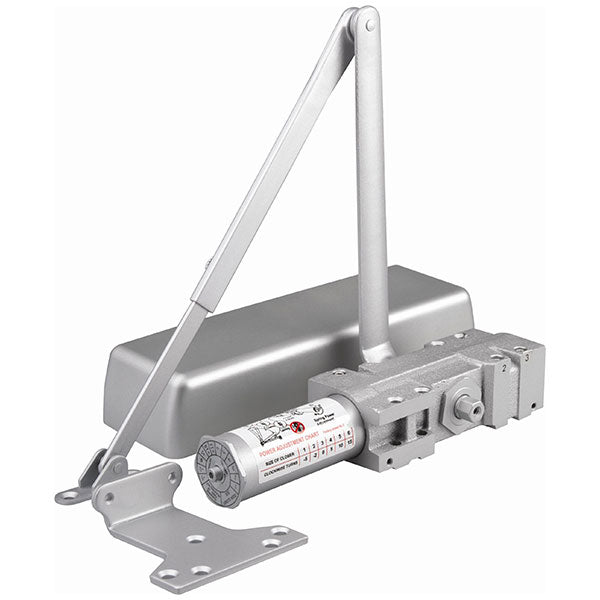

Townsteel TDC-40 Grade-1 Door Closer, Size 1-6 Adjustable, Cast Iron Body, Regular Arm with PA Bracket, Full Cover

Townsteel TDC 40 Series closers are designed for commercial and industrial high traffic applications. The TDC 40 Series closers are ANSI Grade 1, ADA compliant, and offer the best heavy-duty performance

  • For heavy traffic areas, exterior or interior
  • Heavy-duty cast iron body, non-handed
  • Precision rack and pinion construction
  • Tri-Style installation: Includes hardware and brackets to allow for regular, top jam, and parallel arm installation.
  • Adjustable spring power from size 1 to size 6, factory preset size 3.
  • Separate and adjustable latch, sweep, and backcheck valves standard

Code Compliance

  • Grade 1 Certified, ANSI/BHMA A156.4
  • Americans with Disabilities Act Compliant
  • UL 10C Compliant

codes

Brand

Finishes

689 Aluminum (Powder Coated), 622 Matte Black, 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

2-1/4" x 5"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Heavy Duty

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Fire-Rating

UL10C and UBC 7.2 for positive pressure

Handing

Non-Handed

Cover

Full Cover

Door Applications

Hollow Metal, Wood or Aluminum
