Timely 73A 645 Adjustable Prefinished Steel Pair Frame for 5-5/8″ to 7-3/8″ Wall, 7’0″ Height, Prepped for (6) 4-1/2″ Hinges

$305.78
Usually Ships:  3-5 Business Days

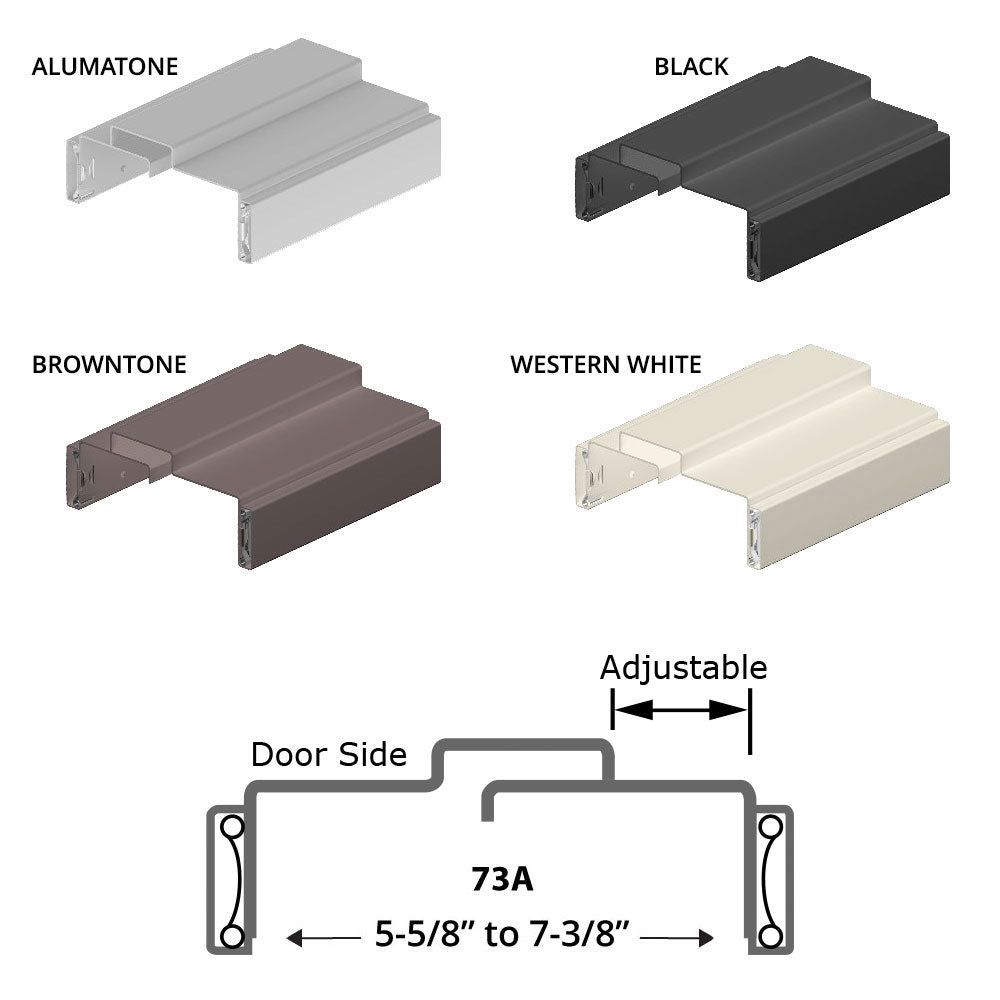

  • 73A Adjustable frame - 5-5/8″ to 7-3/8″ wall thickness
  • Consists of (2) hinge jambs and (1) header
  • Prepped for (6) 4-1/2" hinges, includes TA-8 casing trim

Available Options:

Clear

Product Overview

Timely 73A-645 Adjustable A-Series Pair Prefinished Steel Door Frame, 3 Piece KD (knocked down), 7'0" (84") Height, 5-5/8″ to 7-3/8″ Wall, Prepped for (6) 4-1/2" Hinges, TA-8 Steel Casing

The prefinished steel A-Series Adjustable Frame is the perfect companion for the S-Series Standard Frame and C-Series Standard Frame. Use A-Series frames to prevent job site problems resulting from walls of varying wall thickness or non-standard Jamb depth. A-Series frames are also the solution where pre-hung assemblies are required.

Use for interior openings with uneven or odd-sized walls requiring non-stock wall size. Adjustable jamb thickness makes this frame ideal for remodel projects.

  • Door closer reinforcement plates and other Timely parts and accessories available

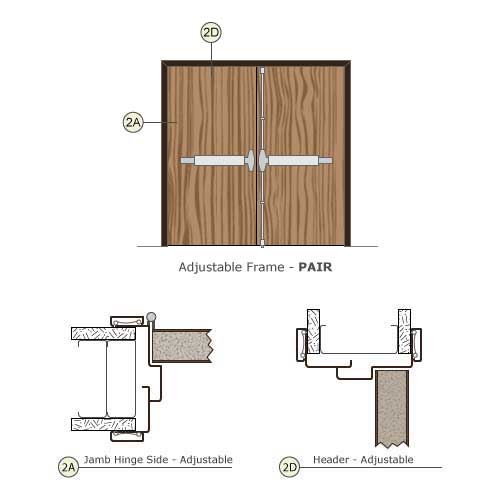

  • Pair frame consists of (2) hinge jambs (1-LH, 1-RH) and (1) header
  • Header furnished without reinforcements or hardware preps
  • 18 gauge prefinished GalXC™ hot-dipped galvanized steel
  • Ideal for most interior commercial drywall applications (wraps built stud wall)
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Can accommodate doors weighing up to 250 lbs.
  • Extruded hinge screw holes, rolled threads - no welds to fail
  • TA-8 steel casing included, snap-on spring clip system
  • Rough opening + 1-1/4" width, + 1 height (85")
  • Recommended for interior applications only
  • Optional Fire Label: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2 – Fire Rated Assemblies must be in accordance with NFPA 80

Includes: Header, 2 Hinge Jambs, TA-8 Casing both sides, 2 Silencers, 4 TA-6 Corners

Frame Order Sizes: 4’0″ x 7'0″, 5’0″ x 7'0″, 6’0″ x 7'0″, 4’0″ x 7'0″

a-series-icons

Brand

Series

Adjustable A Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

18-gauge

Components

(2) Hinge jambs (1-LH, 1-RH), (1) header, and casing trim

Finish

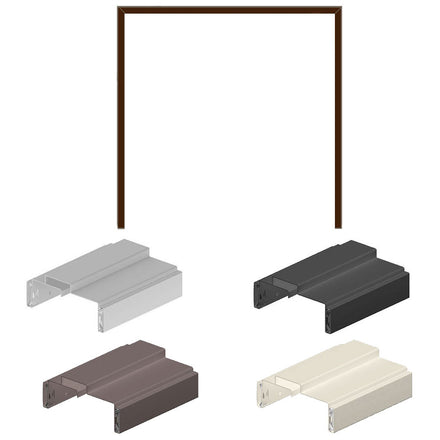

Browntone, Alumatone, Black, Western White

Width

6'0", 4'0", 5'0"

Height

7'0"

Hinge Prep

645 - Six (6) 4-1/2″ Hinges

Hinge Locations

Timely

Rabbets

Unequal double rabbets

Casing

TA-8 steel casing

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Door Thickness

1-3/4"

Door Weight

up to 250 lbs.

Fire-Rating

Optional: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2

Buy American Act Compliance

Meets Buy American Act - Made in USA
