Timely 50S 445xBSJ Single Prefinished Steel Door Frame for 4-7/8 to 5" Wall, 8'0" Height, Prepped for (4) 4-1/2″ Hinges, Blank Strike Jamb

$163.84
Usually Ships:  3-5 Business Days
  • 50S Classic frame - 4-7/8 to 5" wall thickness
  • Includes blank strike jamb, ideal for exit devices or push/pull sets
  • Prepped for (4) 4-1/2″ hinges, includes TA-8 snap-on casing trim

Available Options:

Clear

Product Overview

Timely 50S-445 Classic S-Series Single Prefinished Steel Door Frame for 1-3/4" Thick Door, 8'0" (96") Nominal Height, 4-7/8 to 5" Wall, Prepped for (4) 4-1/2″ Hinges, Blank Strike Jamb, TA-8 Steel Casing

Designed for commercial and institutional use in offices, hotels, schools, hospitals, and health care facilities. The classic frame is the most popular profile.

  • Door closer reinforcement plates, strikes in various finishes, and other Timely parts and accessories available
  • 20-gauge prefinished GalXC™ hot-dipped galvanized steel
  • Ideal for use with most interior commercial drywall applications (wraps built stud wall)
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Can accommodate 1-3/4" thick doors weighing up to 500 lbs.
  • Extruded hinge screw holes, rolled threads - no welds to fail

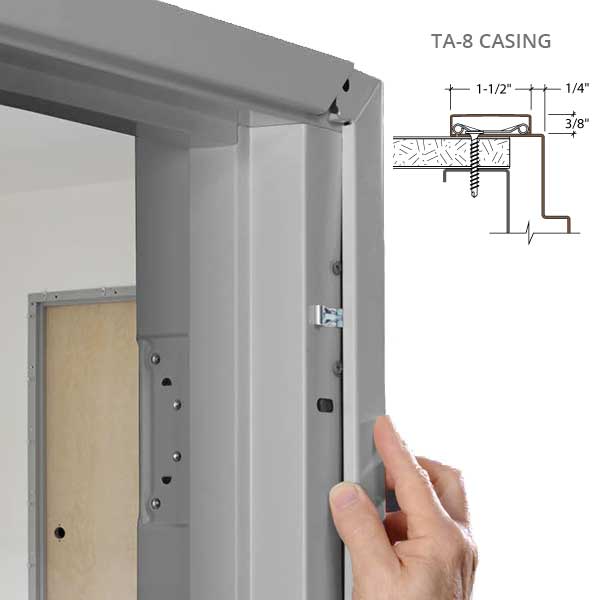

  • TA-8 steel casing included, snap-on spring clip system
  • Rough opening + 1-1/4" width, + 1 height (97")
  • Recommended for interior applications only
  • *Optional Fire Label: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2 – Fire Rated Assemblies must be in accordance with NFPA 80

* Fire-rated doors must be self-closing and positive latching (approved exit device or locking device required)

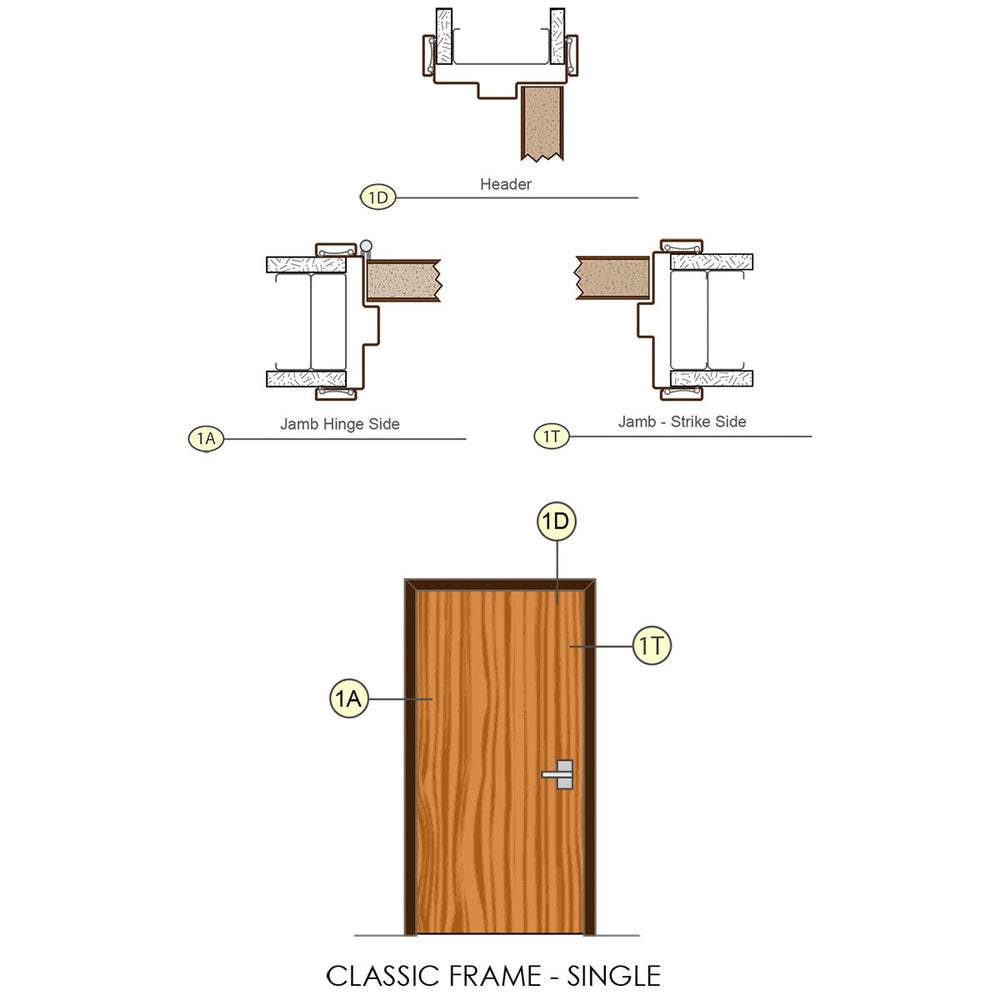

Includes: Header, Hinge Jamb, Blank Strike Jamb, TA-8 Casing both sides, 2 Silencers, 4 TA-6 Corners

Frame Order Sizes: 3'0" x 8'0"

s-series-icons

Brand

Series

Classic S Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

20-gauge

Finish

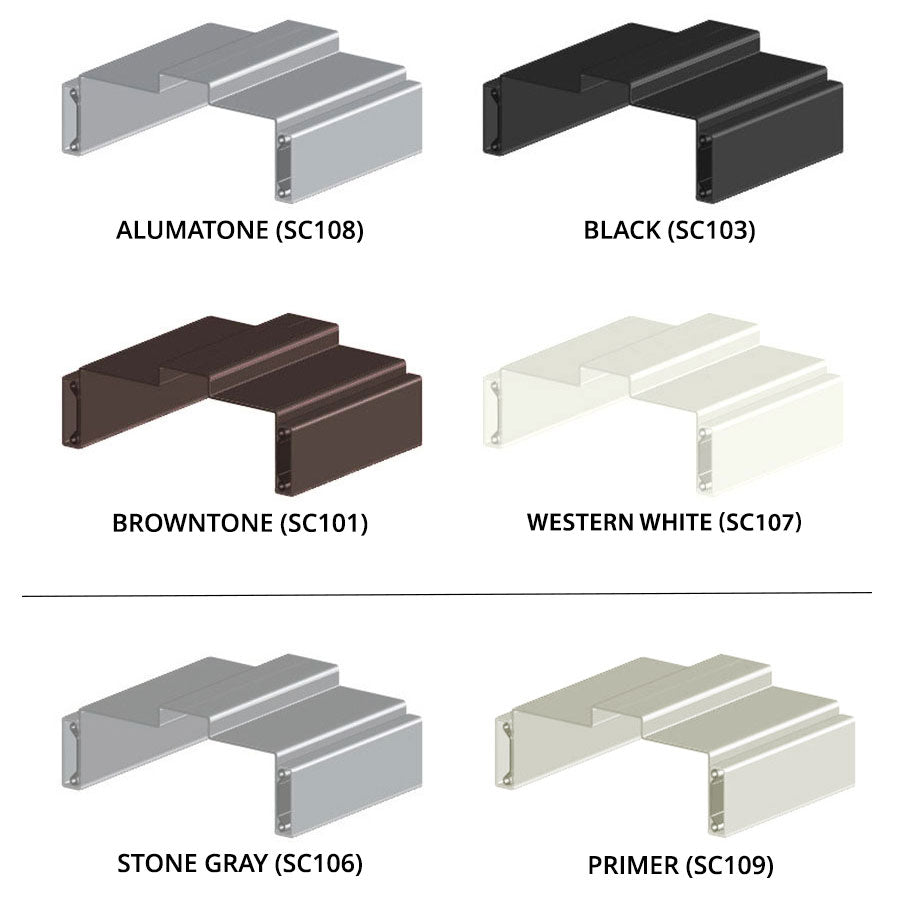

Black, Western White, Browntone, Alumatone

Width

3'0"

Height

8'0"

Handing

Handed – LH, RH

Frame Profile / Wall Thickness

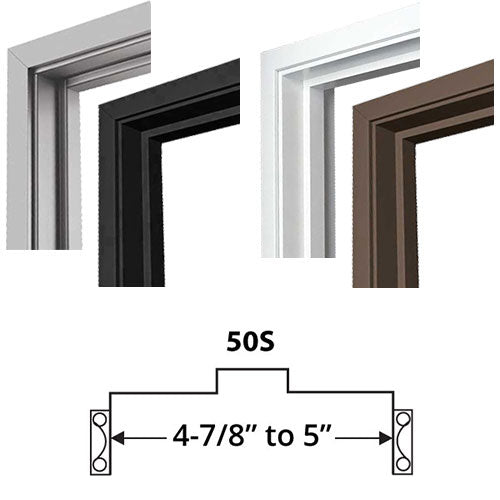

50 - 4-7/8" to 5"

Hinge Prep

445 - Four (4) 4-1/2″ Hinges

Strike Prep

None - Blank Strike Jamb

Strike

No strike plate included (sold separately)

Hinge and Strike Locations

Timely

Casing

TA-8 steel casing

Rabbets

Unequal double rabbets

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Door Thickness

1-3/4"

Door Weight

up to 500 lbs.

Fire-Rating

Optional: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2

Buy American Act Compliance

Meets Buy American Act - Made in USA
