Product Overview
Timely P Series Pocket Trim w/ Inverted Stop Jamb, 47P (4-3/4" to 4-7/8" Wall), TA-8 Casing, 3'0" x 7'0-3/16"

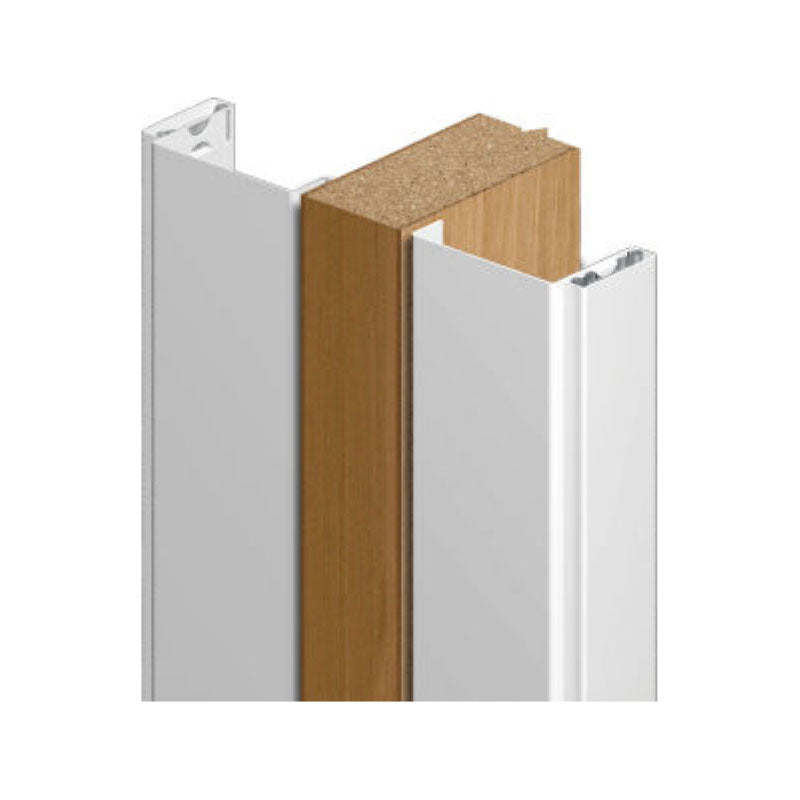

Timely prefinished steel P-Series Pocket Door Trim Kit is used to trim out Pocket Door openings. The purpose of the P-Series Pocket Door Trim Kit is to make Pocket Door openings consistent with other Timely Frames on the project.

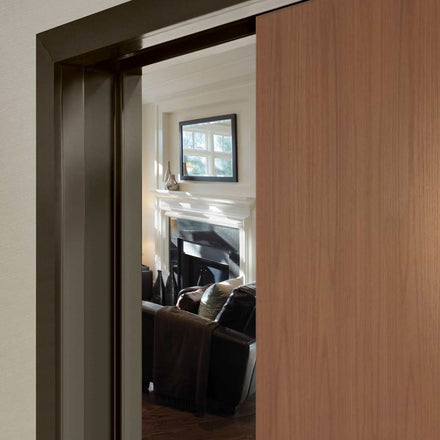

With traditional pocket trim, the door closes against a flat surface. With the inverted stop option, the door closes into a recess on the jamb creating the privacy often desired for rooms using pocket door applications.
- Door closes into a recess on the jamb creating privacy desired for these applications
- Pocket door frame, track, hardware, and door sold separately
- For use with 1-3/4″ thick doors
- Please refer to Pocket Door hardware specifications (supplied by others) for maximum Door weight
- 18-gauge prefinished GalXC™ hot-dipped galvanized steel
- TA-8 steel casing included, snap-on spring clip system
- Recommended for interior applications only

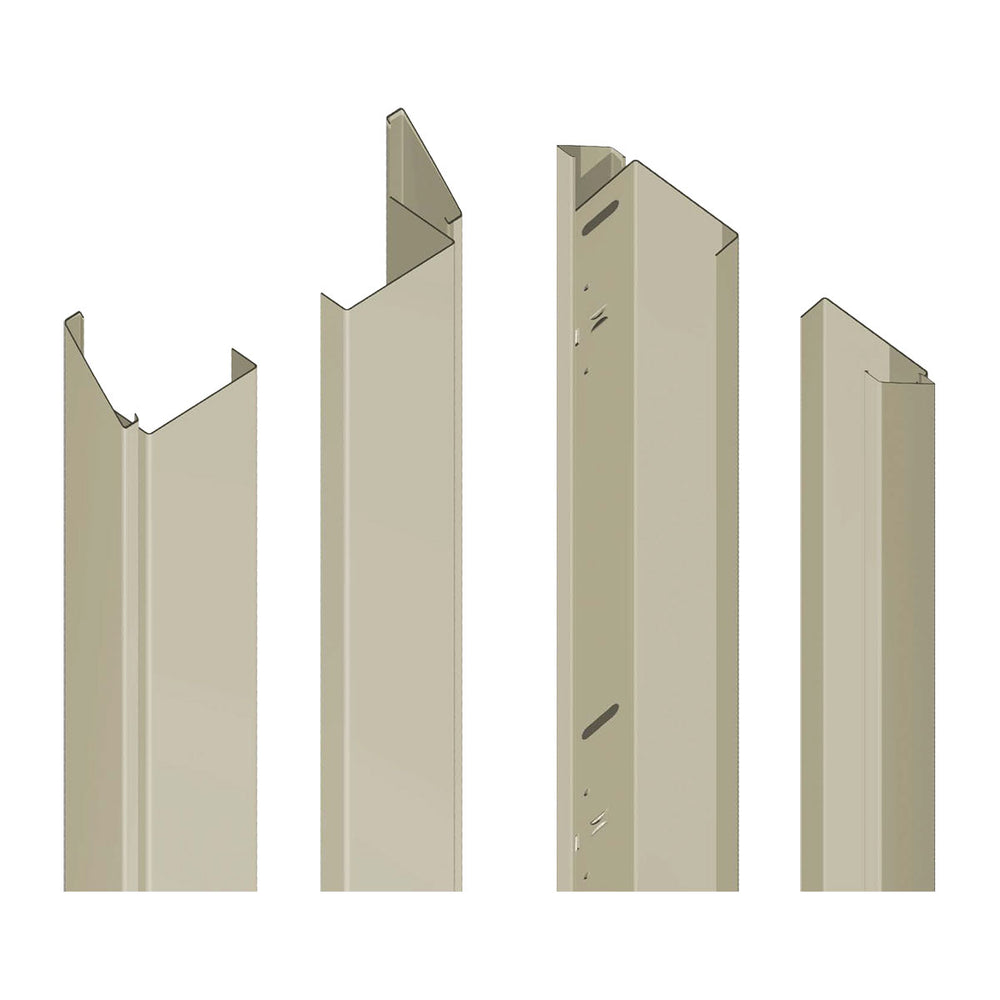

Includes: 2 Pieces of Upright J-Trim, 2 Pieces of Header J-Trim, 1 No Stop Jamb, TA-8 Casing both sides, 4 TA-6 Corners
Frame Order Sizes: 3'0" x 7'0"
| Brand | |
|---|---|
| Series |
P Series |
| Base Material |
GalXC hot dipped galvanized steel, G-30 coating weight |
| Steel Gauge |
18-gauge |
| Finish |
Alumatone, Black, Browntone, Western White |
| Width |
3'0" |
| Height |
7'0" |
| Handing |
Completely Reversible |
| Casing |
TA-8 steel casing |
| Anchors |
#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners. |
| Door Thickness |
1-3/4" |
| Fire-Rating |
None |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
