Timely 45S 345xTSTK Single Prefinished Steel Door Frame for 4-1/2" to 4-5/8" Wall, 7'0" Height, Prepped for (3) 4-1/2" Hinges and T-Strike

$139.81
Usually Ships:  3-5 Business Days
  • 45S Classic frame - 4-1/2" to 4-5/8" wall thickness
  • Prepped for (3) 4-1/2" hinges and T-Strike
  • Includes TA-8 snap-on casing trim and TA-1 adjustable strike

Available Options:

Clear

Product Overview

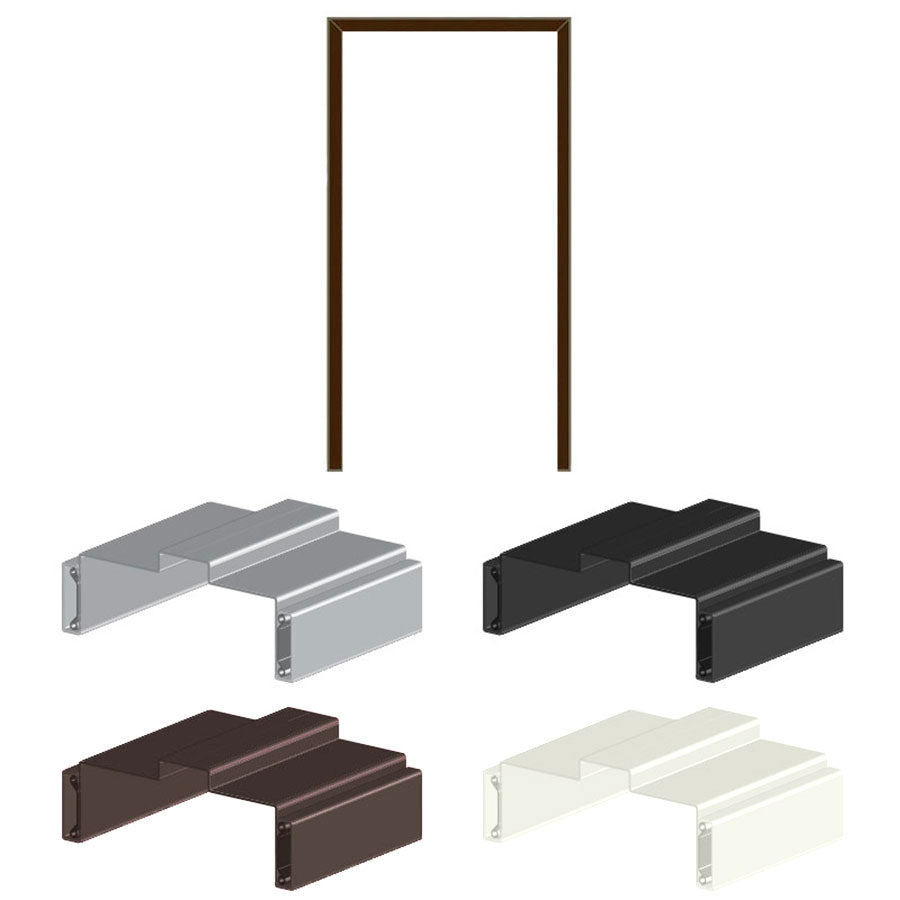

Timely 45S-345 Classic S-Series Single Prefinished Steel Door Frame for 1-3/4" Thick Door, 7'0" (84") Nominal Height, 4-1/2" to 4-5/8" Wall, Prepped for (3) 4-1/2" Hinges and T-Strike, TA-8 Steel Casing, TA-1 Adjustable T-Strike

Designed for commercial and institutional use in offices, hotels, schools, hospitals, and health care facilities. The classic frame is the most popular profile.

  • Door closer reinforcement plates, strikes in various finishes, and other Timely parts and accessories available
  • 20-gauge prefinished GalXC™ hot-dipped galvanized steel
  • Ideal for use with most interior commercial drywall applications (wraps built stud wall)
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Can accommodate 1-3/4" thick doors weighing up to 500 lbs.
  • Extruded hinge screw holes, rolled threads - no welds to fail

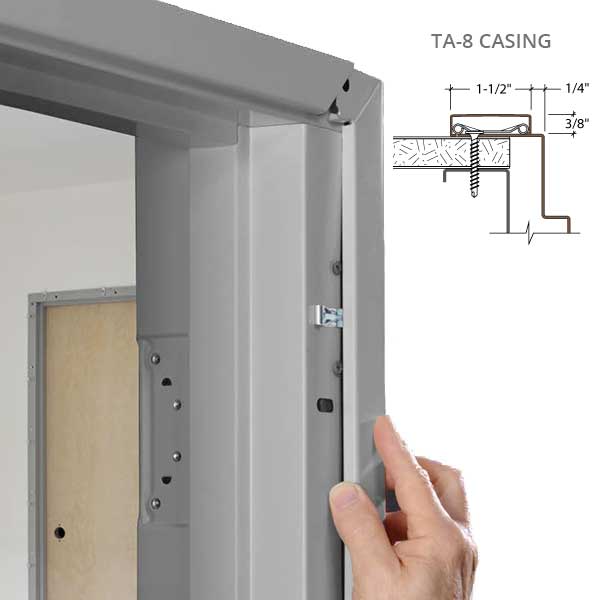

  • TA-8 steel casing included, snap-on spring clip system
  • Adjustable TA-1 strike included (Zinchrome finish)

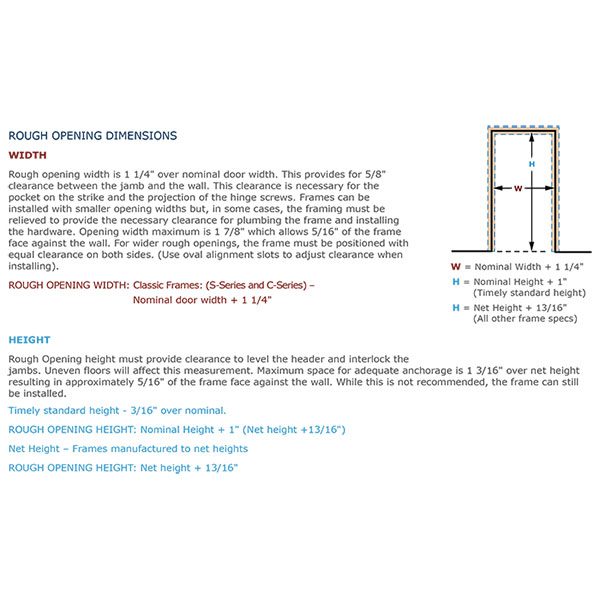

  • Rough opening + 1-1/4" width, + 1 height (85")
  • Recommended for interior applications only
  • Optional Fire Label: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2 – Fire Rated Assemblies must be in accordance with NFPA 80

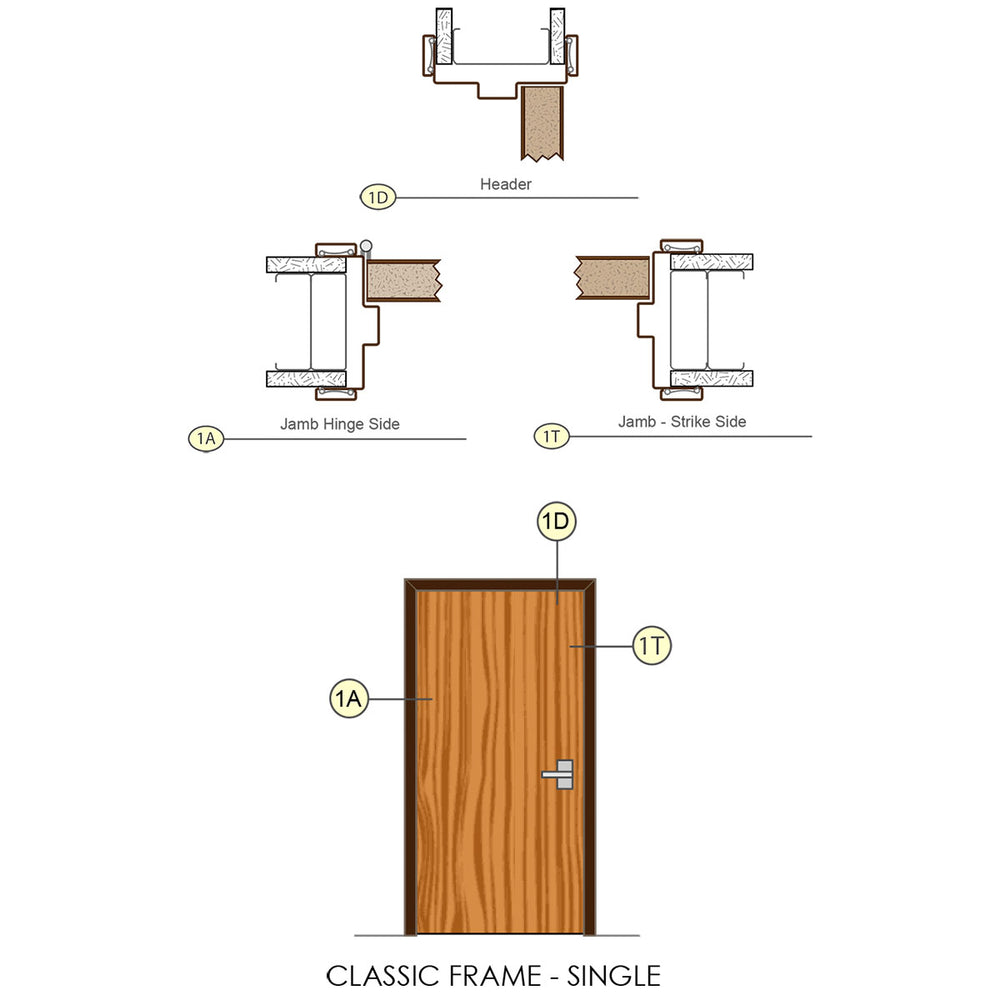

Includes: Header, Hinge Jamb, Strike Jamb, TA-8 Casing both sides, TA-1 Zincrome Strike, 2 Silencers, 4 TA-6 Corners

Frame Order Sizes: 2'0" x 7'0", 2'4" x 7'0", 2'6" x 7'0", 2'8" x 7'0", 3'0" x 7'0", 3'6" x 7'0", 4'0" x 7'0"

s-series-icons

Brand

Series

Classic S Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

20-gauge

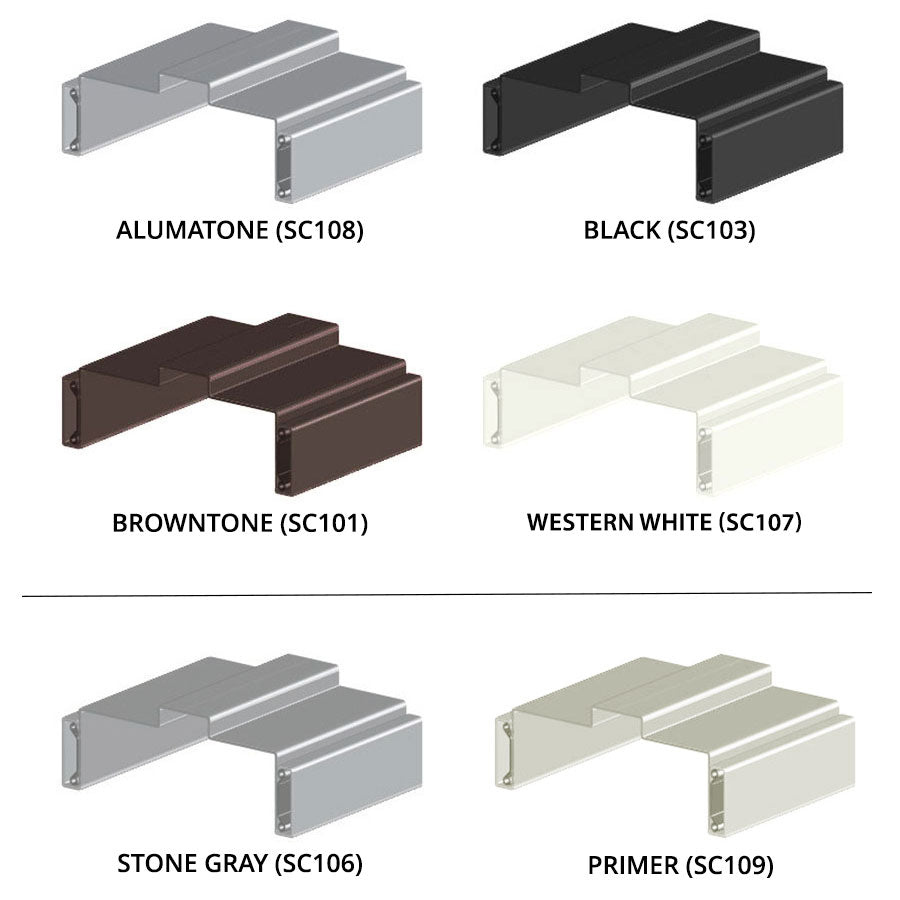

Finish

Black, Western White, Browntone, Alumatone

Width

3'0", 4'0", 3'6", 2'8", 2'6", 2'4", 2'0"

Height

7'0"

Handing

Handed – LH, RH

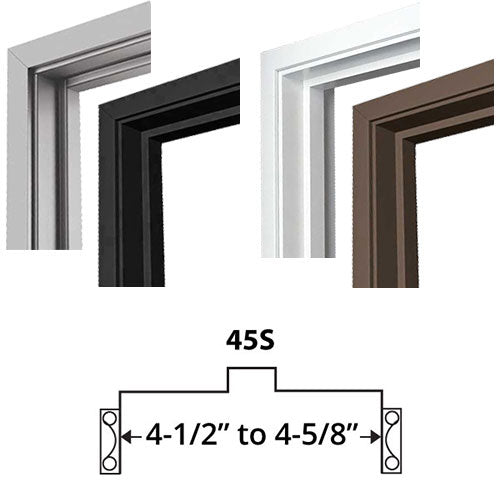

Frame Profile / Wall Thickness

45 - 4-1/2" to 4-5/8"

Hinge Prep

345 - Three (3) 4-1/2″ Hinges

Strike Prep

2-3/4″ T Strike

Strike

Adjustable TA-1 T Strike, Zinchrome finish (included)

Hinge and Strike Locations

Timely

Casing

TA-8 steel casing

Rabbets

Unequal double rabbets

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Door Thickness

1-3/4"

Door Weight

up to 500 lbs.

Fire-Rating

Optional: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2

Buy American Act Compliance

Meets Buy American Act - Made in USA
