Timely

Timely 3'0" x 7'0" 47S 345xTSTK Single Prefinished Steel Door Frame with Full Height Sidelite for 4-3/4" to 4-7/8" Wall, Prepped for (3) 4-1/2" Hinges and T-Strike

$550.98
Usually Ships:  3-5 Business Days
  • 47S Classic frame - 4-3/4" to 4-7/8" wall thickness
  • 3'0" x 7'0" w/ full height sidelite, prepped for (3) 4-1/2" hinges and T-Strike
  • Includes TA-8 snap-on casing trim and cut glass stops (glass sold separately)

Available Options:

Clear

Product Overview

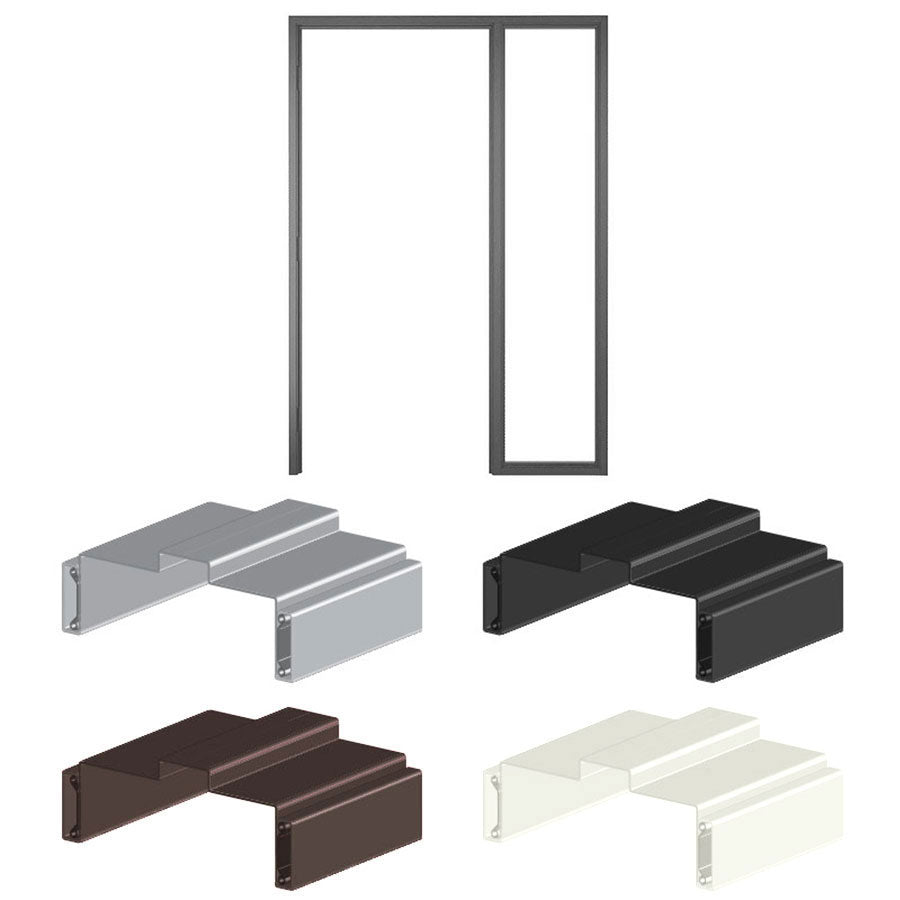

Timely 47S S-Series Single Prefinished Steel Door Frame for 3'0" x 7'0" x 1-3/4" Thick Door, Attached Full Height Sidelite, 4-3/4" to 4-7/8" Wall, Prepped for (3) 4-1/2" Hinges and T-Strike, TA-8 Steel Casing, TA-1 Adjustable T-Strike, Includes Cut Floor Channel and 1/2" x 1/2" Glass Stops (Less Glass)

Designed for commercial and institutional use in offices, hotels, schools, hospitals, and health care facilities. The classic frame is the most popular profile.

  • Includes Cut Floor Channel and 1/2" x 1/2" Glass Stops (Less Glass)
  • Includes TA-1 Strike, TA-5 Silencers, and TA-8 Casing
  • Door closer reinforcement plates, strikes in various finishes, and other Timely parts and accessories available
  • 20-gauge prefinished GalXC™ hot-dipped galvanized steel
  • Ideal for use with most interior commercial drywall applications (wraps built stud wall)
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Can accommodate 1-3/4" thick doors weighing up to 500 lbs.
  • Extruded hinge screw holes, rolled threads - no welds to fail

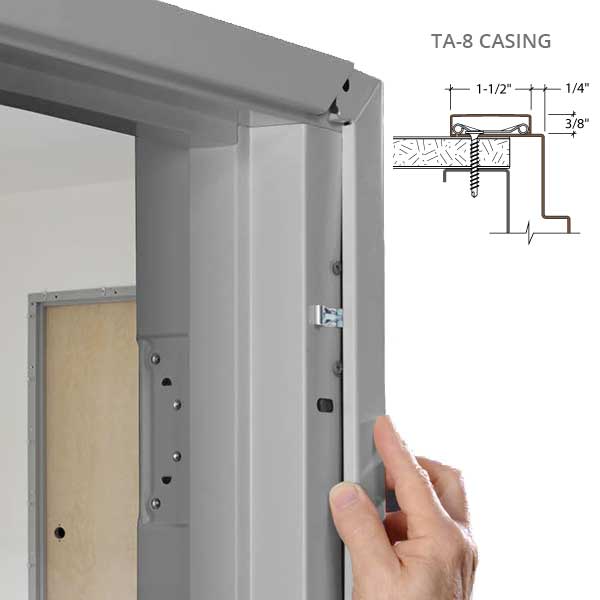

  • TA-8 steel casing included, snap-on spring clip system
  • Adjustable TA-1 strike included (Zinchrome finish)
  • Recommended for interior applications only
  • Optional Fire Label: WHI / ITS up to 45-Minute Fire-Rating (Mylar Label) – Inquire for a quote

Recommended glazing size (glass sold separately)

  • 18" Sidelite: 17-5/8"x 81-11/16"
  • 24" Sidelite: 23-5/8" x 81-11/16"
  • 36" Sidelite: 35-5/8" x 81-11/16"

s-series-icons

Brand

Series

Classic S Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

20-gauge

Finish

Alumatone, Black, Browntone, Western White

Width

30"

Height

7'0"

Sidelite Width

18", 24", 36"

Handing

Handed – LH, RH

Hinge Prep

345 - Three (3) 4-1/2″ Hinges

Strike Prep

2-3/4″ T Strike

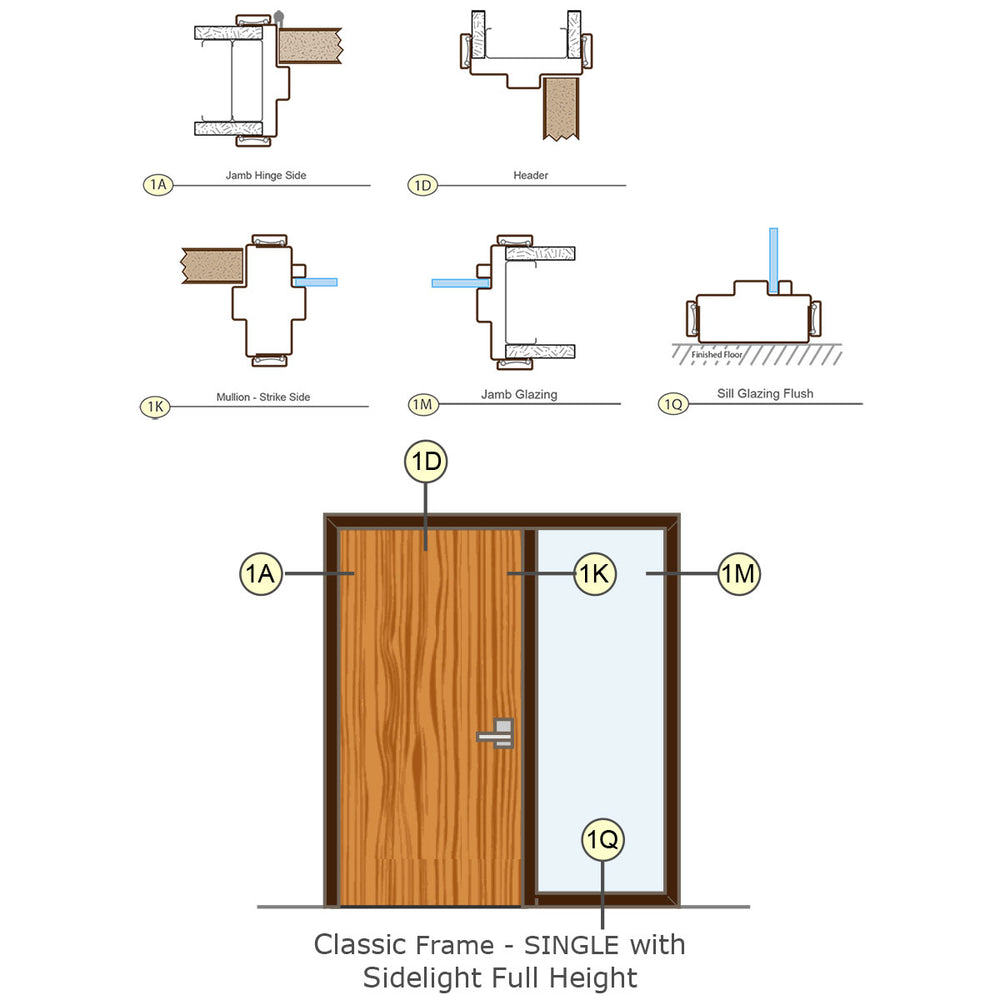

Hinge and Strike Locations

Timely

Strike

Adjustable TA-1 T Strike, Zinchrome finish (included)

Casing

TA-8 steel casing

Rabbets

Unequal double rabbets

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Door Thickness

1-3/4"

Door Weight

up to 500 lbs.

Fire-Rating

Optional (in limited sizes) – WHI / ITS up to 45-Minute Fire-Rating (Mylar Label) - Fire-Rated glass must be used - Inquire for more info

Buy American Act Compliance

Meets Buy American Act - Made in USA
