Steelcraft

Steelcraft Flat Plate Astragal, 14 Gauge Steel, Prime Painted

$46.80
Usually Ships:  1-2 Business Days
  • Used to seal gap between pair of doors
  • Surface mounts to one door (overlaps the other)
  • Attached by using screws or by welding to the proper door leaf

Available Options:

Clear

Product Overview

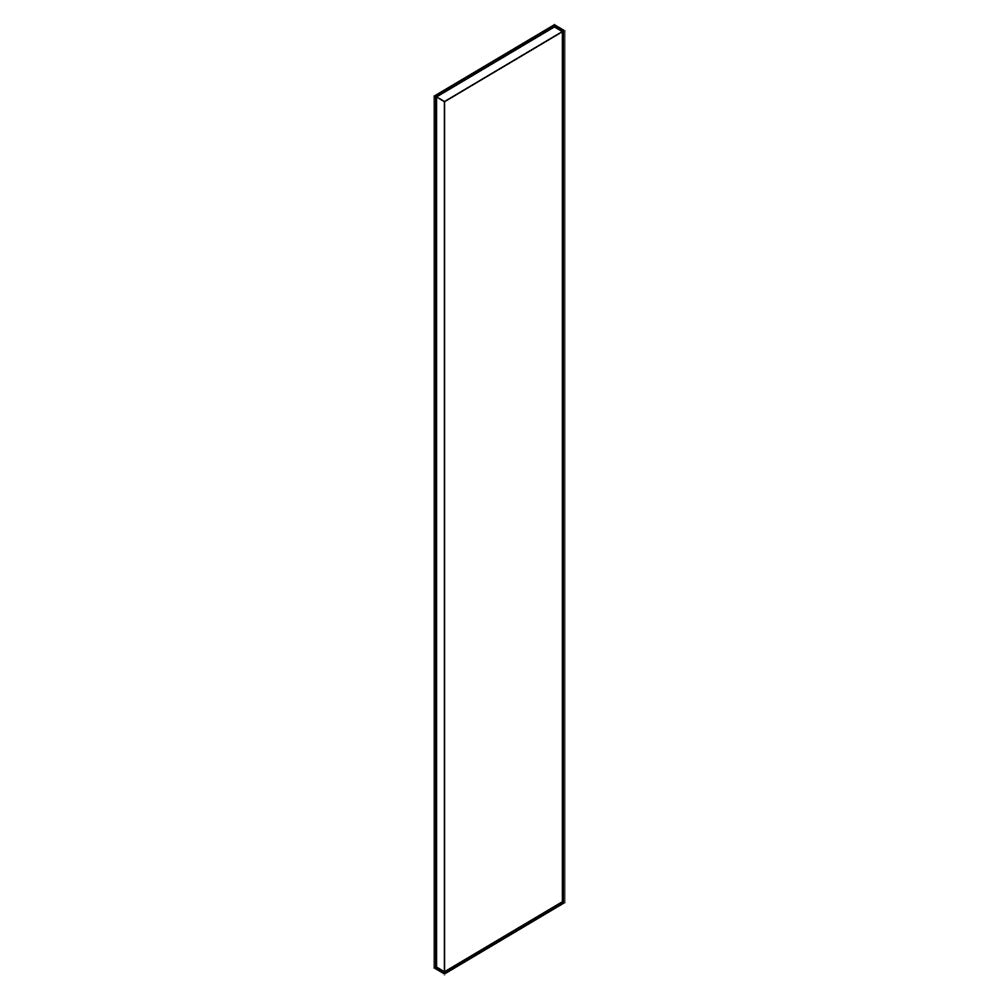

Steelcraft Flat Steel Astragal 7'0" or 8'0" L x 1-1/2" W, Prime Painted

Astragals are used to close the gap between pairs of doors. The astragal seals the opening from weather, light, and in some cases, sound. Security requirements dictate the appropriate application.

For use on L, B, CE, SL, SZ, T and A14-Series hollow metal doors (compatible with any brand door)

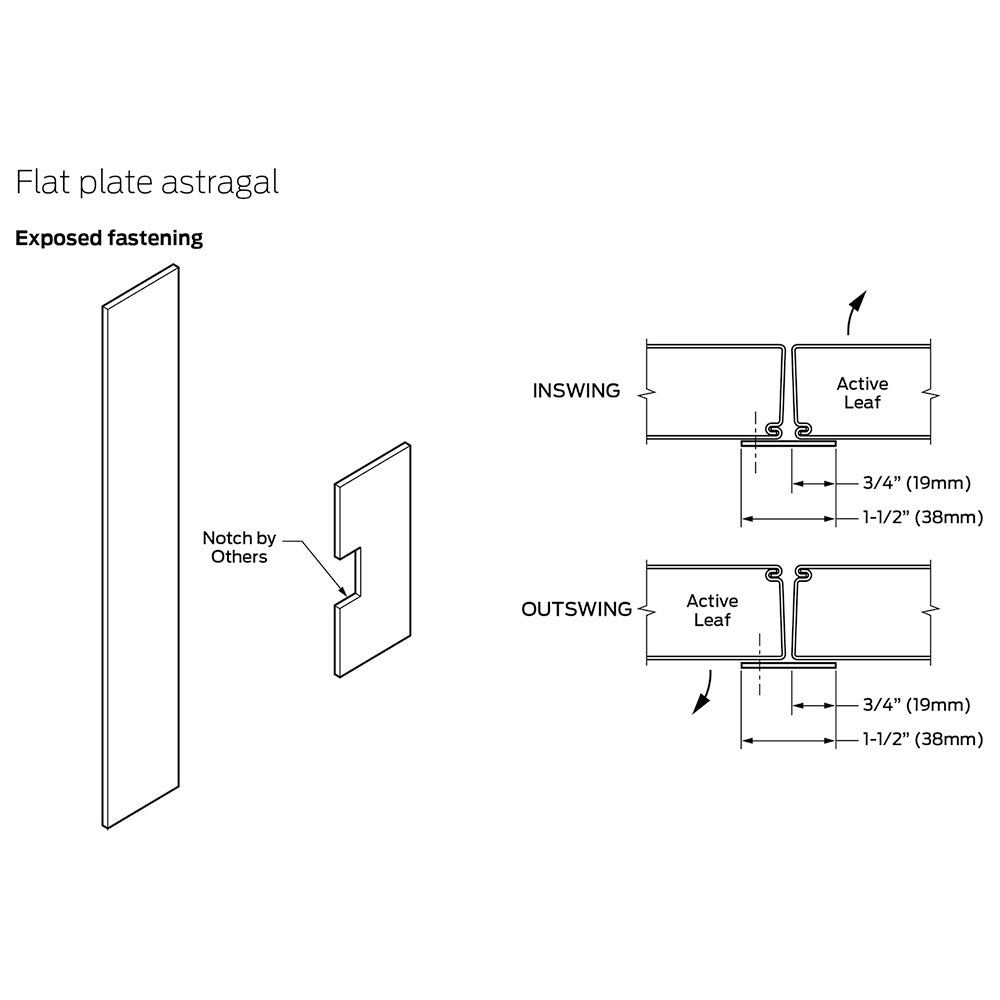

  • Attached to the outside of the active leaf on swing-out doors
  • Attached to the outside of the inactive leaf on swing-in doors
  • The astragal is a 14 gauge (1.7 mm) steel part; attached by using screws or by welding to the proper door leaf
  • For this type of astragal, a wide inactive leaf is recommended
  • When a conventional lock and strike are used, notching for the strike lip is performed in the field by others
  • Available in 7ft / 84″ (Part #15700) and 8ft/ 96″* (Part #15750) lengths (cut to size in field)
  • Steelcraft beige prime coat finish (matches Trudoor stock hollow metal doors)
  • Width: 1-1/2"

* Oversize shipping fee applies to 96" length

Brand

Finish

Prime Coat

Length

84", 96"

Material

14 Gauge Steel
