Steelcraft

Steelcraft 2 Piece Astragal for Hollow Metal Door, Active Leaf Mounting, ASA Strike and Flush Bolt Preps

$89.60
Usually Ships:  1-2 Business Days
  • Used to seal gap between pair of doors
  • Astragal mounts to active door, channel mounts to inactive door
  • Inactive channel prepped for ASA strike and flush bolts (Steelcraft locations)

Available Options:

Clear

Product Overview

Steelcraft 2 Piece Astragal for Hollow Metal Door, Active Leaf Mounting, Inactive Leaf Channel, 4-7/8" ASA Strike Prep, Top and Bottom Flush Bolt Preps, Prime Painted

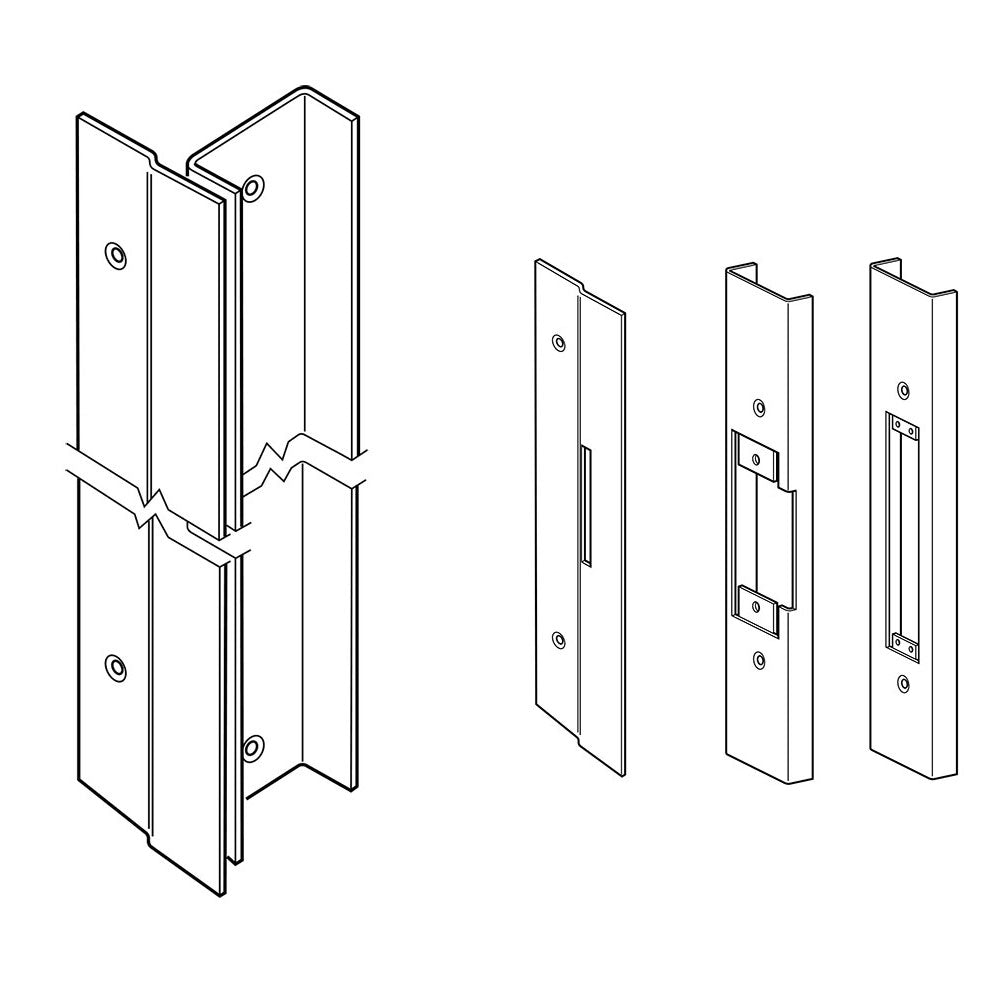

The 2-piece astragal is an alternate active leaf astragal. It allows for using the flushbolt and strike clearance holes on standard inactive leafs and providing an exterior bar type astragal.

Astragals are used to close the gap between pairs of doors. The astragal seals the opening from weather, light, and in some cases, sound. Security requirements dictate the appropriate application.

For use on B, L, T, CE, and A14 Series hollow metal doors (compatible with any brand door with Steelcraft hardware locations)

  • This is a handed product; it has the same hand as the inactive door leaf
  • For this type of astragal, standard width inactive leaf is recommended

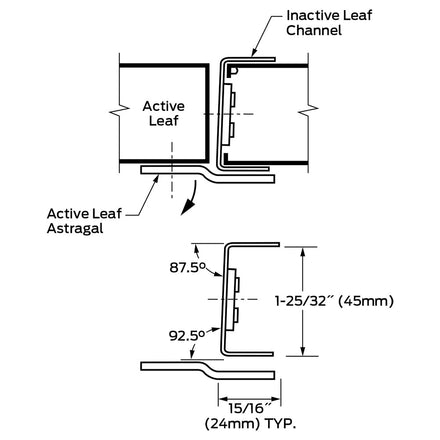

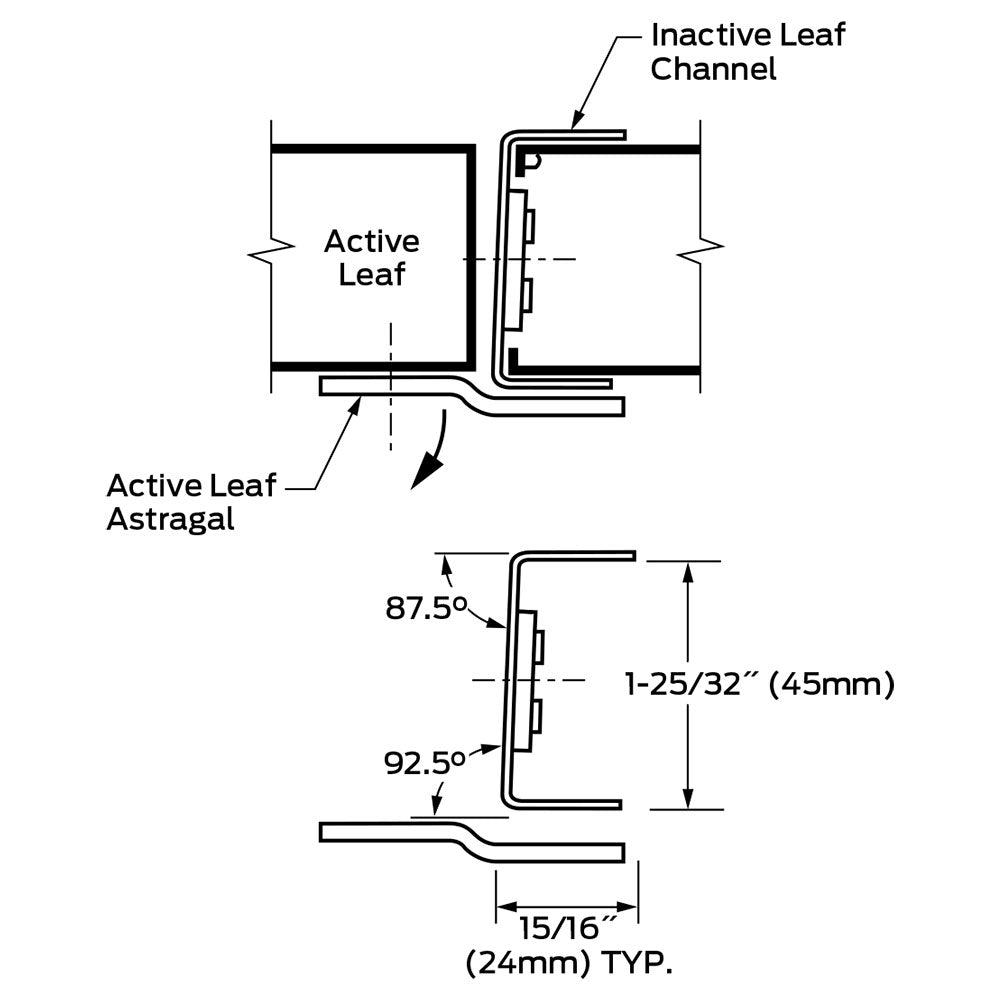

  • The 14-gauge galvanized channel section is mounted to the inactive leaf with the sheet metal screws supplied
  • The 12-gauge galvanized flat bar section is mounted to the pull side face of the door with the sheet metal screws provided

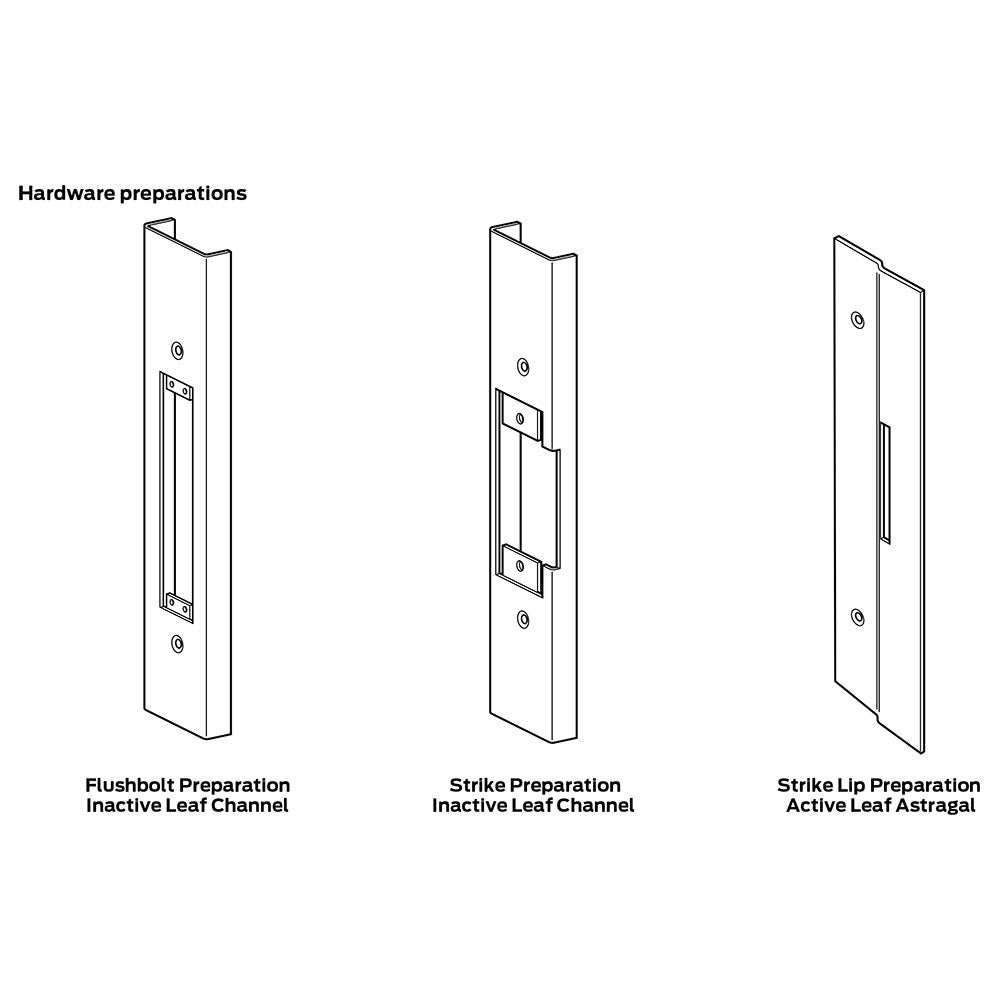

  • Inactive Leaf Channel prepped for 4-7/8" ASA strike and top and bottom flush bolts (Steelcraft hardware locations - not compatible with other hardware locations)
  • Compatible with Trudoor stock hollow metal doors, Steelcraft doors, Assa Abloy BSC doors, and any other metal door with Steelcraft locations
  • This astragal can be used on both rated fire doors and non-rated doors
  • Steelcraft beige prime coat finish (matches Trudoor stock hollow metal doors)
  • Steelcraft package numbers: A001, A029, A003, A031, A006, and A034
Brand

Finish

Prime Coat

Length

80", 84", 96"

Handing

Handed - LH, RH

Material

Active Astragal: 12 Gauge Galvanized Steel - Inactive Channel: 14 Gauge Galvanized Steel

Buy American Act Compliance

Meets Buy American Act - Made in USA
