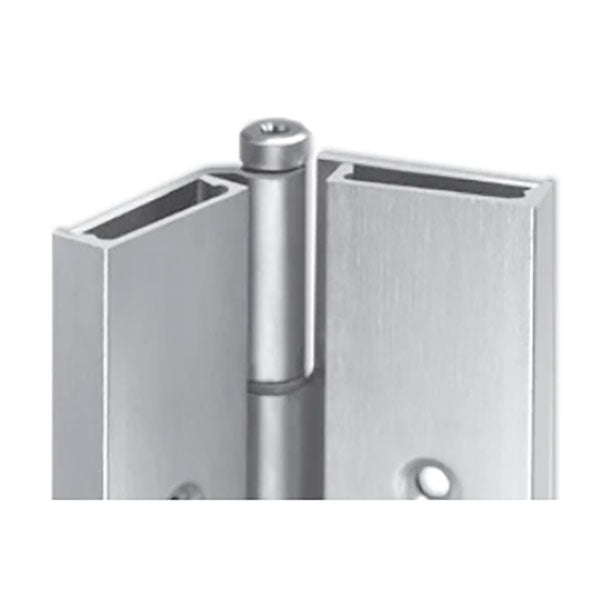

Select SL902TP Full Surface Toilet Partition Pin & Barrel Continuous Hinge, Spring Loaded

$506.51

This item ships FREE! Usually Ships: 2-3 Business Days

For high-frequency toilet partition doors
Stainless steel
54" or 57" length

Available Options:

Clear

Length

Quantity:

Added to Cart

Select SL902TP Full Surface Toilet Partition Pin & Barrel Continuous Hinge, Spring-Loaded, Stainless Steel

Full surface toilet partition hinge. 14 gauge stainless steel. Spring-loaded, adjustable. Tamper-resistant Torx Head end caps to adjust spring tension.

For doors 36" wide, weighing up to 80 lb.
Full surface toilet partition hinge
Stainless steel
Spring loaded; adjustable
1/4-20 x 3/4" panhead self-drilling screws are provided as a standard pack.

Brand	Select
Length	54", 57"
Finish	Stainless Steel
Material	14 gauge stainless steel with 1/4" diameter 303 stainless steel self-closing pin assembly. Long-life split nylon bearings.
Load / Frequency	For high-frequency partition doors 36" wide (max.) weighing up to 80 pounds without frame or door reinforcement.
Continuous Hinge Type	Toilet Partition
Usage	Standard Duty
Buy American Act Compliance	Meets Buy American Act - Made in USA

SL902_Toilet_Partition_Pin_and_Barrel_Installation_Instructions

SL902SpecSheet-web
