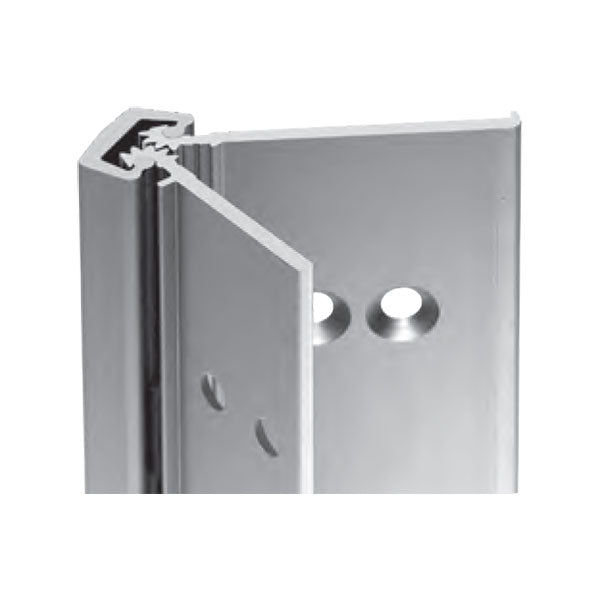

Select SL44 HD600 Heavy Duty Concealed Geared Continuous Hinge

$146.19
Usually Ships:  2-3 Business Days

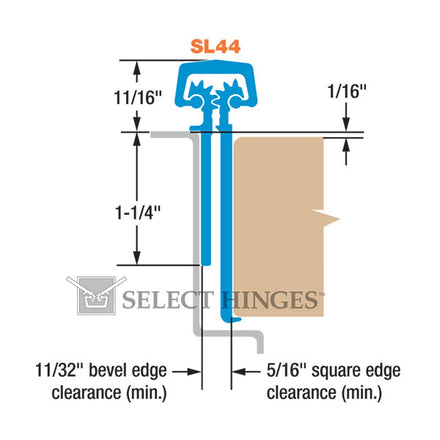

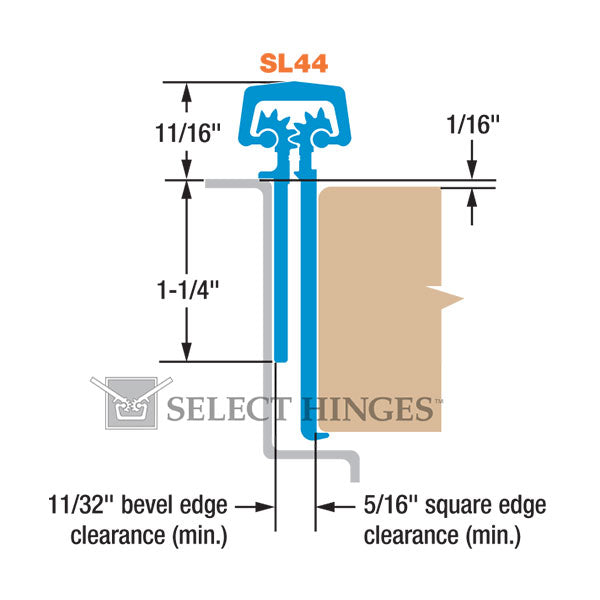

  • 1/16" door inset, for 1-3/4" thick doors
  • Door edge protector
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

  • Door edge protector
  • 1/16" door inset
  • For 1-3/4" doors
  • SL44 HD600 geared continuous hinges are BHMA Grade 1 certified
  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Dark Bronze Anodized Aluminum, Clear Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

Load / Frequency

For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty 600 — For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1

Fire-Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy American Act - Made in USA
